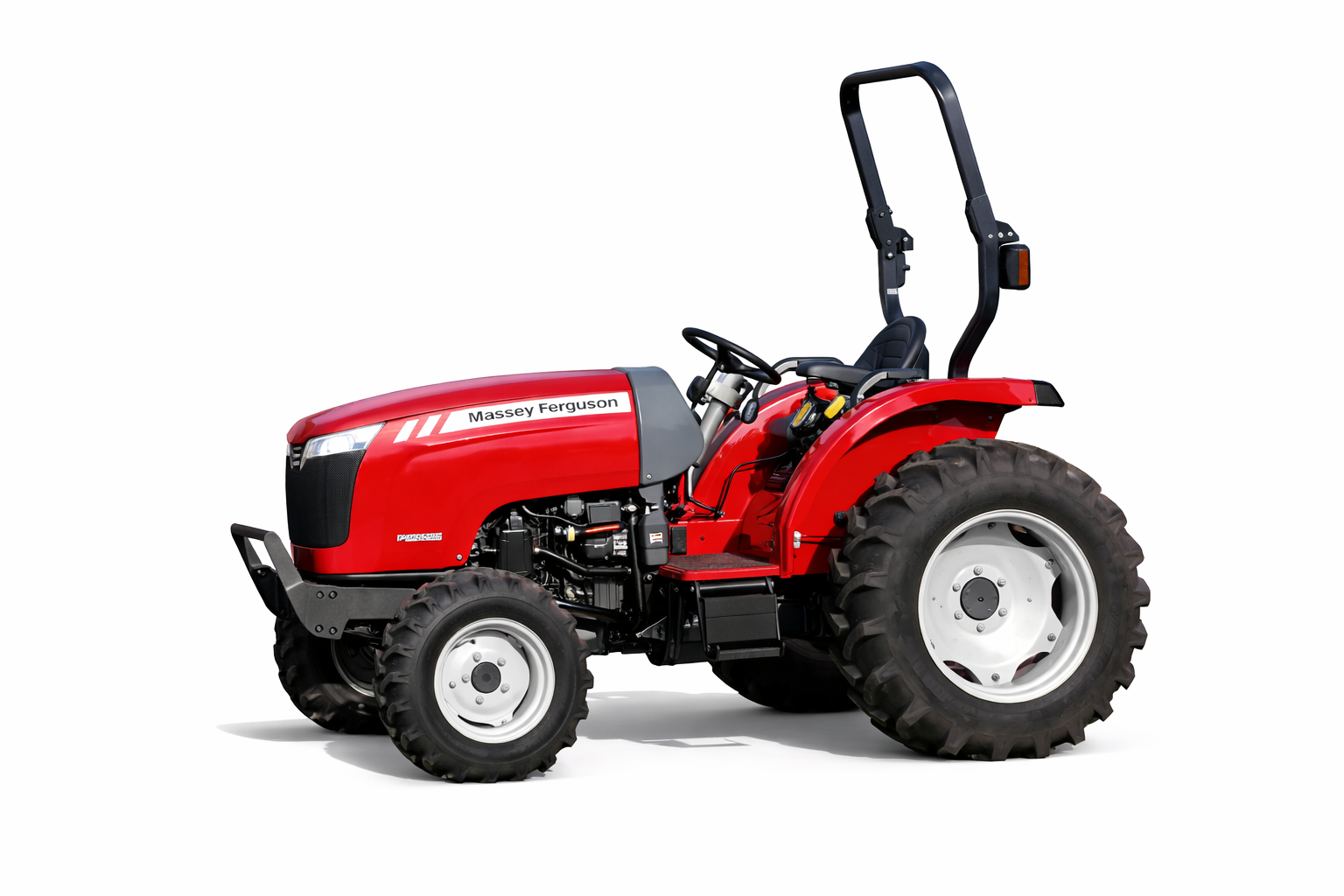

🚜 Massey Ferguson 1736 – 1700 Series Compact Utility Tractor (2013–2018)
🔎 Overview
| Category | Details |
|---|---|
| Model | Massey Ferguson 1736 |
| Series | 1700 Series |
| Production | 2013 – 2018 |
| Manufacturer | Massey Ferguson |
| Tractor Type | Compact Utility Tractor |
| Drive | 4WD |
| Original Price (2018) | $23,428 (Shuttle, ROPS) |
| Cab Option | Available with A/C |
Series Position
| Previous Model | Model | Next Model |
|---|---|---|
| 1635 (2009–2013) | 1736 | 1735M (2018–2025) |
The 1736 later evolved into the 1735M model with further refinements.
🔧 Engine Specifications
The 1736 is powered by a reliable Mitsubishi diesel engine, offering strong torque and durability.
| Item | Specification |
|---|---|
| Engine Manufacturer | Mitsubishi |
| Engine Type | 3-cylinder diesel |
| Displacement | 1.7 L |
| Fuel Tank Capacity | 10.6 gal (40.1 L) |
| Rated Engine Power | 36.2 hp (27.0 kW) |
PTO Power
| Item | Output |
|---|---|
| PTO (claimed) | 27.5 hp (20.5 kW) |
The Mitsubishi engine provides consistent performance for PTO-driven implements.
⚙ Transmission Options
| Type | Description |
|---|---|
| 12-Speed Power Shuttle | Electro-hydraulic forward/reverse |
| Hydrostatic (HST) | Smooth variable speed control |
The power shuttle system increases productivity for loader work and repetitive forward/reverse tasks.
💪 Mechanical Features
| Feature | Specification |
|---|---|
| Drive System | Four-wheel drive |
| Final Drives | Bull gear |
| Steering | Power steering |
| Brakes | Wet disc |
| Safety | Folding ROPS or optional cab |
The optional air-conditioned cab enhances comfort during long working hours.
💧 Hydraulic System
The 1736 offers strong hydraulic performance for demanding applications.
| Item | Specification |
|---|---|
| Type | Open center gear pump |
| Rear Valves | 1 to 3 |
| SCV Flow | 11.6 gpm (43.9 lpm) |
This hydraulic capacity supports efficient loader and implement operation.
🔗 3-Point Hitch & PTO
| Item | Specification |
|---|---|
| Rear Hitch Type | Category I |
| Control | Position control |
| Draft Control | Optional |
| Rear Lift (24″/610mm) | 2535 lbs (1149 kg) |
| Rear PTO | Independent |
| PTO Clutch | Electro-hydraulic |
| PTO Speed | 540 RPM (1.375 in) |
| Mid PTO | Optional (2000 RPM) |
The electro-hydraulic PTO clutch allows smooth engagement and safer operation.
📏 Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 69.7 inches (177 cm) |
| Weight | 3362 – 3803 lbs |
| Front Tire | 8-16 |
| Rear Tire | 12.4-24 |
The heavier chassis improves stability for loader work and field applications.
🔧 Available Attachments
| Attachment | Compatibility |
|---|---|
| Front-End Loader | Fully compatible |
| Mid-Mount Mower | Optional |
| Rotary Cutter | 540 PTO |
| Box Blade | Category I |
The loader compatibility makes the 1736 suitable for material handling and farm maintenance tasks.
🔌 Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery | 12 Volts |
🌍 Why Choose the Massey Ferguson 1736?
✔ Proven 1.7L Mitsubishi diesel engine
✔ 36.2 HP output for demanding tasks
✔ Strong 2,535 lb rear lift capacity
✔ Electro-hydraulic PTO engagement
✔ Shuttle or hydrostatic transmission options
The Massey Ferguson 1736 is a durable and powerful compact tractor designed for professional farming and landscaping applications.
