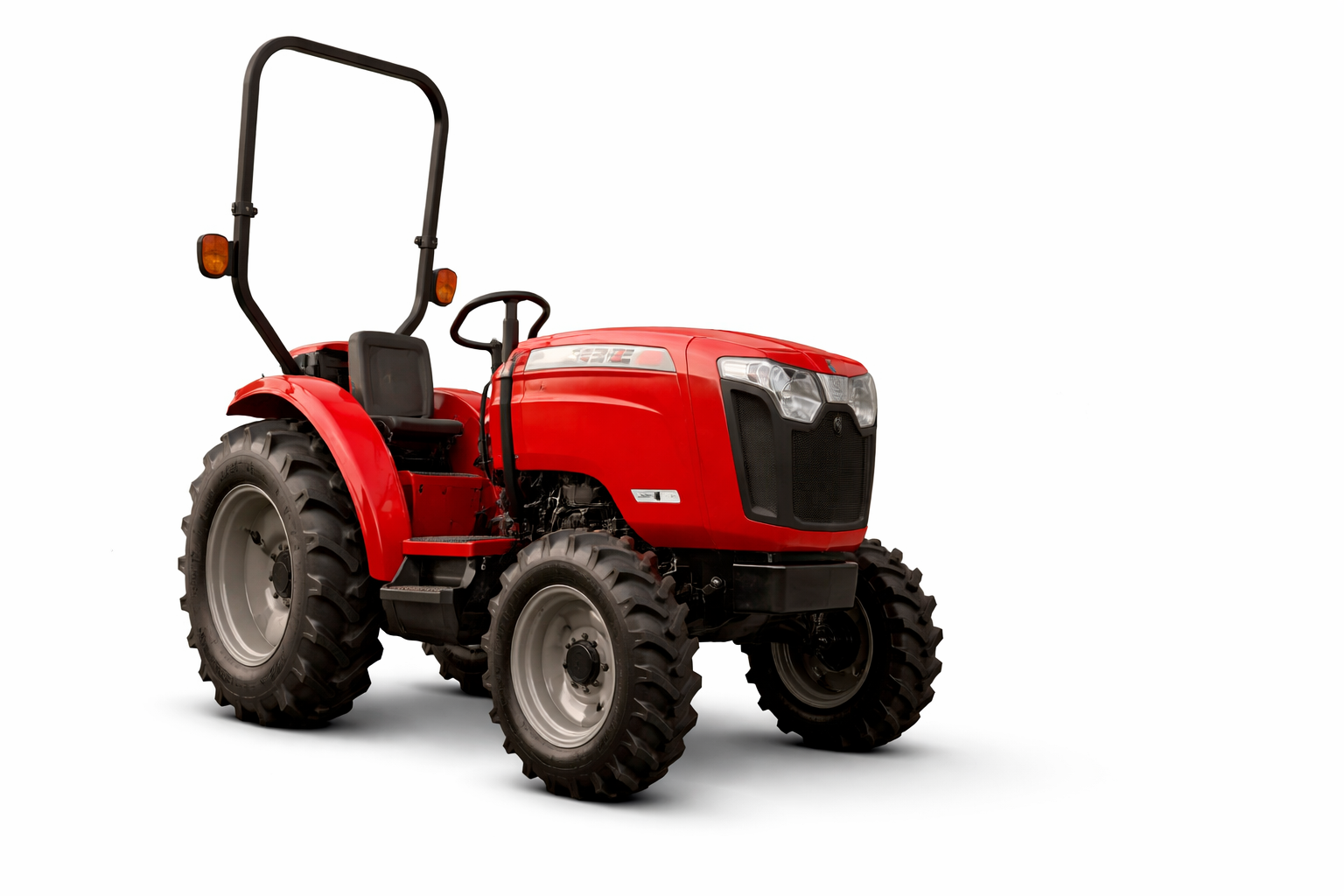

🚜 Massey Ferguson 1734E – 1700 Series Compact Utility Tractor
🔎 Overview
| Category | Details |
|---|---|
| Model | Massey Ferguson 1734E |
| Series | 1700 Series |
| Production | 2013 – Present |
| Manufacturer | Massey Ferguson (AGCO Group) |
| Tractor Type | Compact Utility Tractor |
| Drive Options | 2WD or 4WD |
| ROPS | Two-post folding |
1700 Series Lineup
| Model | Engine Power |
|---|---|
| 1726E | 24.0 HP |
| 1734E | 34.0 HP |
| 1739E | 39.5 HP |
The 1734E offers increased horsepower and lifting capacity, making it ideal for heavier loader work and PTO-driven implements.
🔧 Engine Specifications
The 1734E is equipped with a reliable Shibaura diesel engine known for durability and fuel efficiency.
| Item | Specification |
|---|---|
| Engine Manufacturer | Shibaura |
| Engine Type | 3-cylinder diesel |
| Displacement | 1.5 L |
| Cooling | Liquid-cooled |
| Rated Engine Power | 34 hp (25.4 kW) |
PTO Power
| Transmission Type | PTO Output |
|---|---|
| Gear | 29 hp (21.6 kW) |
| Hydrostatic | 27.2 hp (20.3 kW) |
The strong PTO output supports rotary cutters, tillers, mowers, and other farm attachments.
⚙ Transmission Options
| Type | Description |
|---|---|
| 9-Speed Gear | Durable manual transmission |
| Hydrostatic (HST) | Smooth variable speed control |
Hydrostatic transmission provides easy operation for loader and landscaping tasks, while gear transmission ensures efficient power transfer for field use.
💪 Mechanical Features
| Feature | Specification |
|---|---|
| Drive System | 2WD or 4WD |
| Final Drives | Bull gear |
| Differential Lock | Rear standard |
| Steering | Hydrostatic power steering |
| Brakes | Wet disc |
| Safety | Foldable ROPS |
These features ensure strong traction, safe operation, and long-term reliability.
💧 Hydraulic System
| Item | Specification |
|---|---|
| Type | Open center gear pump |
| SCV Flow | 6.7 gpm (25.4 lpm) |
| Steering Flow | 3.8 gpm (14.4 lpm) |
| Total Flow | 10.5 gpm (39.7 lpm) |
The hydraulic capacity supports front-end loader applications and various rear implements.
🔗 3-Point Hitch & PTO
| Item | Specification |
|---|---|
| Rear Hitch Type | Category I |
| Lift Capacity (at ends) | 2205 lbs (1000 kg) |
| Lift Capacity (24″/610mm) | 1598 lbs (724 kg) |
| Rear PTO Type | 540 RPM (1.375 in) |
| PTO Type | Live PTO |
| PTO Speed | 540 @ 2455 engine RPM |
| Clutch | Over-running |
This configuration allows safe and efficient use of PTO-driven implements.
📏 Dimensions & Weight
| Item | Specification |
|---|---|
| Wheelbase | 65.9 inches (167 cm) |
| Weight | 2734 – 2745 lbs |
| Tire Options | Agricultural / Turf / Industrial |
The balanced weight and compact dimensions ensure stability while maintaining maneuverability.
🔌 Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery | 12 Volts |
🔧 Available Attachments
| Attachment | Compatibility |
|---|---|
| Front-End Loader | Fully compatible |
| Rotary Cutter | Category I |
| Box Blade | Category I |
| Tiller | 540 PTO |
The front-end loader option significantly increases productivity for material handling and farm maintenance.
🌍 Why Choose the Massey Ferguson 1734E?
✔ Higher 34HP output for demanding tasks
✔ Multiple transmission choices
✔ Strong 3-point lift capacity
✔ Reliable Shibaura diesel engine
✔ Ideal for farming, landscaping & property management
The Massey Ferguson 1734E combines power, durability, and efficiency, making it a dependable compact tractor for global agricultural needs.
