New Holland TD95D – 90HP Utility Tractor
TDD Series | 2002–2008 | Built in Turkey
🌍 Overview
The New Holland TD95D is the top model in the early TDD Series lineup, delivering 90 horsepower for demanding agricultural applications. Produced from 2002 to 2008 (model years 2002–2006 for early production), it was distributed worldwide by New Holland Agriculture and manufactured by TürkTraktör in Ankara, Turkey.
Designed for heavy fieldwork, baling, tillage, and transport operations, the TD95D combines mechanical reliability with strong hydraulic performance. It sits above the TD85D in the series and offers improved PTO output and overall working capacity.
Since 2006, EVERY FARM TRACTOR has supplied tractors and agricultural machinery to over 100 countries worldwide.
🔧 Engine Specifications
| Item | Specification |
|---|---|
| Engine Manufacturer | Iveco |
| Engine Type | 4-cylinder diesel |
| Displacement | 3.9 L (239 cu in) |
| Rated Engine Power | 90 hp (67.1 kW) |
| PTO Power (claimed) | 80 hp (59.7 kW) |
| Aspiration | Naturally aspirated |
| Fuel Tank Capacity | 23.8 gal (90.1 L) |
The Iveco 3.9L diesel engine delivers strong torque for heavy-duty operations while maintaining dependable fuel efficiency.
⚙️ Transmission Options
| Type | Description |
|---|---|
| 12-speed Mechanical Shuttle | Reliable transmission for general farming |
| 20-speed Mechanical Shuttle with Creeper | Added low-speed precision for specialized work |
The shuttle transmission allows smooth directional changes, ideal for loader work and repetitive field tasks.
💪 Power & Mechanical Features
| Category | Specification |
|---|---|
| Drive Options | 2WD (4×2) |
| 4WD (MFWD optional) | |
| Steering | Hydrostatic power steering |
| Brakes | Mechanical wet disc brakes |
| ROPS | Two-post foldable ROPS |
| Cab Option | Heat & air-conditioning available |
| PTO | Independent |
| PTO Speeds | 540 RPM (1.375 in shaft) |
| Optional PTO | 540/1000 RPM |
The optional 4WD configuration improves traction in wet fields and heavy pulling conditions.
💧 Hydraulics
| Item | Specification |
|---|---|
| Type | Open center |
| Hydraulic Pressure | 2,755 psi (190 bar) |
| Remote Valves | 1–3 |
| Pump Flow | 13.6 gpm (51.5 lpm) |
| Steering Flow | 8.1 gpm (30.7 lpm) |
| Total Flow | 21.7 gpm (82.1 lpm) |
The hydraulic system supports loaders, balers, and larger Category II implements efficiently.
🛠️ Hitch & PTO
| Item | Specification |
|---|---|
| Rear Hitch Type | Category II |
| Hitch Control | Mechanical draft control |
| Rear Lift Capacity (24″/610mm) | 5,025 lbs (2,279 kg) |
| PTO Clutch | Mechanical dry clutch |
The Category II hitch ensures compatibility with heavy agricultural equipment.
📏 Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase (2WD) | 94 in (238 cm) |
| Wheelbase (4WD) | 92 in (233 cm) |
| Operating Weight | 6,107–7,320 lbs |
| Front Tire | 10.00-16 |
| Rear Tire (2WD) | 18.4R30 |
The extended wheelbase improves stability and traction during heavy draft work.
🔋 Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging Output | 65 amps |
| Battery | 12V |
| Battery CCA | 800 CCA |
📷 Photos

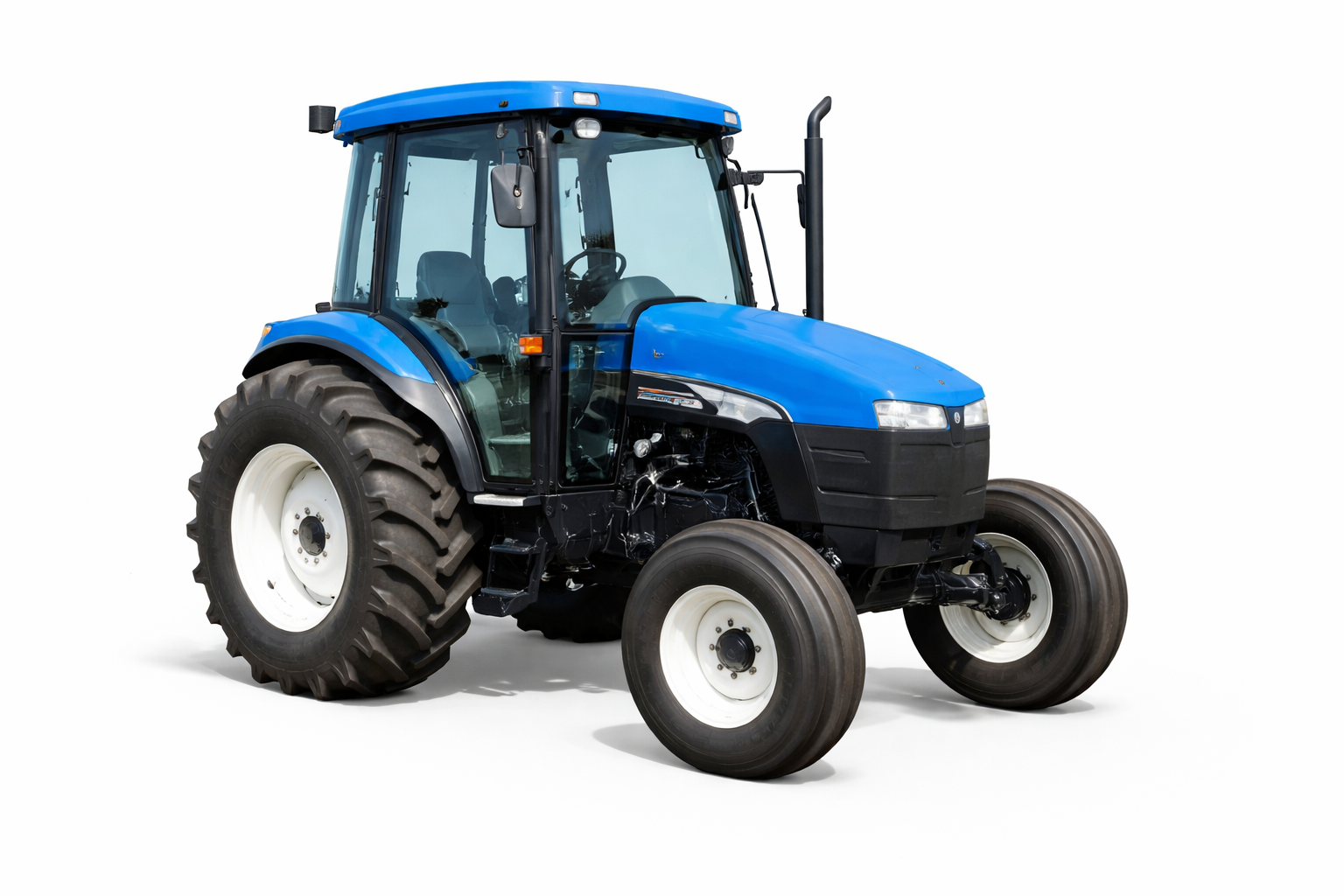

The TD95D was available in both ROPS and fully enclosed cab configurations and is frequently equipped with a front-end loader for multipurpose farm use.
