New Holland TD85D – 85HP Utility Tractor
TDD Series | 2002–2006 | Built in Turkey
🌍 Overview
The New Holland TD85D is a robust 85-horsepower utility tractor from the TDD Series. Produced between 2002 and 2006, it was distributed globally by New Holland Agriculture and manufactured by TürkTraktör in Ankara, Turkey.
Positioned between the TD75D and TD95D models, the TD85D offers increased engine output while maintaining the mechanical simplicity and reliability that the TDD Series is known for. It is ideal for heavy field operations, transport, livestock farming, and loader work.
Since 2006, EVERY FARM TRACTOR has exported tractors and agricultural machinery to more than 100 countries worldwide.
🔧 Engine Specifications
| Item | Specification |
|---|---|
| Engine Manufacturer | Iveco |
| Engine Type | 4-cylinder diesel |
| Displacement | 3.9 L (239 cu in) |
| Rated Engine Power | 85 hp (63.4 kW) |
| Aspiration | Naturally aspirated |
| Fuel Tank Capacity | 23.8 gal (90.1 L) |
The Iveco 3.9L diesel engine delivers strong torque and consistent performance under heavy loads, making it suitable for plowing, baling, and transport duties.
⚙️ Transmission Options
| Type | Description |
|---|---|
| 12-speed Mechanical Synchro Shuttle | 3 ranges, smooth directional control |
| 20-speed Shuttle with Creeper | Low-speed precision for specialty operations |
The shuttle system improves efficiency in loader and yard applications by allowing quick forward-reverse shifts.
💪 Power & Mechanical Features
| Category | Specification |
|---|---|
| Drive Options | 2WD (4×2) |
| 4WD (MFWD optional) | |
| Brakes | Wet disc brakes |
| Steering | Hydrostatic power steering |
| ROPS | Standard ROPS |
| Cab Option | Available with air-conditioning |
| PTO | Rear independent |
| PTO Speeds | 540 RPM |
| 540/1000 RPM (optional) |
The optional 4WD version enhances traction in challenging field conditions.
🛠️ PTO & Hitch
| Item | Specification |
|---|---|
| Rear PTO Type | 540 RPM |
| Optional PTO | 540/1000 RPM |
| Hitch Category | Category II (typical for class) |
The Category II hitch supports larger implements compared to compact models.
📏 Dimensions & Tires
(Specifications vary depending on 2WD or 4WD configuration)
| Item | Specification |
|---|---|
| Weight (approx.) | 5,700–6,900 lbs |
| Front Tire | 10.00-16 |
| Rear Tire | 16.9-30 |
The long wheelbase and durable chassis provide excellent field stability and pulling power.
🔋 Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery Voltage | 12V |
📷 Photos

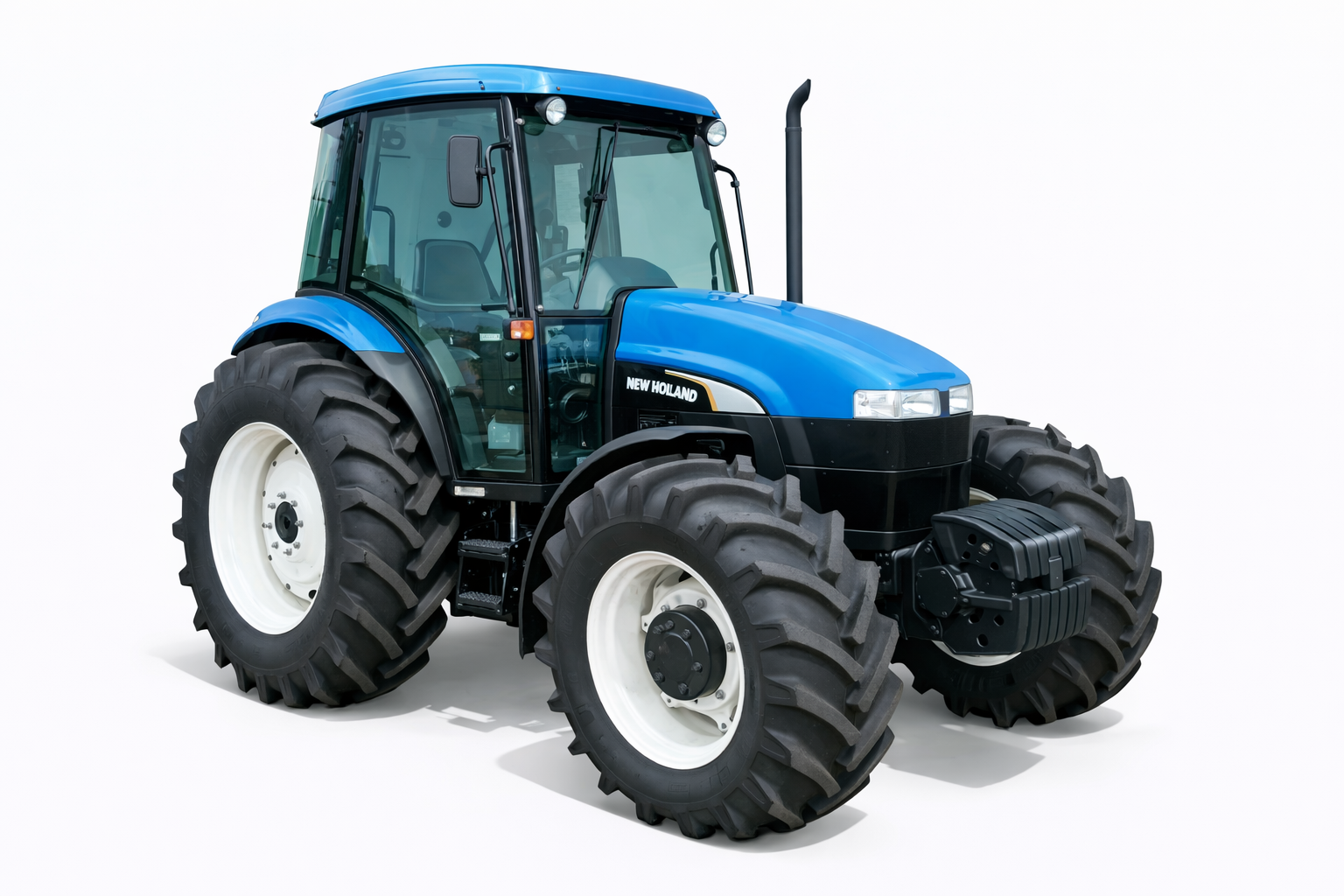

The TD85D is commonly available in both ROPS and fully enclosed cab versions, and is often equipped with a front-end loader for multipurpose farm use.
