New Holland TD80D – 72HP Utility Tractor
TDD Series | 2007–2008 | Built in Turkey
🌍 Overview
The New Holland TD80D is a dependable 72-horsepower utility tractor from the TDD Series. Produced between 2007 and 2008, it was distributed globally by New Holland Agriculture and manufactured by TürkTraktör in Ankara, Turkey.
Positioned above the TD75D and below the TD95D, the TD80D offers a balanced combination of power, hydraulic strength, and mechanical simplicity. It is well-suited for crop farming, livestock operations, transport work, and loader applications.
Since 2006, EVERY FARM TRACTOR has exported quality tractors and agricultural equipment to over 100 countries worldwide.
🔧 Engine Specifications
| Item | Specification |
|---|---|
| Engine Manufacturer | Iveco |
| Engine Type | 4-cylinder diesel |
| Displacement | 3.9 L (239 cu in) |
| Rated Gross Power | 72 hp (53.7 kW) |
| PTO Power (claimed) | 62 hp (46.2 kW) |
| Fuel Tank Capacity | 23.8 gal (90.1 L) |
The Iveco 3.9L diesel engine delivers strong torque for plowing, baling, and transport duties, while maintaining fuel efficiency and long-term durability.
⚙️ Transmission Options
| Type | Description |
|---|---|
| 12-speed Mechanical Shuttle | Standard transmission for general farm use |
| 20-speed Creeper | Enhanced low-speed control for precision operations |
The mechanical shuttle allows smooth directional changes, ideal for loader and yard work.
💪 Power & Mechanical Features
| Category | Specification |
|---|---|
| Drive Options | 2WD (4×2) |
| 4WD (MFWD optional) | |
| Steering | Hydrostatic power steering |
| Brakes | Hydraulic wet disc brakes |
| PTO | Independent |
| PTO Type | 540 RPM (1.375 in shaft) |
| PTO Clutch | Mechanical dry disc |
| ROPS | Two-post foldable ROPS |
| Cab Option | Heat & air-conditioning available |
The 4WD version improves traction in wet or uneven terrain.
💧 Hydraulics
| Item | Specification |
|---|---|
| Type | Open center |
| Hydraulic Pressure | 2,755 psi (190 bar) |
| Rear Valves | 2–3 |
| Mid Valves | 0–2 optional |
| Pump Flow | 13.6 gpm (51.5 lpm) |
| Steering Flow | 8.1 gpm (30.7 lpm) |
| Total Flow | 21.7 gpm (82.1 lpm) |
The strong hydraulic capacity supports loaders, balers, and other heavy implements.
🛠️ Hitch & PTO
| Item | Specification |
|---|---|
| Rear Hitch Type | Category II |
| Hitch Control | Mechanical draft control |
| Rear Lift Capacity | 5,025 lbs (2,279 kg) |
The Category II hitch allows use of larger implements compared to compact tractors.
📏 Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase (2WD) | 91 in (231 cm) |
| Wheelbase (4WD) | 87 in (220 cm) |
| Weight | 5,702–6,915 lbs |
| Front Tire | 10.00-16 |
| Rear Tire (2WD) | 16.9-30 |
The long wheelbase enhances field stability and pulling performance.
💲 Original Pricing (USA)
| Year | Original Price |
|---|---|
| 2007 | $19,600 |
| 2008 | $21,100 |
🔋 Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 65 amps |
| Battery | 12V |
| Battery CCA | 800 CCA |
📷 Photos

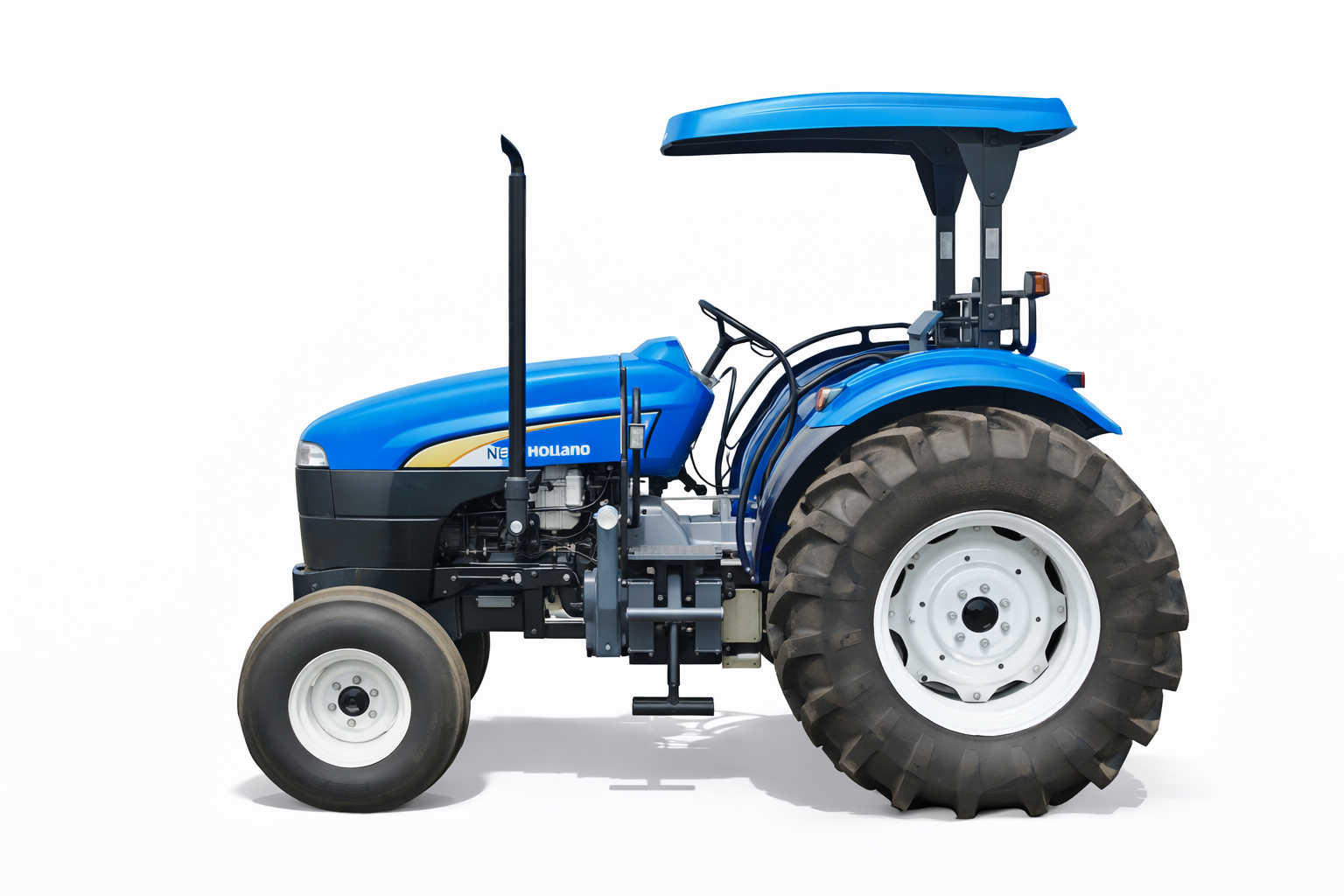

The TD80D was available in ROPS or fully enclosed cab versions and is often seen equipped with a front-end loader for versatile farm use.
For current stock availability and export inquiries, contact EVERY FARM TRACTOR directly.
