New Holland TD75D – 72HP Utility Tractor
TDD Series | 2002–2006 | Built in Turkey
🌍 Overview
The New Holland TD75D is a reliable 72-horsepower utility tractor from the TDD Series, produced between 2002 and 2006. Distributed globally by New Holland Agriculture and manufactured by TürkTraktör in Ankara, Turkey, the TD75D is designed for fieldwork, livestock farming, transport, and general agricultural applications.
Positioned between the TD75D and TD85D in the lineup, this model delivers strong torque, durable construction, and excellent hydraulic capacity.
Since 2006, EVERY FARM TRACTOR has exported tractors and agricultural machinery to over 100 countries worldwide, supporting farmers with reliable equipment.
🔧 Engine Specifications
| Item | Specification |
|---|---|
| Engine Manufacturer | Iveco |
| Engine Type | 4-cylinder diesel |
| Displacement | 3.9 L (239 cu in) |
| Aspiration | Naturally aspirated |
| Rated Engine Power | 72 hp (53.7 kW) |
| PTO Power (claimed) | 62 hp (46.2 kW) |
| Fuel Tank Capacity | 23.8 gal (90.1 L) |
The Iveco 3.9L diesel engine is known for durability, strong low-end torque, and fuel efficiency — ideal for heavy draft work and long operating hours.
⚙️ Transmission Options
| Type | Description |
|---|---|
| 12-speed Mechanical Shuttle | Standard gearbox with shuttle lever |
| 20-speed Mechanical Shuttle with Creeper | Enhanced low-speed precision for planting and specialty operations |
The creeper transmission option is particularly useful for vegetable farming and precise implement work.
💪 Power & Mechanical Features
| Category | Specification |
|---|---|
| Drive Options | 2WD (4×2) or 4WD (MFWD optional) |
| Steering | Hydrostatic power steering |
| Brakes | Mechanical wet disc brakes |
| ROPS | Two-post foldable ROPS |
| Cab Option | Heat & Air-conditioning available |
| PTO | Independent |
| PTO Type | 540 RPM (1.375 in shaft) |
| PTO Clutch | Mechanical dry clutch |
The 4WD version improves traction for heavy soil and loader operations.
💧 Hydraulics
| Item | Specification |
|---|---|
| Type | Open center |
| Hydraulic Pressure | 2,755 psi (190 bar) |
| Remote Valves | 1–3 |
| Pump Flow | 13.6 gpm (51.5 lpm) |
| Steering Flow | 8.1 gpm (30.7 lpm) |
| Total Flow | 21.7 gpm (82.1 lpm) |
Strong hydraulic output ensures efficient loader and implement performance.
🛠️ Hitch & PTO
| Item | Specification |
|---|---|
| Rear Hitch Type | Category II |
| Hitch Control | Mechanical draft control |
| Rear Lift Capacity | 5,025 lbs (2,279 kg) |
The high lift capacity allows operation of heavy plows, cultivators, and balers.
📏 Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase (2WD) | 91 in (231 cm) |
| Wheelbase (4WD) | 87 in (220 cm) |
| Weight | 5,702–6,915 lbs |
| Front Tire | 10.00-16 |
| Rear Tire (2WD) | 16.9-30 |
The longer wheelbase enhances field stability and towing capability.
🔋 Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | 65 amps |
| Battery | 12V |
| Battery CCA | 800 CCA |
📷 Photos

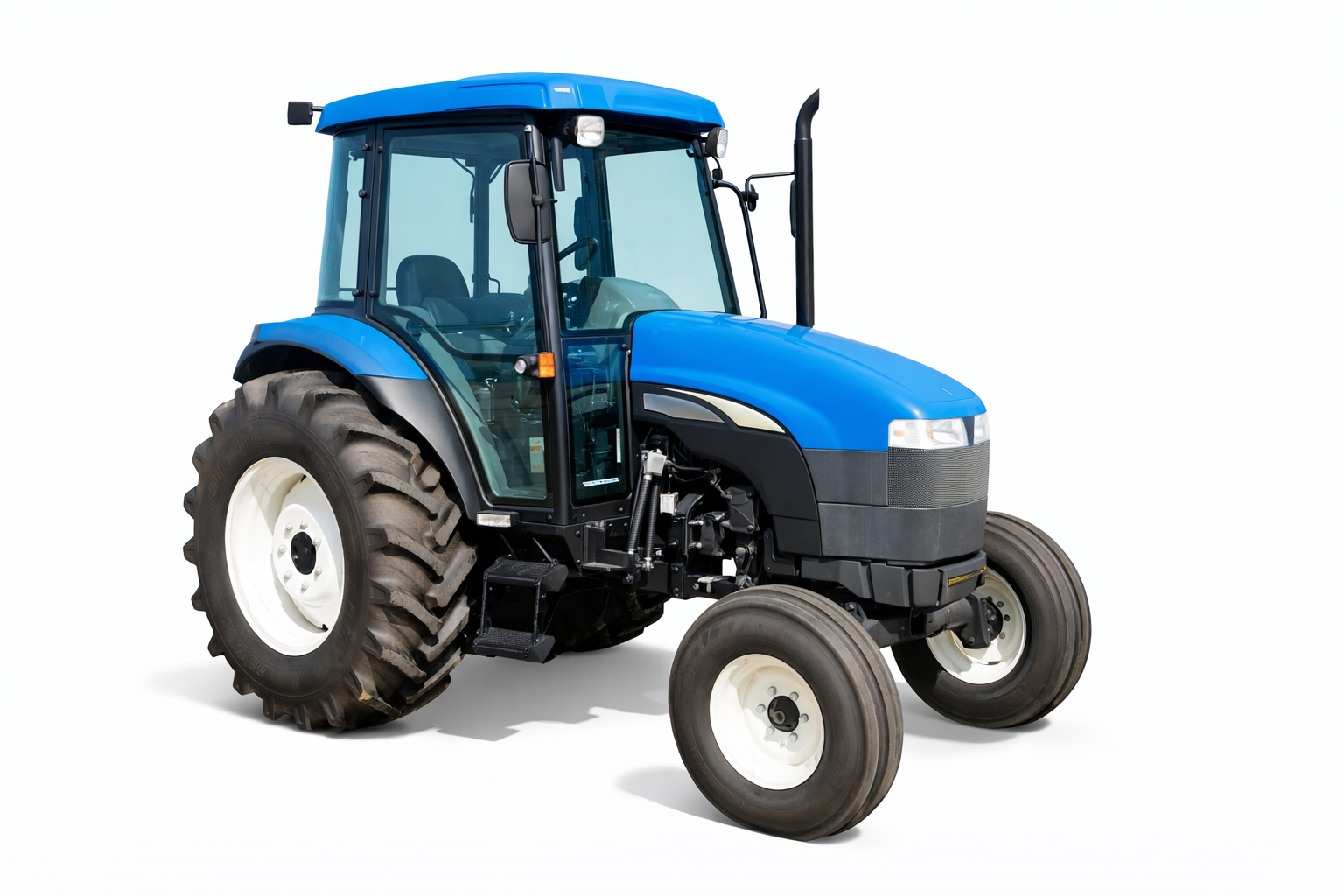

The TD75D is available in both ROPS and cab configurations, with optional 4WD and loader compatibility.
