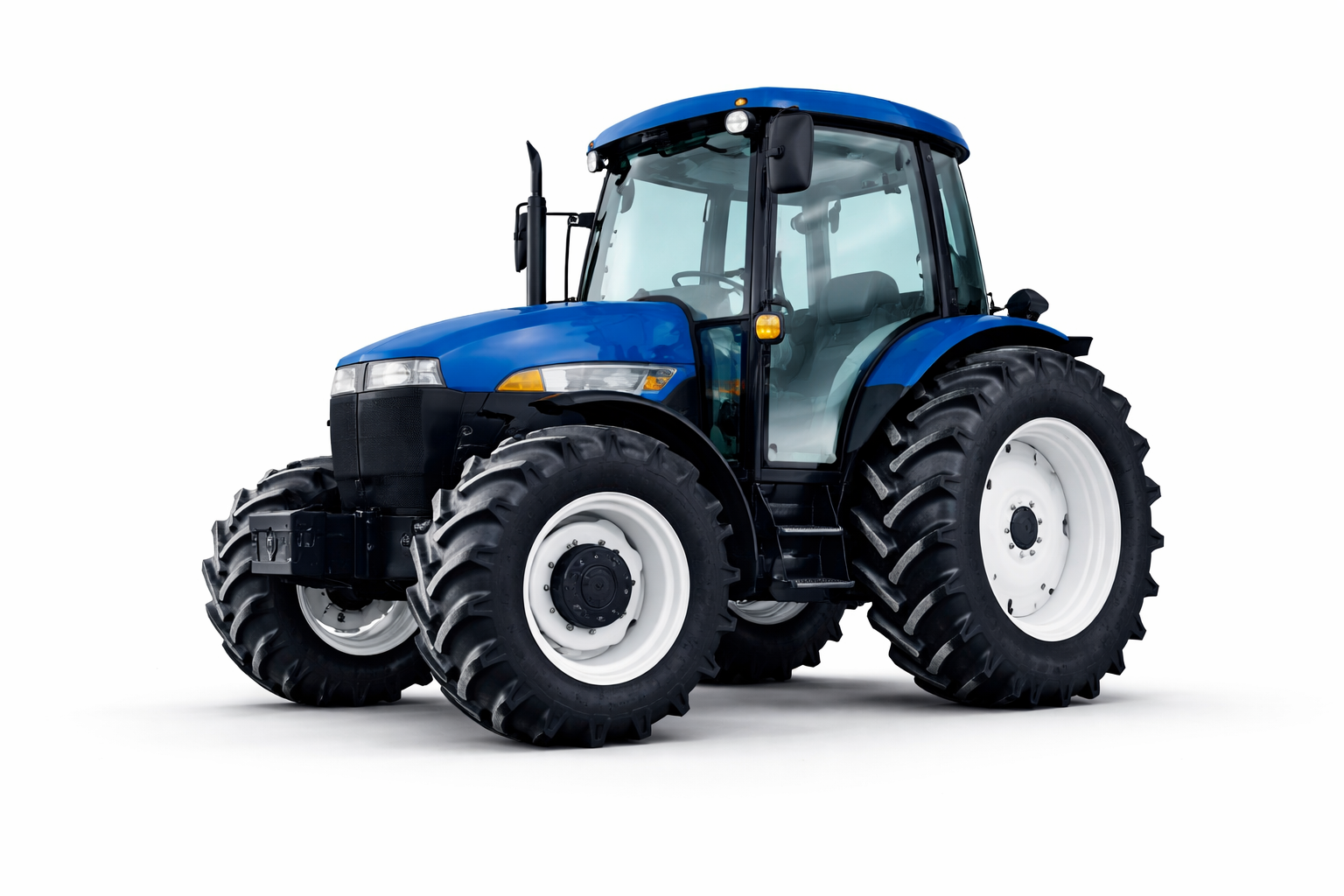

New Holland TD5030 – 82HP Utility Tractor
TD5000 Series | Built in Turkey | Heavy-Duty Farm Performance
🌍 Overview
The New Holland TD5030 is a powerful and reliable utility tractor from the TD5000 Series. Manufactured by TürkTraktör in Ankara, Turkey and distributed globally by New Holland Agriculture, the TD5030 was designed for farmers who require durability, strong hydraulics, and dependable field performance.
Positioned between the TD5020 and TD5040 models, this 82HP tractor delivers excellent PTO output and robust mechanical simplicity, making it ideal for plowing, hauling, loader work, and general farm operations.
Since 2006, EVERY FARM TRACTOR has exported quality Japanese and international tractors to more than 100 countries worldwide.
🔧 Engine Specifications
| Item | Specification |
|---|---|
| Engine Manufacturer | FPT (Iveco) |
| Engine Type | 4-cylinder diesel |
| Displacement | 3.2 L (195 cu in) |
| Rated Gross Power | 82 hp (61.1 kW) |
| Drawbar Power (tested) | 59.7 hp (44.5 kW) |
| PTO Power (tested) | 72.1 hp (53.8 kW) |
| Fuel Tank Capacity | 23.8 gal (90.1 L) |
| Optional Fuel Tank | 31.2 gal (118.1 L) |
The 3.2L FPT diesel engine provides strong torque output and fuel efficiency for extended field work.
⚙️ Transmission Options
| Transmission Type | Description |
|---|---|
| 12-speed Manual | Standard gear transmission |
| 12-speed Partially Synchronized Mechanical Shuttle | Smooth direction changes |
| 12-speed Partially Synchronized Power Shuttle | Clutchless shuttle shifting |
| 20-speed Creeper | Ultra-low speed precision control |
The availability of both mechanical and power shuttle options improves productivity during loader and repetitive tasks.
💪 Mechanical & Drive System
| Feature | Specification |
|---|---|
| Drive Options | 4×2 (2WD) |
| 4×4 MFWD (optional) | |
| Steering | Hydrostatic power steering |
| Differential Lock | Optional electro-hydraulic rear diff lock |
| Front Differential | Limited slip (optional) |
| Cab | Standard cab |
| Air Conditioning | Optional |
| ROPS | Optional configuration |
The MFWD (4WD) version enhances traction and stability in challenging field conditions.
💧 Hydraulic System
| Item | Specification |
|---|---|
| Hydraulic Type | Open center |
| Rear Valves | 1 to 4 |
| Pump Flow | 11.89 gpm (45.0 lpm) |
| MegaFlow Option | 16.11 gpm (61.0 lpm) |
The MegaFlow hydraulic option provides higher output for demanding loader or implement applications.
🛠️ PTO System
| Item | Specification |
|---|---|
| Rear PTO | Independent |
| PTO Types | 540 / 540E / Ground |
| Optional PTO | 540 only |
| Optional PTO | 540 / 1000 |
The independent PTO system allows efficient operation of balers, mowers, and other PTO-driven implements.
📏 Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase (2WD) | 89.8 in (228 cm) |
| Wheelbase (4WD) | 87.6 in (222 cm) |
| Operating Weight | 6,393 – 7,981 lbs |
| Front Tire | 7.50-16 |
| Rear Tire (2WD) | 16.9R30 |
The TD5030 balances weight and maneuverability, offering stability during heavy-duty work.
🔩 Attachments
| Compatible Attachments |
|---|
| Front-end loader |
Loader compatibility makes this tractor suitable for material handling, livestock farms, and mixed agriculture.
🔋 Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Battery | 12V |
🧪 Performance Testing
Independent testing confirms:
-
72.1 PTO horsepower
-
59.7 drawbar horsepower
-
Stable hydraulic output under continuous load
These results demonstrate the TD5030’s strong field capability and efficient power transfer.
