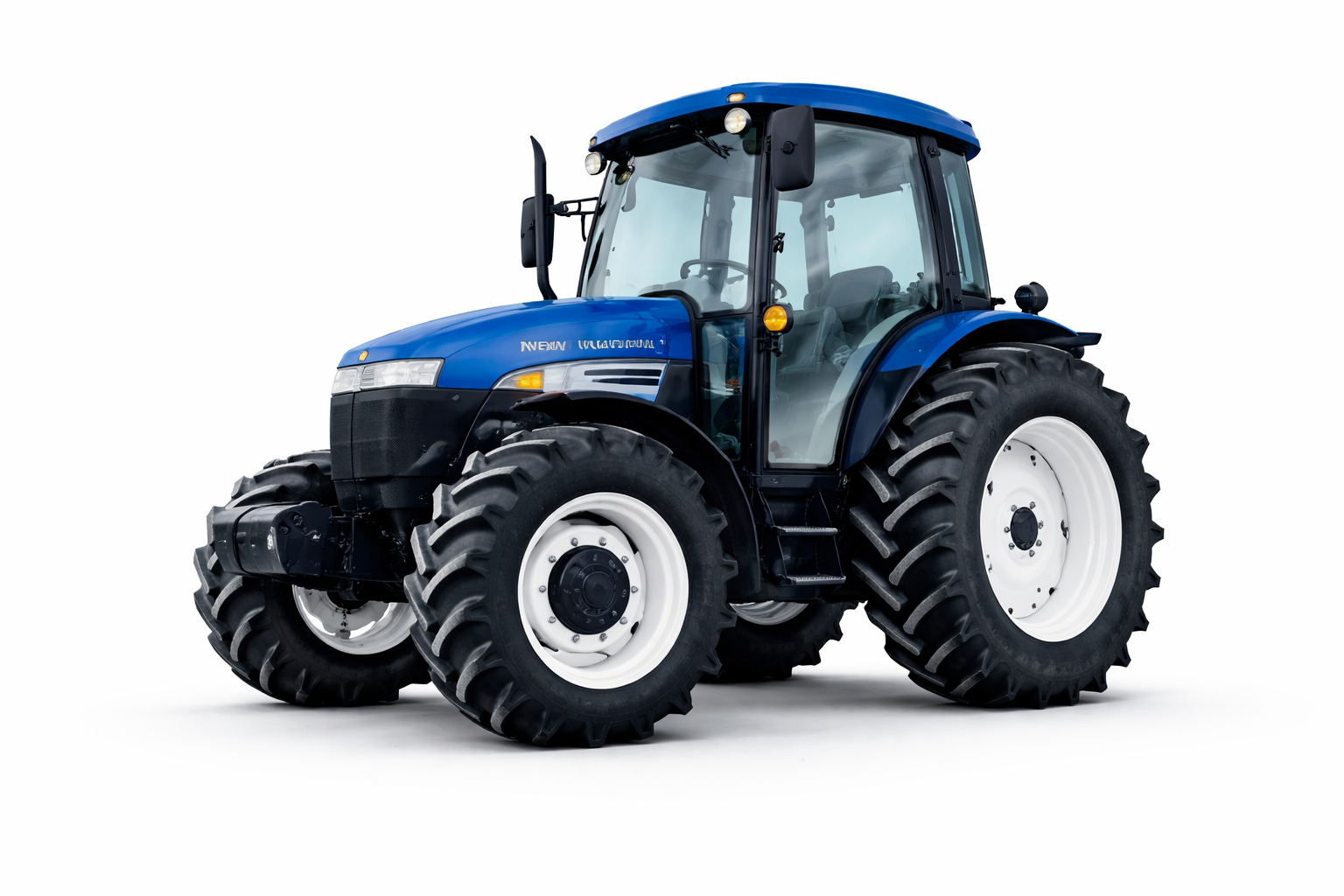

New Holland TD5030 – 82HP Utility Tractor
TD5000 Series | 2008–2014 | Built in Turkey
🌍 Overview
The New Holland TD5030 is a powerful and versatile 82-horsepower model from the TD5000 Series. Produced from 2008 to 2014, it was manufactured by TürkTraktör in Ankara, Turkey and distributed globally by New Holland Agriculture.
Designed for medium to heavy agricultural operations, the TD5030 offers strong engine output, high hydraulic flow, and proven mechanical durability. It shares similarities with the Case IH Farmall 80 variant and is positioned below the TD5050 in the lineup.
Since 2006, EVERY FARM TRACTOR has exported tractors and agricultural equipment to over 100 countries worldwide.
🔧 Engine Specifications
| Item | Specification |
|---|---|
| Engine Manufacturer | Iveco |
| Engine Type | 4-cylinder diesel |
| Displacement | 3.2 L (195 cu in) |
| Rated Gross Power | 82 hp (61.1 kW) |
| PTO Power (claimed) | 62 hp (46.2 kW) |
| PTO Power (tested) | 72.1 hp (53.8 kW) |
| Drawbar Power (tested) | 59.7 hp (44.5 kW) |
| Fuel Tank Capacity | 23.8 gal (90.1 L) |
| Optional Fuel Tank | 30.8 gal (116.6 L) |
The 3.2L Iveco diesel engine delivers strong torque and reliable fuel efficiency for demanding farm operations.
⚙️ Transmission Options
| Type | Description |
|---|---|
| 12-speed Partially Synchronized Mechanical Shuttle | Smooth shifting with shuttle control |
| 20-speed Creeper | Precision low-speed control |
The shuttle transmission improves productivity during loader and repetitive field work.
💪 Power & Mechanical Features
| Category | Specification |
|---|---|
| Drive Options | 2WD |
| 4WD (optional MFWD) | |
| Steering | Power steering |
| Brakes | Hydraulic wet disc brakes |
| ROPS | Two-post ROPS |
| Cab | Optional cab with air-conditioning |
| Differential Lock | Mechanical |
The optional 4WD configuration enhances traction for heavy draft applications.
💧 Hydraulics
| Item | Specification |
|---|---|
| Type | Open center |
| Rear Remote Valves | 1–3 |
| Pump Flow | 16.1 gpm (60.9 lpm) |
| Steering Flow | 9.5 gpm (36.0 lpm) |
| Total Flow | 25.6 gpm (96.9 lpm) |
The high hydraulic flow supports loaders, balers, and heavy rear implements efficiently.
🛠️ Hitch & PTO
| Item | Specification |
|---|---|
| Rear Hitch Type | Category II |
| Hitch Control | Mechanical lower-link draft sensing |
| Rear Lift Capacity (24″/610mm) | 5,025 lbs (2,279 kg) |
| PTO | Independent |
| PTO Clutch | 11-inch mechanical dry disc |
| PTO Speed | 540 RPM (1.375 in shaft) |
The Category II hitch allows compatibility with larger agricultural implements.
📏 Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase (2WD) | 89.8 in (228 cm) |
| Wheelbase (4WD) | 87.6 in (222 cm) |
| Operating Weight | 6,393–7,980 lbs |
| Front Tire | 7.50-16 |
| Rear Tire (2WD) | 16.9R30 |
The TD5030 offers a balanced combination of maneuverability and field stability.
🔩 Attachments
| Attachment |
|---|
| Front-end loader |
Loader compatibility makes the TD5030 suitable for multi-purpose agricultural and material handling work.
🔋 Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 120 amps |
| Battery | 12V |
| Battery CCA | 800 CCA |
🧪 Performance Testing
Independent testing recorded:
-
72.1 PTO horsepower
-
59.7 drawbar horsepower
-
Stable hydraulic output under continuous load
These results confirm the TD5030’s capability in heavy-duty field operations.
