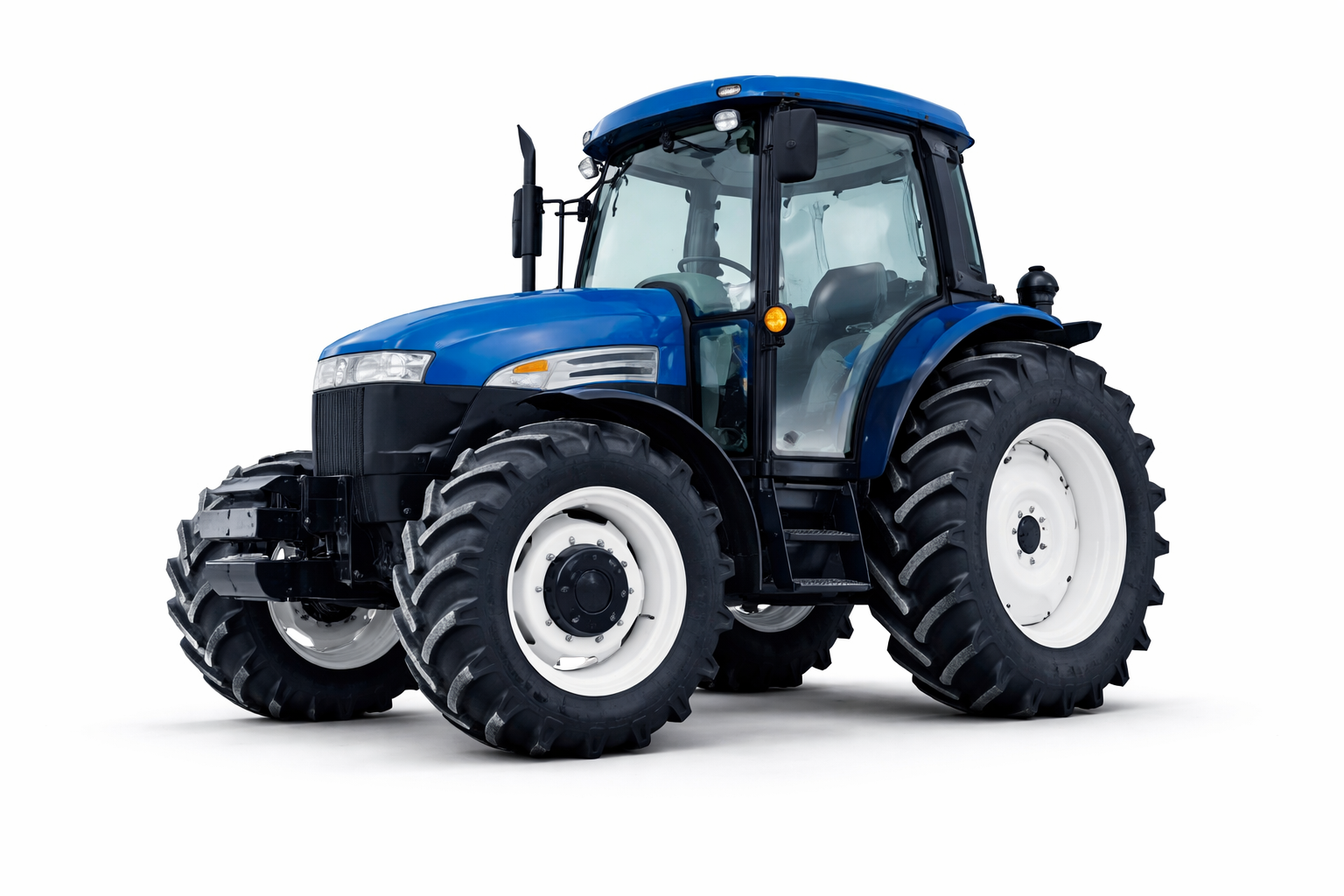

New Holland TD5010 – 60HP Utility Tractor
TD5000 Series | 2009– | Built in Turkey
🌍 Overview
The New Holland TD5010 is a modern 60-horsepower utility tractor from the TD5000 Series. Introduced in 2009 and manufactured by TürkTraktör in Ankara, Turkey, it was globally distributed by New Holland Agriculture.
Designed for small to mid-size farms, livestock operations, transport, and loader applications, the TD5010 combines a fuel-efficient FPT engine with flexible transmission options and strong hydraulic performance.
Since 2006, EVERY FARM TRACTOR has exported high-quality tractors and agricultural machinery to over 100 countries worldwide.
🔧 Engine Specifications
| Item | Specification |
|---|---|
| Engine Manufacturer | FPT (Fiat Powertrain Technologies) |
| Engine Type | 4-cylinder diesel |
| Displacement | 3.2 L (195 cu in) |
| Rated Gross Power | 60 hp (44.7 kW) |
| Fuel Tank Capacity | 23.8 gal (90.1 L) |
The 3.2L FPT diesel engine delivers smooth torque and improved fuel economy, making it ideal for long working hours and heavy field tasks.
⚙️ Transmission Options
| Type | Description |
|---|---|
| 12-speed | Standard transmission |
| 12-speed Partially Synchronized Mechanical Shuttle | Easier directional shifting |
| 20-speed Creeper | Precision low-speed operation |
The shuttle and creeper options make the TD5010 highly adaptable for planting, spraying, and loader work.
💪 Power & Mechanical Features
| Category | Specification |
|---|---|
| Drive Options | 2WD (4×2) |
| 4WD (MFWD optional) | |
| Differential Lock | Optional electro-hydraulic rear diff lock |
| Limited slip front differential | |
| Steering | Hydrostatic power steering |
| Cab | Standard cab |
| A/C | Optional air-conditioning |
| ROPS | Optional ROPS configuration |
The 4WD version enhances traction and stability in wet or uneven terrain.
💧 Hydraulics
| Item | Specification |
|---|---|
| Rear Remote Valves | 1–4 |
| Pump Flow (Standard) | 11.89 gpm (45.0 lpm) |
| Pump Flow (MegaFlow) | 16.11 gpm (61.0 lpm) |
The MegaFlow hydraulic option significantly improves loader and implement response speed.
🛠️ PTO Specifications
| Item | Specification |
|---|---|
| Rear PTO | Independent |
| PTO Speeds | 540 / 540E / Ground |
| Optional PTO | 540 |
| Optional PTO | 540 / 1000 RPM |
Multiple PTO configurations provide flexibility for various implements and applications.
📏 Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase (2WD) | 89.2 in (226 cm) |
| Wheelbase (4WD) | 87.6 in (222 cm) |
| Operating Weight | 5,997–7,584 lbs |
| Front Tire | 7.50-16 |
| Rear Tire (2WD) | 14.9R30 |
The compact yet stable chassis design ensures maneuverability and field stability.
🔩 Attachments
| Attachment |
|---|
| Front-end loader |
The TD5010 is commonly equipped with a front loader for versatile farm and material handling operations.
🔋 Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Battery | 12V |
📷 Photos
The TD5010 is typically available with a factory cab and loader-ready frame configuration. For stock availability and export details, contact EVERY FARM TRACTOR directly.
