Iseki TU175 Compact Utility Tractor
17.3HP Mitsubishi Diesel | Landhope TU5 Series
🚜 Overview – Iseki TU175

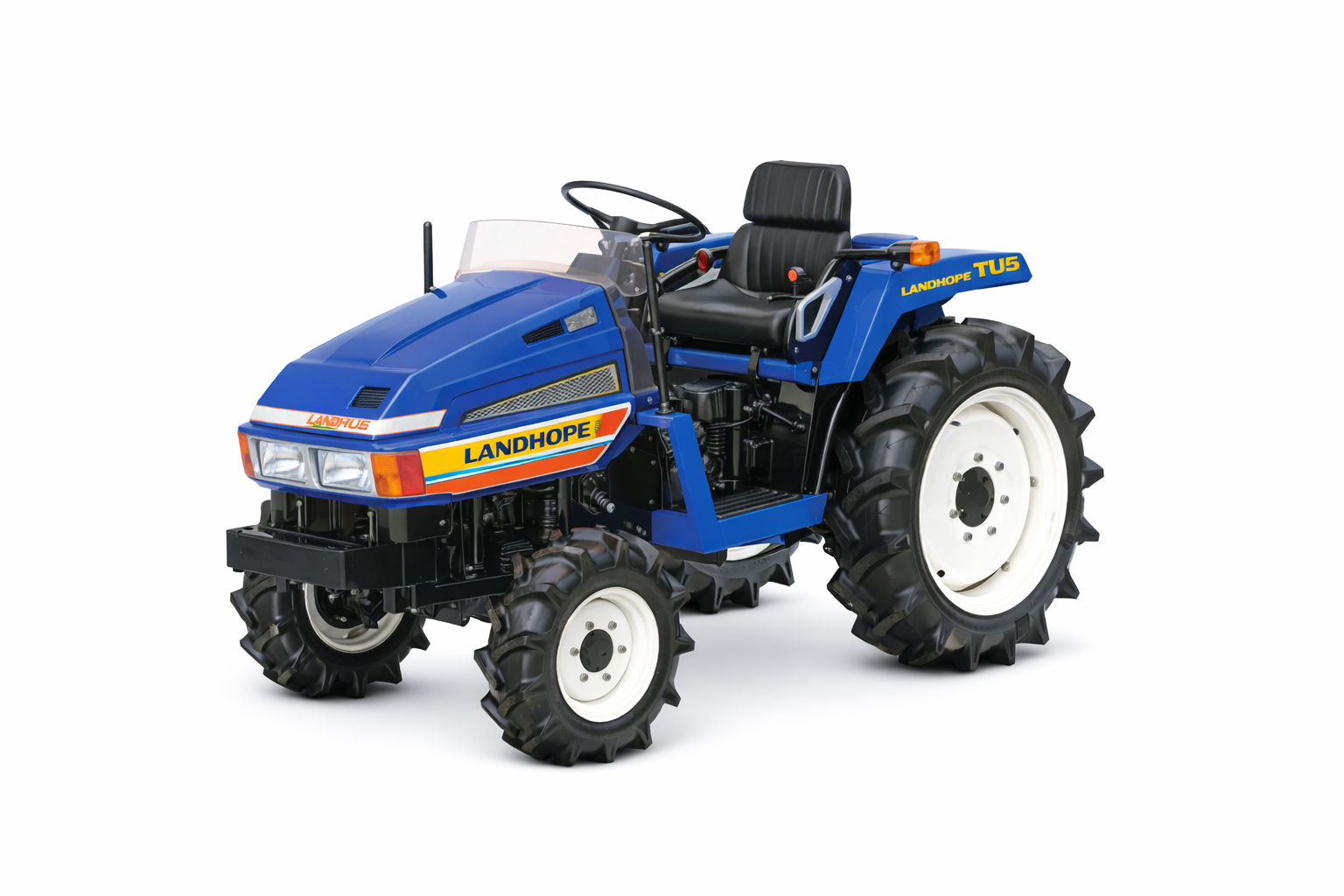

The Iseki & Co., Ltd. TU175 is a compact utility tractor produced between 1986 and 1990 as part of the Landhope TU5 Series.
As the higher-output model in the TU5 lineup, the TU175 delivers 17.3 horsepower while maintaining the compact frame and mechanical simplicity that define the TU series. It offers increased torque and improved PTO performance compared to the TU165.
This model is ideal for:
-
Rotary tilling and soil preparation
-
Orchard and vineyard work
-
Mowing and light field operations
-
Small-scale hauling
-
PTO-driven attachments
📌 Series Position
| Model | Production | Output |
|---|---|---|
| TU165 | 1986–1990 | 12.2 kW |
| TU175 | 1986–1990 | 12.9 kW |
| TU177 | 1989–1992 | 12.9 kW |
Series: Landhope TU5
Category: Compact Utility Tractor
Drive Options: 2WD / 4WD (TU175F)
⚙️ Engine Specifications
| Item | Specification |
|---|---|
| Engine Manufacturer | Mitsubishi |
| Engine Type | 3-cylinder diesel |
| Displacement | 1.0 L (approx. 1000 cc) |
| Cooling | Liquid-cooled |
| Rated Power | 17.3 hp (12.9 kW) |
| Fuel Tank Capacity | 4 gal (15.1 L) |
The Mitsubishi 1.0L diesel engine delivers strong torque and reliable power output, making it suitable for heavier PTO applications while remaining fuel-efficient.
🔄 Transmission
| Item | Specification |
|---|---|
| Type | Gear transmission |
| Speeds | 6 forward / 2 reverse |
| Clutch | Dry single plate |
| Drive | 2WD or 4WD |
The 6-speed gearbox allows smooth speed selection for fieldwork and transport.
🔋 Power & PTO
| Item | Specification |
|---|---|
| Engine Output | 17.3 hp |
| PTO Type | Rear, 540 rpm |
| PTO Shaft | 1.375 inch |
| PTO Speeds @ 2500 rpm | 514 / 698 / 1128 rpm |
The standard 540 rpm PTO supports:
-
Rotary tillers
-
Finish mowers
-
Sprayers
-
Seeders
-
Category I implements
📏 Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 53.2 inches (135 cm) |
| Weight | 1466–1554 lbs (665–705 kg approx.) |
| Front Tire | 4.00-12 |
| Rear Tire (2WD) | 8.3-22 |
The 135 cm wheelbase provides excellent balance and traction, especially during heavy attachment work.
🔧 Mechanical Features
-
Two- or four-wheel drive
-
Open operator station
-
Durable steel chassis
-
Mechanical steering
-
Easy maintenance layout
The TU175 offers higher power output without sacrificing compact maneuverability.
🌍 Why Choose the Iseki TU175?
✔ 17.3HP Mitsubishi 1.0L diesel engine
✔ Increased torque within compact size
✔ Stable extended wheelbase
✔ Reliable 6-speed transmission
✔ Compatible with global Category I implements
The TU175 is an excellent choice for farmers who need more power for demanding PTO work while maintaining easy handling.
