Iseki TU165 Compact Utility Tractor
16.3HP Mitsubishi Diesel | Landhope TU5 Series
🚜 Overview – Iseki TU165

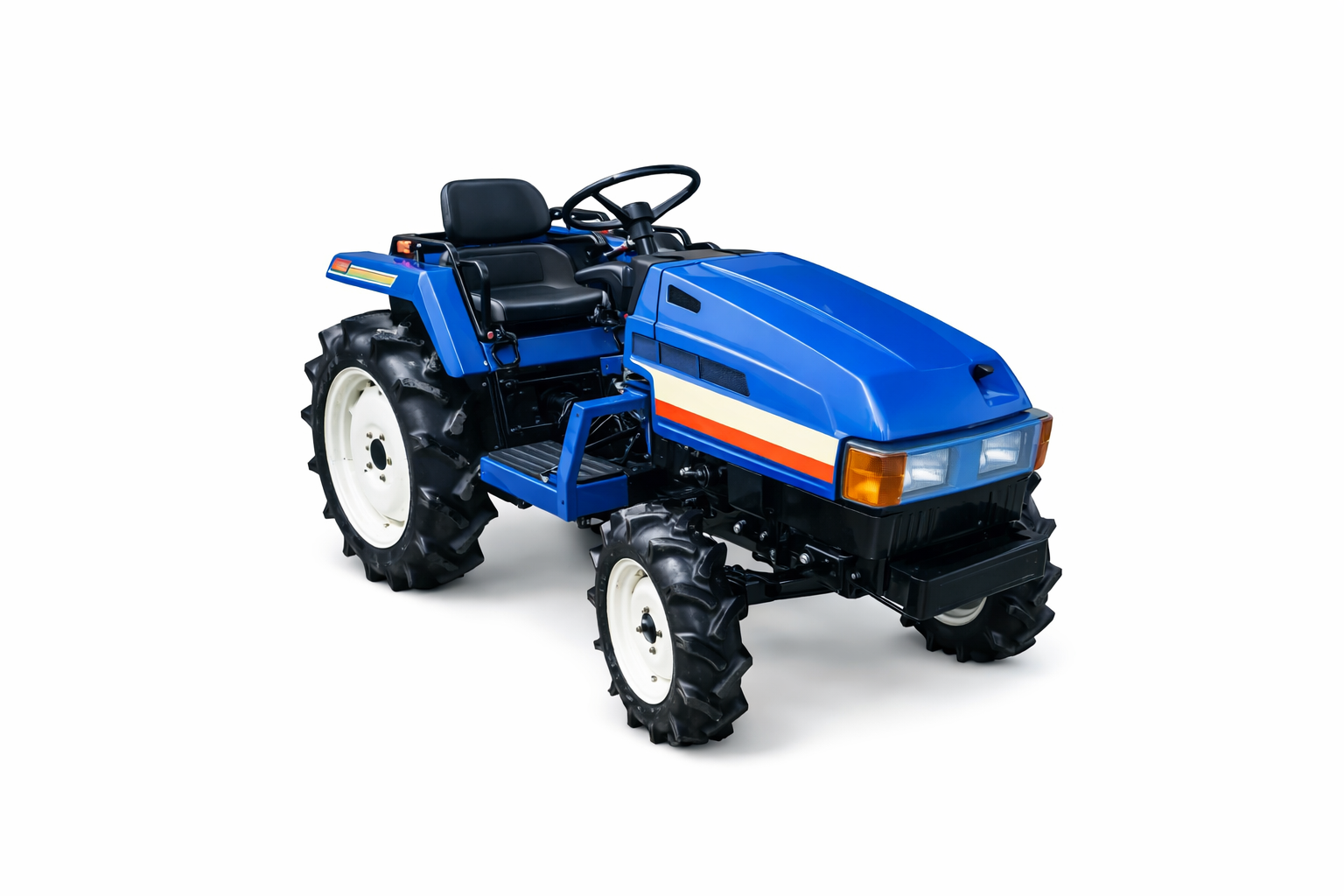

The Iseki & Co., Ltd. TU165 is a compact utility tractor produced between 1986 and 1990 as part of the Landhope TU5 Series.
Positioned above the TU155 in the TU5 lineup, the TU165 offers increased displacement and power while maintaining compact maneuverability. It is well-suited for farmers who require stronger PTO performance without stepping up to a larger-frame tractor.
Typical applications include:
-
Field cultivation
-
Rotary tilling
-
Orchard and vineyard management
-
Landscaping and maintenance
-
Light agricultural transport
📌 Series Position
| Model | Production | Output |
|---|---|---|
| TU155 | 1986–1990 | 11.4 kW |
| TU165 | 1986–1990 | 12.2 kW |
| TU175 | Late 1980s | 12.9 kW |
| TU167 | 1989–1992 | 12.2 kW |
Series: Landhope TU5
Category: Compact Utility Tractor
Drive Options: 2WD / 4WD (TU165F)
⚙️ Engine Specifications
| Item | Specification |
|---|---|
| Engine Manufacturer | Mitsubishi |
| Engine Type | 3-cylinder diesel |
| Displacement | 1.0 L (approx. 1000 cc) |
| Cooling | Liquid-cooled |
| Rated Power | 16.3 hp (12.2 kW) |
| Fuel Tank Capacity | 4 gal (15.1 L) |
The Mitsubishi 1.0L diesel engine delivers improved torque and stable operation under load. Its mechanical injection system ensures durability and ease of service across international markets.
🔄 Transmission
| Item | Specification |
|---|---|
| Type | Gear transmission |
| Speeds | 6 forward / 2 reverse |
| Clutch | Dry single plate |
| Drive | 2WD or 4WD |
The 6-speed gear transmission allows operators to select appropriate speeds for both PTO work and transport applications.
🔋 Power & PTO
| Item | Specification |
|---|---|
| Engine Output | 16.3 hp |
| PTO Type | Rear, 540 rpm |
| PTO Shaft | 1.375 inch |
| PTO Speeds @ 2500 rpm | 541 / 735 / 1188 rpm |
The standard 540 rpm PTO is compatible with:
-
Rotary tillers
-
Mowers
-
Sprayers
-
Seeders
-
Small agricultural implements
📏 Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 53.2 inches (135 cm) |
| Weight | 1455–1554 lbs (660–705 kg approx.) |
| Front Tire | 4.00-12 |
| Rear Tire (2WD) | 8.3-20 |
The extended wheelbase compared to smaller TU models improves stability, especially during heavy PTO operations.
🔧 Mechanical Features
-
Two- or four-wheel drive
-
Open operator station
-
Durable steel chassis
-
Simple mechanical controls
-
Easy access for maintenance
The TU165 offers a strong balance of compact size and increased power capacity.
🌍 Why Choose the Iseki TU165?
✔ 16.3HP Mitsubishi 1.0L diesel engine
✔ Higher torque for heavy attachments
✔ Stable extended wheelbase
✔ Reliable 6-speed gearbox
✔ Proven Landhope TU5 durability
The TU165 is ideal for farmers who need additional power while maintaining maneuverability in tight spaces.
📩 Export Support from EVERY FARM TRACTOR
Since 2006, EVERY FARM TRACTOR has exported Japanese tractors and agricultural machinery to more than 100 countries worldwide.
We provide:
-
Detailed mechanical inspections
-
PTO performance verification
-
Comprehensive condition reports
-
Global shipping support (FOB / CIF / C&F)
-
Attachment compatibility guidance
If you are interested in the Iseki TU165, contact us today for availability and international shipping options.
