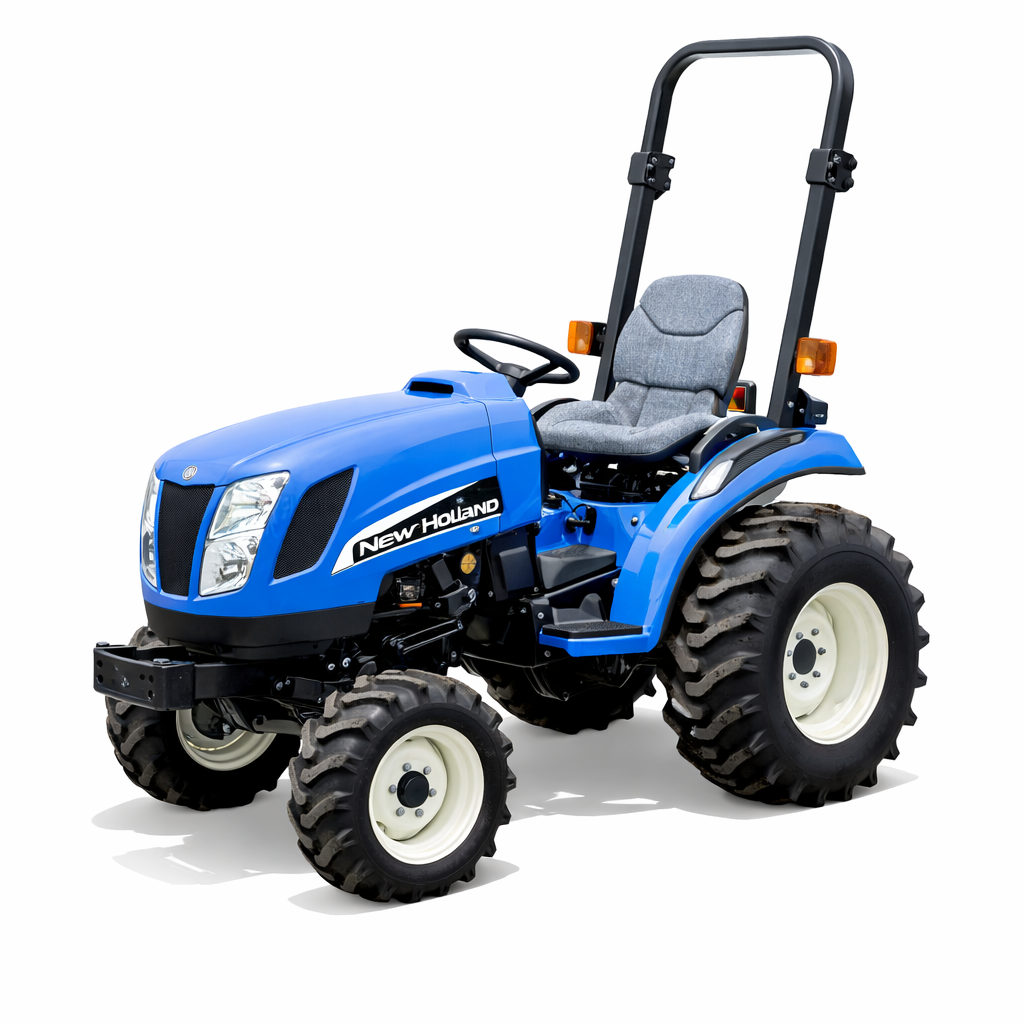

Since 2006, EVERY FARM TRACTOR has exported high-quality Japanese used tractors and agricultural machinery to over 100 countries. If you are searching for a compact yet powerful tractor, the New Holland TC23DA is an excellent option.
Many buyers begin with the keyword “Used Kubota Tractor.” However, the Boomer TC-A Series, including the TC23DA, offers competitive power, smooth operation, and strong resale value. Therefore, this 23HP compact tractor deserves serious attention.
Overview
| Item | Details |
|---|---|
| Model | New Holland TC23DA |
| Production Years | 2005 – 2008 |
| Series | Boomer TC-A Series |
| Category | Compact Utility Tractor |
| Manufacturer | New Holland (CNH) |
| Gross Engine Power | 23 hp (17.2 kW) |
| Weight | 1,592 lbs (722 kg) |
| Fuel Capacity | 5.3 gal (20.1 L) |
The TC23DA improves on earlier TC models. In addition, it delivers stronger hydraulic flow and refined design.
Engine Specifications
| Item | Specification |
|---|---|
| Engine Brand | Shibaura |
| Engine Type | 3-cylinder diesel |
| Displacement | 1.0L |
| Cooling | Liquid-cooled |
| Gross Power | 23 hp |
The 1.0L Shibaura diesel engine provides stable and efficient output. As a result, operators can handle mowing, tilling, and light loader work smoothly.
Furthermore, diesel torque supports consistent performance during longer work sessions.
Transmission Options
| Transmission | Type |
|---|---|
| Hydrostatic | Smooth variable-speed control |
| 9-speed gear | Manual transmission |
Because of these transmission choices, buyers can match operation style to job requirements. For example, hydrostatic transmission simplifies forward and reverse movements.
PTO Performance
| Item | Gear Model | Hydro Model |
|---|---|---|
| PTO Power (claimed) | 18.5 hp | 17.5 hp |
| Rear PTO | Transmission | Independent |
| PTO Speed | 540 RPM | 540 RPM |
| Mid PTO | Transmission | Independent |
| Mid PTO Speed | 2000 RPM | 2000 RPM |
The independent PTO system supports mower decks and snowblowers efficiently. Therefore, the TC23DA works well for year-round property maintenance.
Hydraulic System
| Item | Specification |
|---|---|
| Type | Open center |
| Hydraulic Capacity | 4.23 gal (16.0 L) |
| Pressure | 1849 psi (127.5 bar) |
| Pump Flow | 5.3 gpm (20.1 lpm) |
| Total Flow | 8.3 gpm (31.4 lpm) |
| Steering Flow | 3.0 gpm (11.4 lpm) |
The improved hydraulic flow enhances loader performance. In addition, smooth steering control increases maneuverability.
3-Point Hitch
| Item | Specification |
|---|---|
| Rear Hitch Type | Category I |
| Control | Position control |
| Rear Lift Capacity (24″/610mm) | 1,265 lbs (573 kg) |
Because of its Category I hitch, the tractor supports a wide range of compact implements.
Mechanical Features
| Feature | Details |
|---|---|
| Drive | Four-wheel drive |
| Differential Lock | Mechanical rear |
| Steering | Power steering |
| ROPS | Two-post folding ROPS |
| PTO Clutch | Mechanical dry disc |
These features improve traction and operator safety. Consequently, the TC23DA performs reliably on uneven terrain.
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 57.5 in (146 cm) |
| Weight | 1,592 lbs (722 kg) |
| Front Tire | 5-12 |
| Rear Tire | 9.5-16 |
The balanced chassis improves stability. Therefore, operators can work comfortably in tight areas.
Available Attachments
-
54″ mid-mount mower deck
-
60″ mid-mount mower deck
-
Snowblower
-
Blade
-
Front-end loader
-
Backhoe
Because of these attachments, the TC23DA becomes a multi-purpose compact tractor.
Why Choose New Holland TC23DA from EVERY FARM TRACTOR?
First, we inspect each tractor carefully before export.
Second, we provide clear specifications and competitive pricing.
Third, we ship to more than 100 countries worldwide.
Even if you searched for a Used Kubota Tractor, the TC23DA offers strong compact performance with advanced hydrostatic options.
Moreover, our experienced export team handles documentation and logistics efficiently. Therefore, international buyers can purchase with confidence.
