Since 2006, EVERY FARM TRACTOR has exported high-quality Japanese used tractors and agricultural machinery to more than 100 countries. If you are searching for a powerful and durable utility tractor, the New Holland TB120 is a strong candidate.
Many buyers begin with “Used Kubota Tractor” when looking online. However, professional farmers also compare high-horsepower models like the TB120 because of engine strength, hydraulic performance, and long-term reliability. Therefore, this 120HP tractor deserves serious consideration.
Overview
| Item | Details |
|---|---|

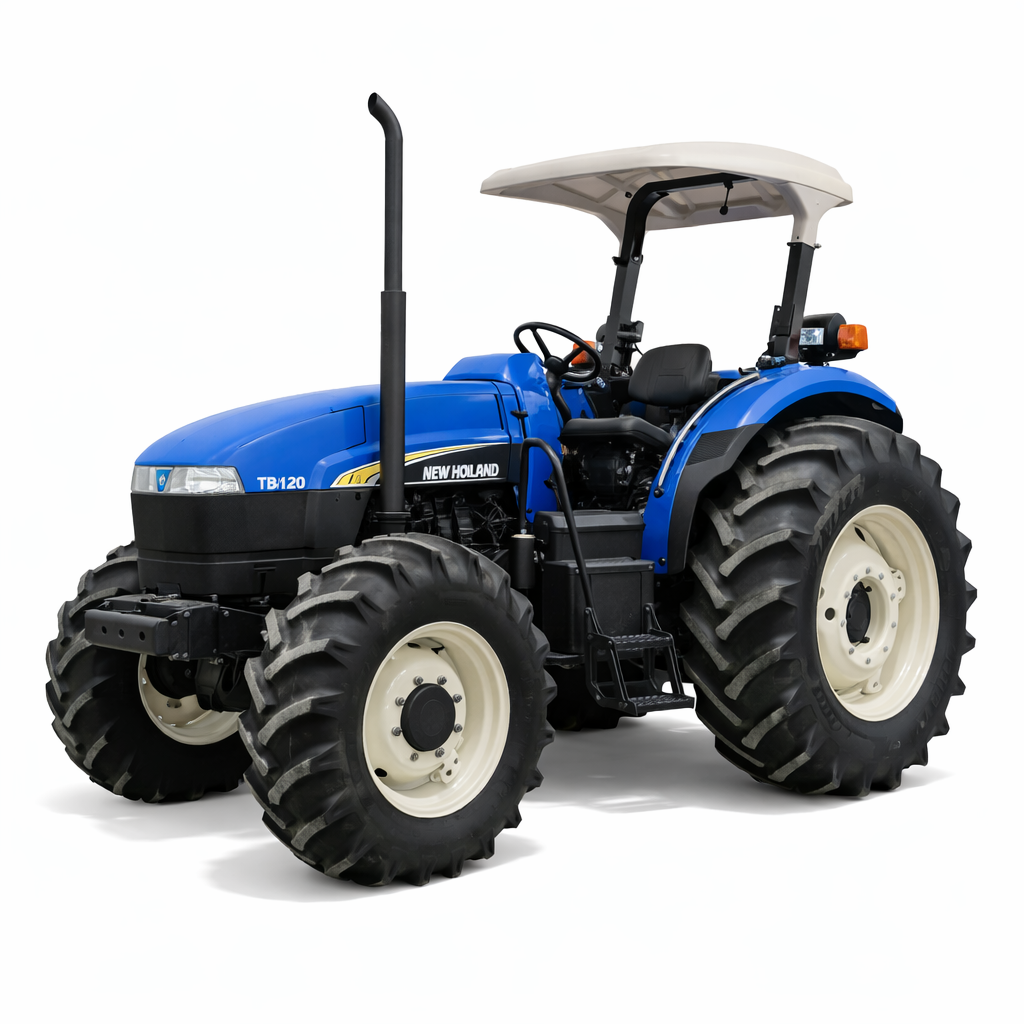

| Model | New Holland TB120 |
| Production Years | 2003 – 2007 |
| Series | TB Series |
| Category | Utility Tractor |
| Variants | TB120LP (Low Profile), TB120HC (High Clearance) |
| Drive Type | 2WD / 4WD |
| Engine Power | 120 hp (89.5 kW) |
| PTO Power | 96 hp (71.6 kW) |
| Fuel Capacity | 37 gal (140 L) |
The TB120 delivers strong field performance. In addition, it maintains simple mechanical systems for easier maintenance in global markets.
Engine Specifications
| Item | Specification |
|---|---|
| Engine Brand | New Holland |
| Engine Type | 6-cylinder diesel |
| Displacement | 7.5L |
| Cooling | Liquid-cooled |
| Rated Power | 120 hp |
| PTO (claimed) | 96 hp |
The 7.5-liter 6-cylinder diesel engine produces high torque for demanding operations. As a result, the tractor handles heavy plowing, subsoiling, and transport work with confidence.
Furthermore, the larger engine ensures stable power output even under continuous load.
Transmission Options
| Transmission Type | Description |
|---|---|
| 8-speed gear | Standard manual transmission |
| 16-speed two-speed power shift | Flexible speed control |
| 12-speed creeper | Ideal for low-speed precision work |
Because of these transmission choices, operators can match engine speed to field conditions. Consequently, fuel efficiency and productivity improve.
Mechanical Features
| Feature | Details |
|---|---|
| Drive Options | Two-wheel drive or Four-wheel drive |
| Steering | Power steering |
| ROPS | Two-post folding ROPS |
| PTO Type | Independent |
| PTO Speeds | 540 / 1000 RPM |
| PTO Clutch | Wet disc |
The independent PTO system supports a wide range of implements. Therefore, this tractor fits commercial farming, contract work, and export markets.
Hydraulic System
| Item | Specification |
|---|---|
| Type | Open center |
| Hydraulic Capacity | 15 gal (56.8 L) |
| Pressure | 2500 psi (172.4 bar) |
| Valves | 2 |
| Pump Flow | 9.3 gpm (35.2 lpm) |
| Total Flow | 18.5 gpm (70.0 lpm) |
| Optional Total Flow | 27.1 gpm (102.6 lpm) |
| Steering Flow | 9.2 gpm (34.8 lpm) |
The strong hydraulic system supports front-end loaders and heavy rear implements. In addition, stable oil flow ensures smooth lifting and steering.
3-Point Hitch & Lifting Capacity
| Item | Specification |
|---|---|
| Rear Hitch | Category II |
| Draft Control | Mechanical top-link sensing |
| Rear Lift Capacity | 4,200 lbs (1,905 kg) |
Because of its lifting strength, the TB120 manages large rotary tillers and heavy plows without difficulty.
Dimensions & Weight
| Item | Specification |
|---|---|
| Wheelbase (2WD) | 100.4 in (255 cm) |
| Wheelbase (4WD) | 98.1 in (249 cm) |
| Weight | 6,525 – 7,380 lbs |
The longer wheelbase improves stability. Moreover, the heavier frame increases traction during demanding field work.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 55 amps |
| Battery | 12V |
Attachments
The New Holland TB120 supports:
-
Front-end loaders
-
Disc harrows
-
Rotary tillers
-
Seeders
-
Sprayers
-
Transport trailers
Thanks to its 120HP output, this tractor suits medium to large-scale farming operations.
Why Buy New Holland TB120 from EVERY FARM TRACTOR?
First, we carefully inspect every tractor before export.
Second, we provide transparent pricing and detailed specifications.
Third, we ship worldwide to over 100 countries.
Even if you searched for a Used Kubota Tractor, comparing this 120HP New Holland model may provide stronger performance in the same class.
Furthermore, our export specialists support documentation, logistics, and customs clearance. Therefore, international buyers can purchase smoothly and confidently.
