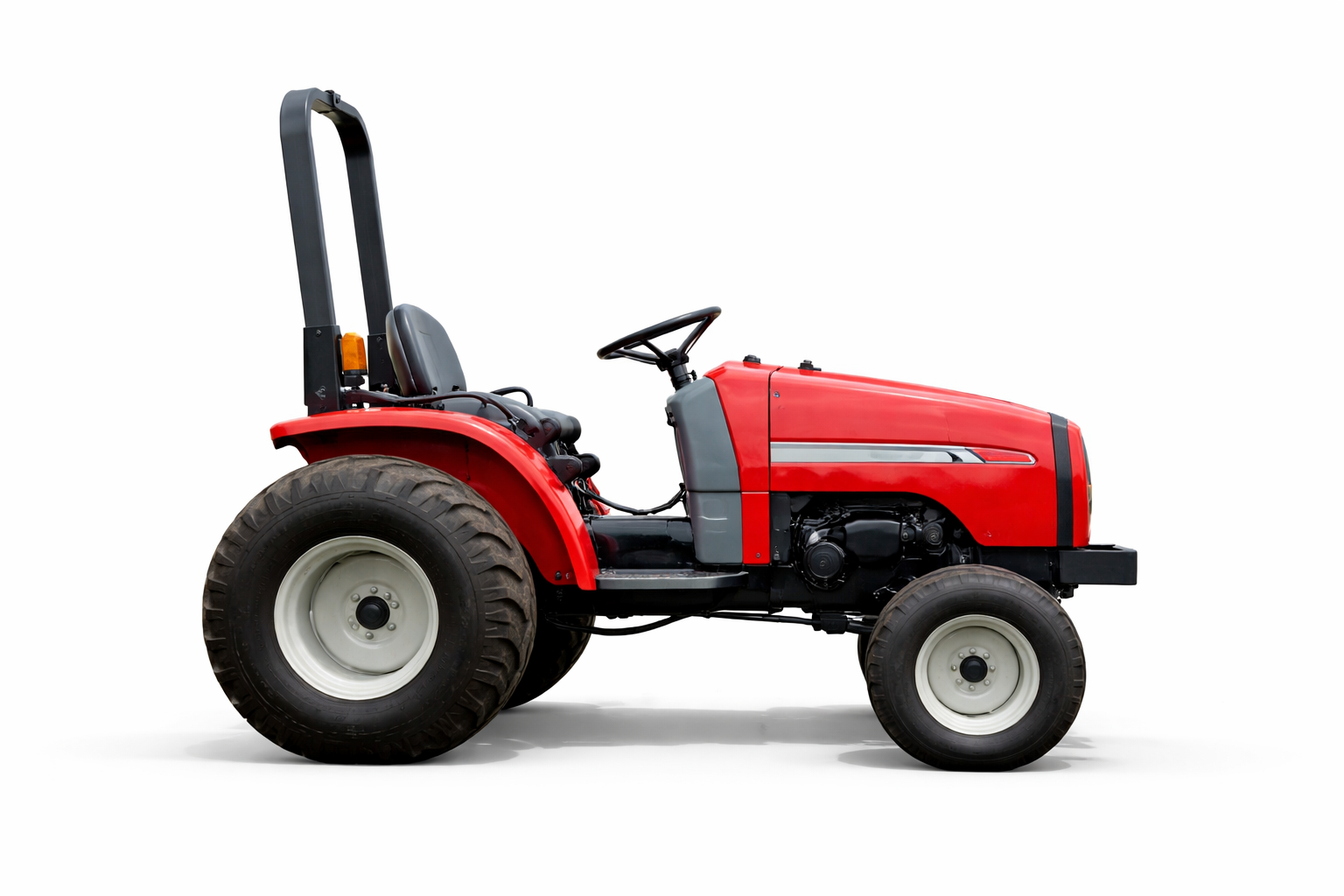

🚜 Massey Ferguson 1433 (2002–2005)
The Massey Ferguson 1433 is a powerful 33HP compact utility tractor built by Iseki in Matsuyama, Japan. With strong hydraulic flow, multiple transmission options, and high lift capacity, it is designed for professional farming, landscaping, and heavy-duty property work.
Massey Ferguson 1433 Specifications & Overview
🔍 Overview
| Item | Details |
|---|---|
| Model | Massey Ferguson 1433 |
| Series | 1400 Series |
| Production Years | 2002 – 2005 |
| Category | Compact Utility Tractor |
| Distributor | Massey Ferguson |
| Manufacturer | Iseki (Japan) |
| Built In | Matsuyama, Japan |
| Drive Type | 4WD |
| ROPS | Two-post folding ROPS |
| Optional | Soft-side weather cab |
| Variant | 1433V (Value Model) |
🔗 1400 Series Lineup
| Model | Engine Power |
|---|---|
| 1431 | 33.0 HP |
| 1433 | 33.0 HP |
| 1440 | 40.1 HP |
Predecessor: MF 1250 (1992–2002)
🔧 Engine
| Item | Specification |
|---|---|
| Engine Manufacturer | Iseki |
| Engine Type | 3-cylinder diesel |
| Displacement | 1.5 L |
| Gross Power | 33 HP (24.6 kW) |
| Fuel Tank Capacity | 7.9 gal (29.9 L) |
| Cooling | Liquid-cooled |
The 1.5L Iseki diesel engine delivers strong torque, fuel efficiency, and long-term durability for demanding field operations.
⚙️ Transmission Options
| Transmission Type | Specification |
|---|---|
| 16-speed gear | Deluxe model |
| 8-speed gear | Standard |
| Hydrostatic | Available |
| Drive | Mechanical 4WD |
Multiple transmission choices allow operators to select between mechanical precision or smooth hydrostatic control.
💪 Power Output
| Specification | Gear Model | Hydro Model |
|---|---|---|
| Engine (Gross) | 33 HP | 33 HP |
| PTO Power (Claimed) | 27 HP | 26.3 HP |
🔩 Hydraulics
| Item | Specification |
|---|---|
| Type | Open center |
| Pressure | 2130 psi (146.9 bar) |
| Pump Flow | 7.7 gpm (29.1 lpm) |
| Total Flow | 12.2 gpm (46.2 lpm) |
| Steering Flow | 4.5 gpm (17.0 lpm) |
The high total hydraulic flow enhances loader and backhoe performance compared to smaller 1400 Series models.
🔗 3-Point Hitch
| Item | Specification |
|---|---|
| Rear Hitch Type | Category I |
| Control | Position & response control (draft optional) |
| Rear Lift Capacity | 2,756 lbs (1,250 kg) |
| Rear Arms (Deluxe) | Telescopic link ends |
| Rear Arms (1433V) | Fixed link ends |
| Stabilizers | Telescopic (standard) |
The strong rear lift capacity makes the MF 1433 suitable for heavier implements.
🔄 Power Take-Off (PTO)
| PTO Type | Specification |
|---|---|
| Rear PTO | Independent |
| Clutch | Electro-hydraulic |
| Rear PTO Speed | 540 rpm |
| Mid PTO | Optional |
| Mid PTO Speed | 2000 rpm |
The independent PTO system allows smooth engagement and reliable implement operation.
📏 Dimensions & Weight
| Item | Specification |
|---|---|
| Wheelbase | 68.5 inches (173 cm) |
| Weight | 2,810 lbs (1,274 kg) |
| Rear Tire | 15-19.5 |
The heavier chassis provides improved traction and stability during demanding work.
🔧 Available Attachments
| Attachment | Details |
|---|---|
| Mid-Mount Mower | 72″ deck |
| Snowblower | Compatible |
| Blade | Front or rear |
| Front-End Loader | Available |
| Backhoe | Compatible |
The MF 1433 is suitable for year-round operation in farming, landscaping, and snow removal.
🔢 Serial Numbers
| Year | Serial Start |
|---|---|
| 2002 | LG0001 |
| 2003 | MG0001 |
| 2004 | NG0001 |
| 2005 | P0001 |
🔋 Electrical
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery | 12V |
🌍 Why Choose Massey Ferguson 1433?
-
✔ Japanese-built Iseki engineering
-
✔ Strong 33HP diesel performance
-
✔ Multiple transmission options
-
✔ High 2,756 lb lift capacity
-
✔ Excellent hydraulic performance
The Massey Ferguson 1433 delivers professional-grade capability in a compact size, making it ideal for farms and commercial landscaping worldwide.
