🚜 Massey Ferguson 1417 (2003β2005)
Since 2006, EVERY FARM TRACTOR has exported high-quality Japanese used tractors and agricultural machinery to more than 100 countries worldwide.

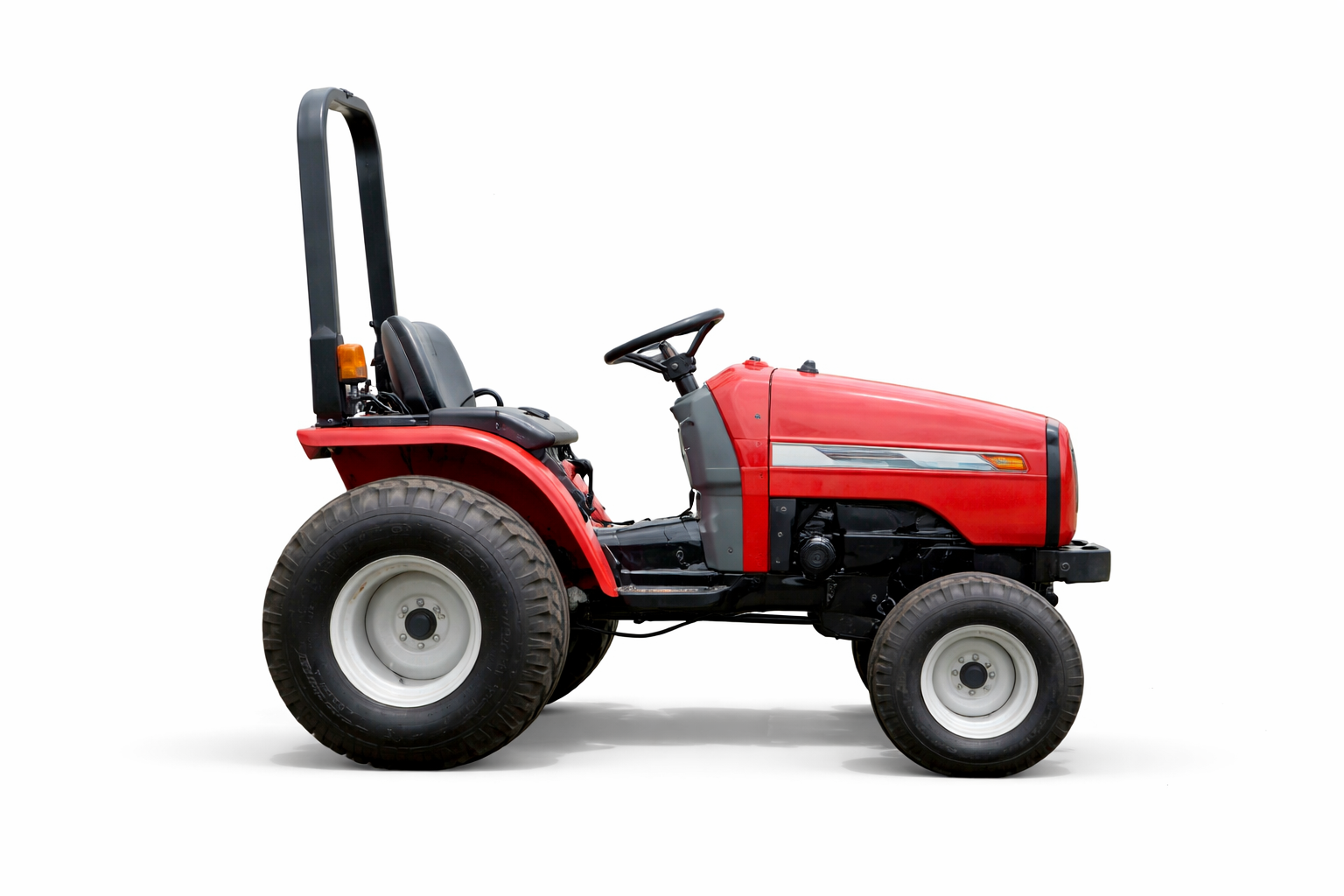

The Massey Ferguson 1417 is a compact utility tractor built by Iseki in Japan, combining reliability, fuel efficiency, and maneuverability for small-scale farming and landscaping.
Massey Ferguson 1417 Specifications & Overview
🔍 Overview
| Item | Details |
|---|---|
| Model | Massey Ferguson 1417 |
| Series | 1400 Series |
| Production Years | 2003 β 2005 |
| Category | Compact Utility Tractor |
| Distributor | Massey Ferguson |
| Manufacturer | Iseki (Japan) |
| Built In | Matsuyama, Japan |
| Drive Type | 4WD (Four-Wheel Drive) |
| ROPS | Two-post fixed ROPS |
🔗 1400 Series Lineup
| Model | Engine Power |
|---|---|
| 1417 | 16.6 HP |
| 1423 | 23.3 HP |
Predecessor: MF 1205 (1997β2003)
🔧 Engine
| Item | Specification |
|---|---|
| Engine Manufacturer | Iseki |
| Engine Type | 3-cylinder diesel |
| Displacement | 0.9 L |
| Gross Power | 16.6 HP (12.4 kW) |
| Fuel Tank Capacity | 3.6 gal (13.6 L) |
| Cooling | Liquid-cooled |
The Iseki 0.9L 3-cylinder diesel engine is designed for fuel efficiency and durability. Its compact design ensures easy maintenance and smooth operation.
⚙️ Transmission Options
| Transmission Type | Specification |
|---|---|
| Gear Transmission | 6-speed manual |
| Hydrostatic | Available |
| Drive | Mechanical 4WD |
The hydrostatic option provides smooth speed control, ideal for mowing and loader work, while the gear transmission offers mechanical simplicity.
💪 Power Output
| Specification | Gear Model | Hydro Model |
|---|---|---|
| Engine (Gross) | 16.6 HP | 16.6 HP |
| PTO Power (Claimed) | 13.3 HP | 12.6 HP |
🔩 Hydraulics
| Item | Specification |
|---|---|
| Type | Open center |
| Pressure | 1990 psi (137.2 bar) |
| Pump Flow | 4.8 gpm (18.2 lpm) |
| Total Flow | 6.3 gpm (23.8 lpm) |
| Steering Flow | 1.5 gpm (5.7 lpm) |
🔗 3-Point Hitch
| Item | Specification |
|---|---|
| Rear Hitch Type | Category I |
| Control | Position & response control |
| Rear Lift Capacity | 1,058 lbs (479 kg) |
| Rear Arms | Fixed link ends with turn-buckle stabilizers |
🔄 Power Take-Off (PTO)
| PTO Type | Specification |
|---|---|
| Gear Rear PTO | Transmission-driven |
| Hydro Rear PTO | Live |
| Rear PTO Speed | 540 rpm |
| Mid PTO | Standard |
| Mid PTO Speed | 2000 rpm |
The standard mid-PTO allows easy installation of mid-mount mower decks.
📏 Dimensions & Weight
| Item | Specification |
|---|---|
| Wheelbase | 56.1 inches (142 cm) |
| Weight | 1,422 lbs (645 kg) |
| Rear Tire | 8-16 |
Its compact size makes it ideal for orchards, greenhouses, and residential properties.
🔌 Electrical
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery | 12V |
🔧 Available Attachments
| Attachment | Details |
|---|---|
| Mid-Mount Mower | 54-inch deck |
| Blade | Front or rear |
| Front-End Loader | Compatible |
The 1417 is highly versatile for mowing, light construction, landscaping, and estate maintenance.
🔢 Serial Numbers
| Year | Serial Start |
|---|---|
| 2002 | LA0001 |
| 2003 | MA0001 |
| 2004 | NA0001 |
| 2005 | P0001 |
🌍 Why Choose Massey Ferguson 1417?
-
✔ Japanese-built Iseki quality
-
✔ Fuel-efficient 0.9L diesel engine
-
✔ Compact and lightweight design
-
✔ Multiple transmission options
-
✔ Ideal for small farms and landscaping
The Massey Ferguson 1417 is especially popular in markets requiring compact tractors with strong reliability and easy maintenance.
