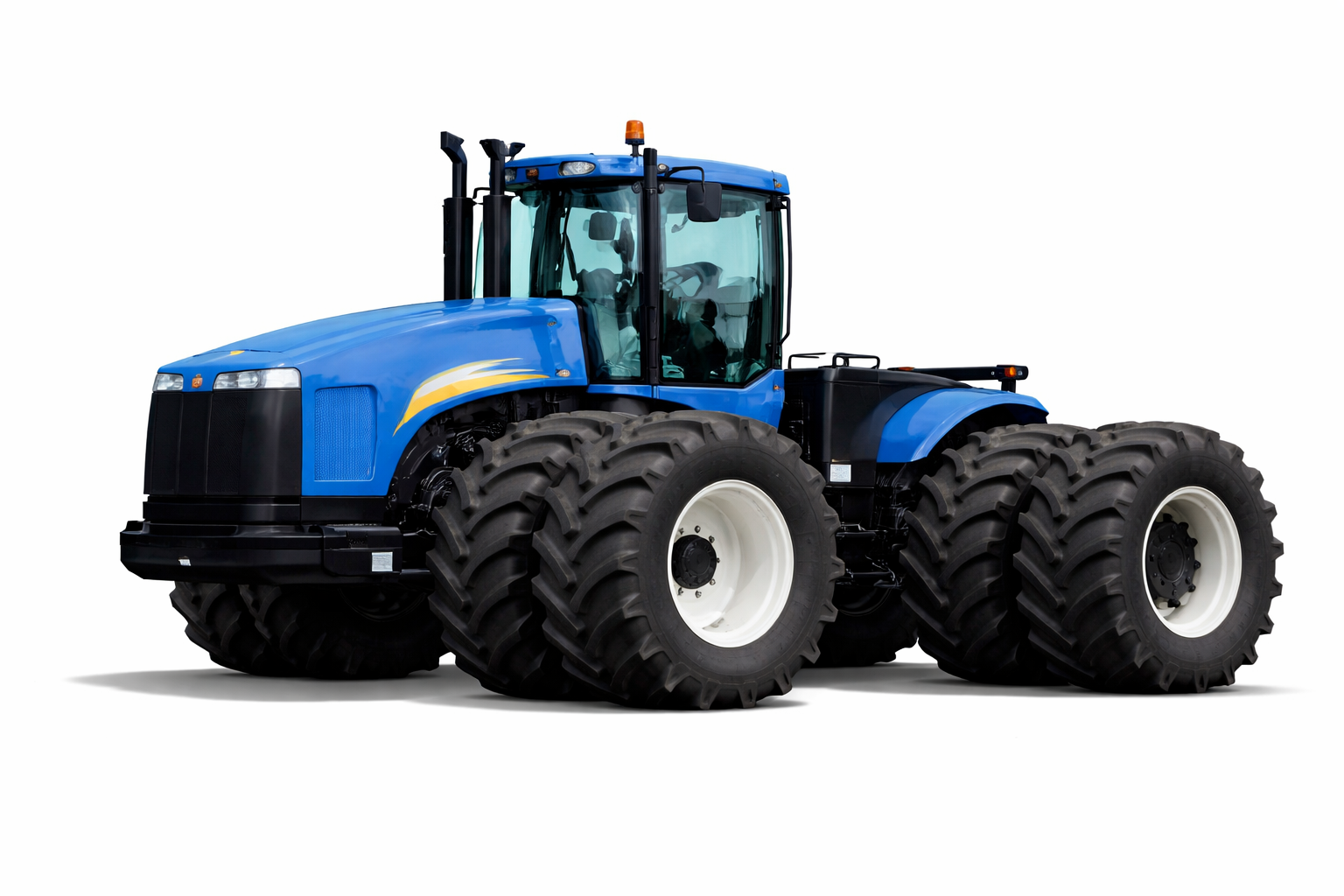

New Holland T9060 – Ultimate High-Horsepower 4WD Tractor
Overview
| Item | Details |
|---|---|
| Model | New Holland T9060 |
| Series | T9000 Series |
| Tractor Type | Four-Wheel Drive (4WD) Tractor |
| Production Years | 2007 – 2010 |
| Manufacturer | New Holland |
| Manufacturing Location | Fargo, North Dakota, USA |
| Drive System | Articulated Four-Wheel Drive |
| Cab | Standard cab with heat & air-conditioning |
Series Position
TJ530 (2006–2007) ↓ → T9050 / T9060 → T9.615 (2011–2014) ↑
The T9060 represents the peak of the T9000 series, engineered for the largest farms and the most demanding field operations worldwide.
Engine
| Item | Specification |
|---|---|
| Engine Manufacturer | Cummins |
| Engine Type | 6-cylinder, liquid-cooled diesel |
| Displacement | 15.0 L |
| Fuel Type | Diesel |
| Rated Engine Power | 535 hp (398.9 kW) |
| Fuel Tank Capacity | 300 gal / 1,135.5 L |
The Cummins 15.0-liter engine delivers extraordinary torque and reliability, designed for continuous operation under extreme loads.
Power
| Item | Output |
|---|---|
| Engine Power | 535 hp (398.9 kW) |
| PTO Power (claimed) | 473 hp (352.7 kW) |
This level of power allows the T9060 to operate ultra-wide tillage equipment, massive air seeders, and high-capacity grain carts with ease.
Transmission
| Option | Description |
|---|---|
| 16-Speed | Full PowerShift |
The heavy-duty PowerShift transmission is built to manage extreme torque while ensuring smooth and reliable power delivery.
Hydraulics
| Item | Specification |
|---|---|
| System Type | Closed-center load sensing (CCLS) |
| System Pressure | 2,000 psi / 137.9 bar |
| Control Valves | 4 – 9 |
| Pump Flow | 33 gpm / 124.9 lpm |
| Total Flow | 42 gpm / 159.0 lpm |
| Optional Flow | 57 gpm / 215.7 lpm |
| Optional MegaFlow | 94 gpm / 355.8 lpm |
The optional MegaFlow hydraulic system supports the most demanding hydraulic-driven implements in large-scale agriculture.
Hitch & PTO
Rear Hitch
| Item | Specification |
|---|---|
| Hitch Type | IVN (optional) |
| Lift Capacity (24” / 610 mm) | 19,620 lbs / 8,899 kg |
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| PTO Type | Independent |
| Rear PTO Speed | 1000 rpm (optional) |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 154 in / 391 cm |
| Front Tires | 710/70R42 |
| Rear Tires | 710/70R42 |
The long wheelbase and equal-size tires provide outstanding traction, flotation, and stability on large fields and challenging soil conditions.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 175 A |
| Batteries | 2 |
| Battery Voltage | 12 V |
| Battery Capacity | 1000 Ah |
