New Holland T8030 – High-Horsepower Row-Crop Tractor
Overview
| Item | Details |
|---|---|
| Model | New Holland T8030 |
| Series | T8000 Series |
| Tractor Type | Row-Crop Tractor |
| Production Years | 2007 – 2010 |
| Manufacturer | New Holland |
| Manufacturing Location | Racine, Wisconsin, USA |
| Drive | Four-Wheel Drive (4WD) |
| Cab | Standard cab with heat & A/C Optional luxury cab (leather seats, tinted windows, sunscreens) |
Series Position
T8020 → T8030 → T8040
Successor: T8.330 (2011–2012)
Engine
| Item | Specification |
|---|---|
| Engine Model | New Holland Diesel |
| Engine Type | 6-cylinder, liquid-cooled |
| Displacement | 8.3 L |
| Fuel Type | Diesel |
| Rated Engine Power (gross) | 269.6 hp (201.0 kW) |
| Maximum Engine Power | 303.1 hp (226.0 kW) |
| Fuel Tank Capacity | 180 gal / 681.3 L |
The robust 8.3-liter diesel engine delivers high torque and strong power reserves, ideal for large-scale farming and heavy-duty PTO applications.
Power & Performance
| Item | Output |
|---|---|
| Engine Power (gross) | 269.6 hp (201.0 kW) |
| Engine Power (max) | 303.1 hp (226.0 kW) |
| PTO Power (claimed) | 225 hp (167.8 kW) |
| Drawbar Power (tested) | 189.29 hp (141.2 kW) |
| PTO Power (tested) | 272.95 hp (203.5 kW) |
The T8030 shows outstanding real-world PTO and drawbar performance, making it suitable for heavy tillage, large planters, and high-demand PTO implements.
Transmission
| Option | Description |
|---|---|
| 19-Speed | Full PowerShift |
| 23-Speed | Full PowerShift |
Both PowerShift transmissions allow smooth gear changes under load, increasing productivity and operator comfort during long working hours.
Hydraulics
| Item | Specification |
|---|---|
| System Type | Closed-center load sensing (CCLS) |
| System Pressure | 3,249 psi / 224.0 bar |
| Control Valves | 3 – 5 |
| Pump Flow | 38.6 gpm / 146.1 lpm |
| Brakes | Hydraulic wet disc |
| Steering | Power steering |
Hitch & PTO
Rear & Front Hitch
| Item | Specification |
|---|---|
| Rear Hitch Type | IIIN / III |
| Rear Lift Capacity | 15,183 lbs / 6,887 kg |
| Rear Lift (optional) | 17,931 lbs / 8,133 kg |
| Front Lift Capacity | 14,040 lbs / 6,368 kg |
| Front Lift (SuperSteer) | 14,240 lbs / 6,459 kg |
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| PTO Type | Independent |
| Clutch | Electro-hydraulic |
| Rear PTO Speed | 1000 rpm (1.75″) |
| Optional PTO | 540 / 1000 rpm |
| Engine RPM @ PTO | 540 @ 1988 rpm / 1000 @ 1984 rpm |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 121.2 in / 307 cm |
| Wheelbase (SuperSteer) | 129.3 in / 328 cm |
| Operating Weight | 20,370 – 21,535 lbs |
| Front Tires | 16.9R30 |
| Rear Tires | 20.8R42 |
The longer wheelbase and wide tire configuration provide excellent traction, stability, and ride comfort in demanding row-crop operations.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 150 A (175 A optional) |
| Battery Voltage | 12 V |

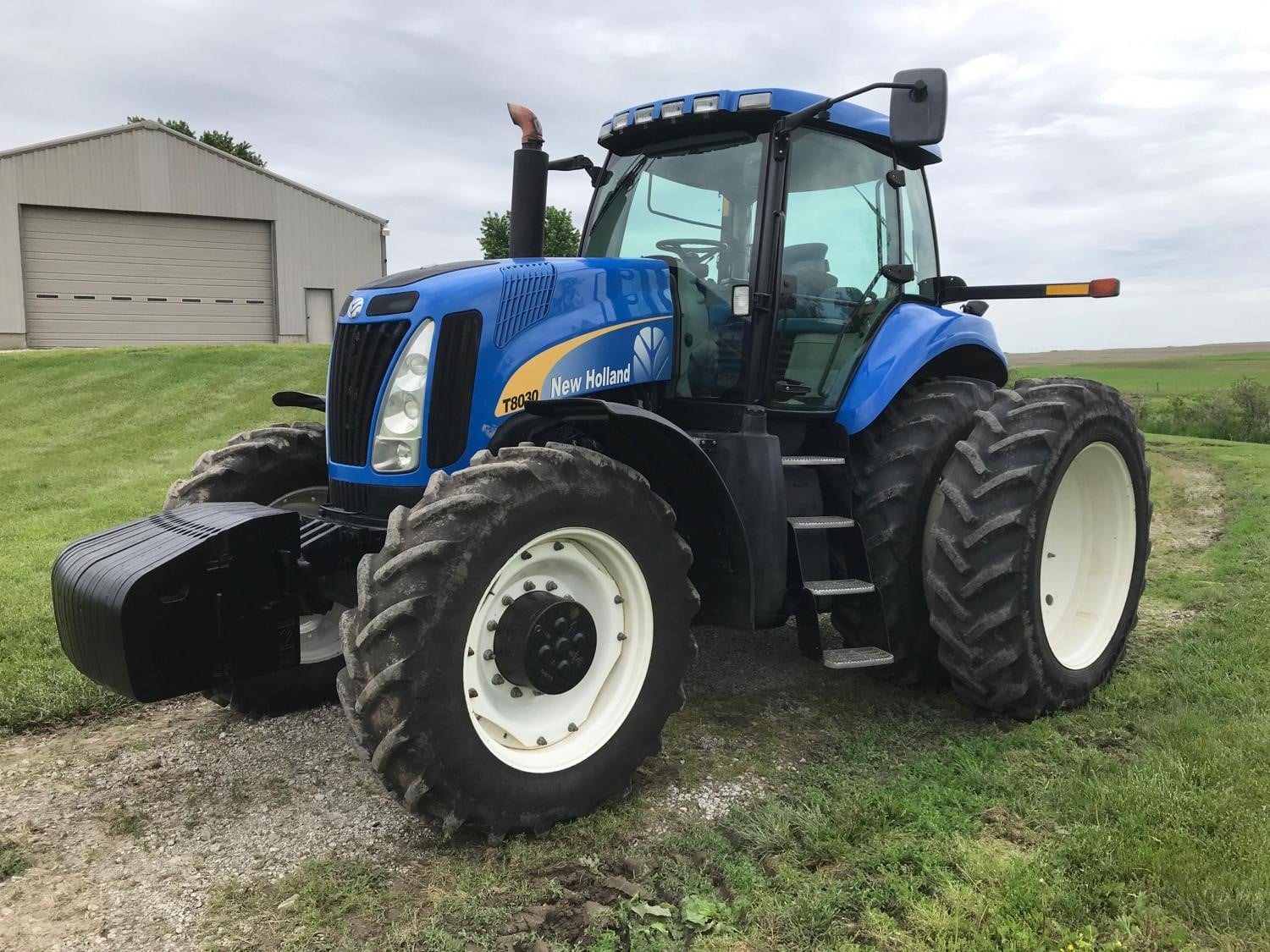

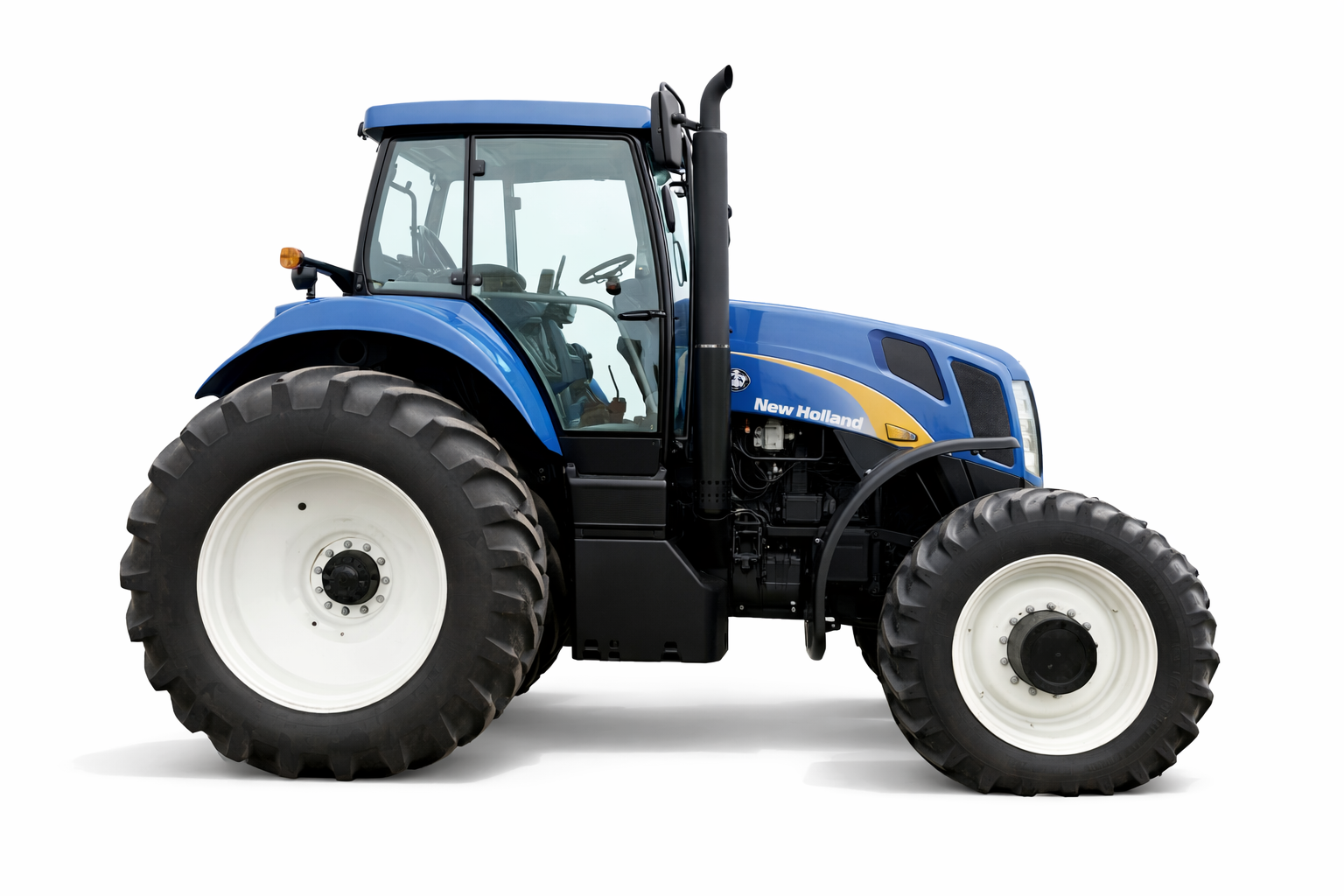

Photos
