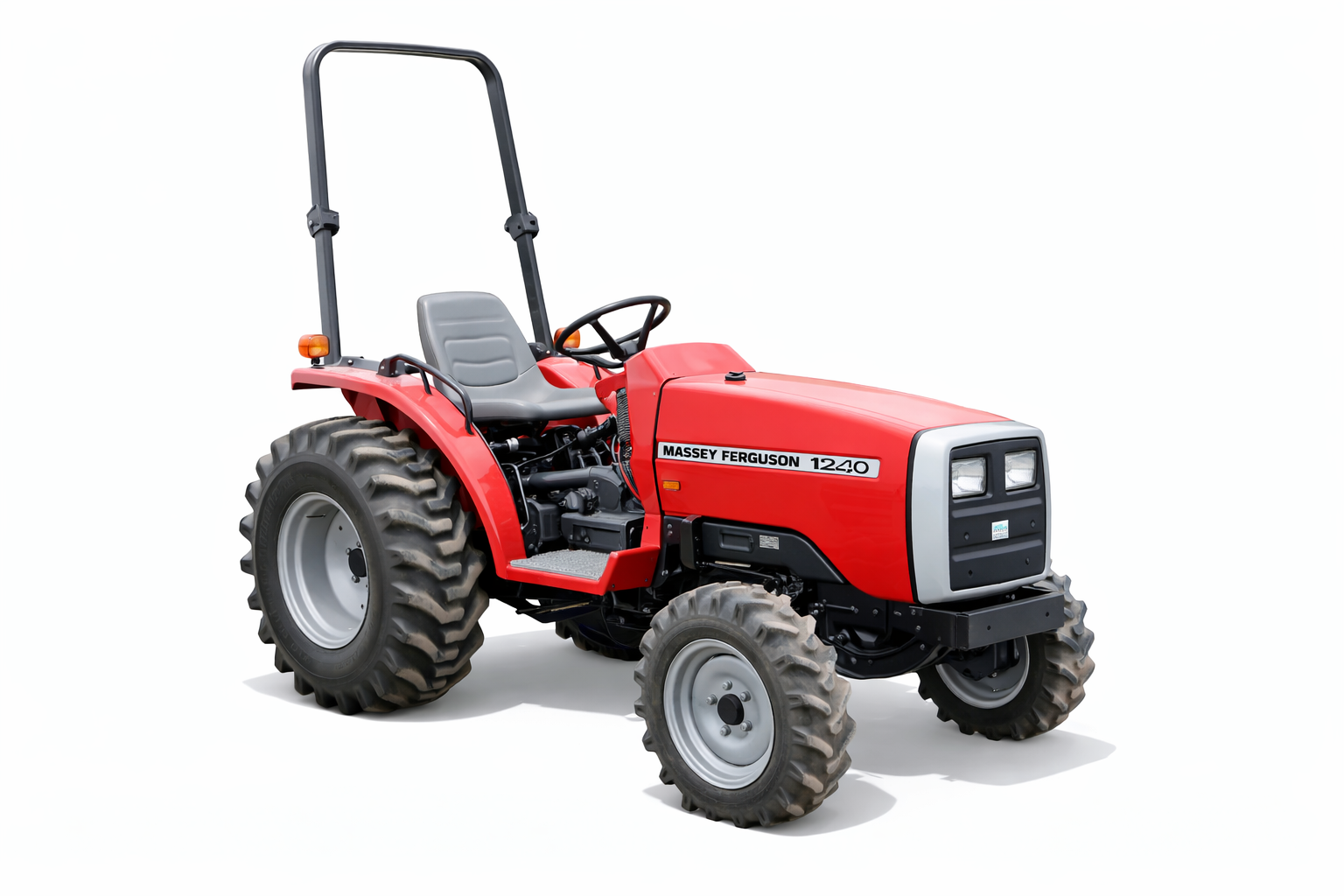

Massey Ferguson 1240 Compact Utility Tractor – Specifications & Overview
EVERY FARM TRACTOR has been exporting Japanese used tractors and agricultural machinery since 2006 to customers in more than 100 countries worldwide.
Below is a detailed, easy-to-read specification guide for the Massey Ferguson 1240, designed to help international buyers clearly understand this model and make inquiries with confidence.
Overview
| Item | Details |
|---|---|
| Model | Massey Ferguson 1240 |
| Series | 1200 Compact Series |
| Tractor Type | Compact Utility Tractor |
| Production Years | 1992 – 2002 |
| Manufacturer | Iseki (Japan) |
| Distributor | Massey Ferguson |
| Country of Manufacture | Japan |
| Original MSRP | Approx. USD 15,000 (1999 reference) |
| Similar Model | Iseki TK527 |
| Variants | 1240-2 (2WD) |
The Massey Ferguson 1240 is a heavier-duty compact tractor within the 1200 Compact Series. With a robust synchro shuttle transmission, high hydraulic capacity, and strong lift performance, it is well suited for loader work, backhoe use, and demanding agricultural tasks.
Engine
| Specification | Details |
|---|---|
| Engine Manufacturer | Iseki |
| Engine Type | Diesel |
| Cylinders | 3-cylinder |
| Displacement | 1.5 L |
| Gross Engine Power | 28.4 hp (21.2 kW) |
| Net Engine Power | 27.6 hp (20.6 kW) |
| Fuel Tank Capacity | 7.9 gal (29.9 L) |
Transmission
| Item | Specification |
|---|---|
| Transmission Type | 16-speed synchro shuttle |
| Drive Options | 2WD or 4WD |
| Steering | Power assist |
| Brakes | Wet disc |
| ROPS | Two-post folding ROPS |
The synchro shuttle transmission allows smooth forward/reverse operation, especially useful for loader and backhoe work.
Power Output
| System | Output |
|---|---|
| PTO Power (claimed) | 22.8 hp (17.0 kW) |
Hydraulics
| Item | Specification |
|---|---|
| Hydraulic Type | Open center |
| Hydraulic Capacity | 6.1 gal (23.1 L) |
| Pump Flow | 6.0 gpm (22.7 L/min) |
| Total Flow | 9.2 gpm (34.8 L/min) |
| Steering Flow | 3.2 gpm (12.1 L/min) |
PTO (Power Take-Off)
| PTO Position | Specification |
|---|---|
| Rear PTO | Independent |
| Rear PTO Speed | 540 rpm (1.375″) |
| Clutch | Electro-hydraulic |
| Engine RPM @ 540 | 2389 rpm |
| Mid PTO | Independent (optional) |
| Mid PTO Speed | 1885 rpm |
| Engine RPM @ 1885 | 2500 rpm |
Hitch
| Item | Specification |
|---|---|
| Rear Hitch Type | Category I |
| Control | Position control |
| Rear Lift Capacity (at ends) | 2866 lbs (1300 kg) |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 64.6 in (164 cm) |
| Operating Weight | 2535 – 2645 lbs |
| Front Tire | 5.00-15 |
| Rear Tire | 11.2-24 |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery Voltage | 12 V |
Attachments
The Massey Ferguson 1240 supports a wide range of attachments, including:
-
60″ Mid-mount mower deck
-
72″ Mid-mount mower deck
-
Front-end loader
-
Backhoe
-
Snowblower
-
Blade
These attachments make the MF 1240 a versatile solution for agriculture, landscaping, construction support, and property maintenance.
Serial Numbers
| Year | Serial Number Start |
|---|---|
| 1992 | A00001 |
| 1993 | B00001 |
| 1994 | C00001 |
| 1995 | D00001 |
| 1996 | E00001 |
| 1997 | FF00001 |
| 1998 | GF00001 |
| 1999 | HF00001 |
| 2000 | JF00001 |
| 2001 | KF00001 |
Summary
The Massey Ferguson 1240 is a rugged, Japanese-built compact utility tractor designed for operators who require strong hydraulics, high lift capacity, and reliable power in a compact frame. Its synchro shuttle transmission, independent PTO, and compatibility with loaders and backhoes make it a standout model in the 1200 Compact Series.
