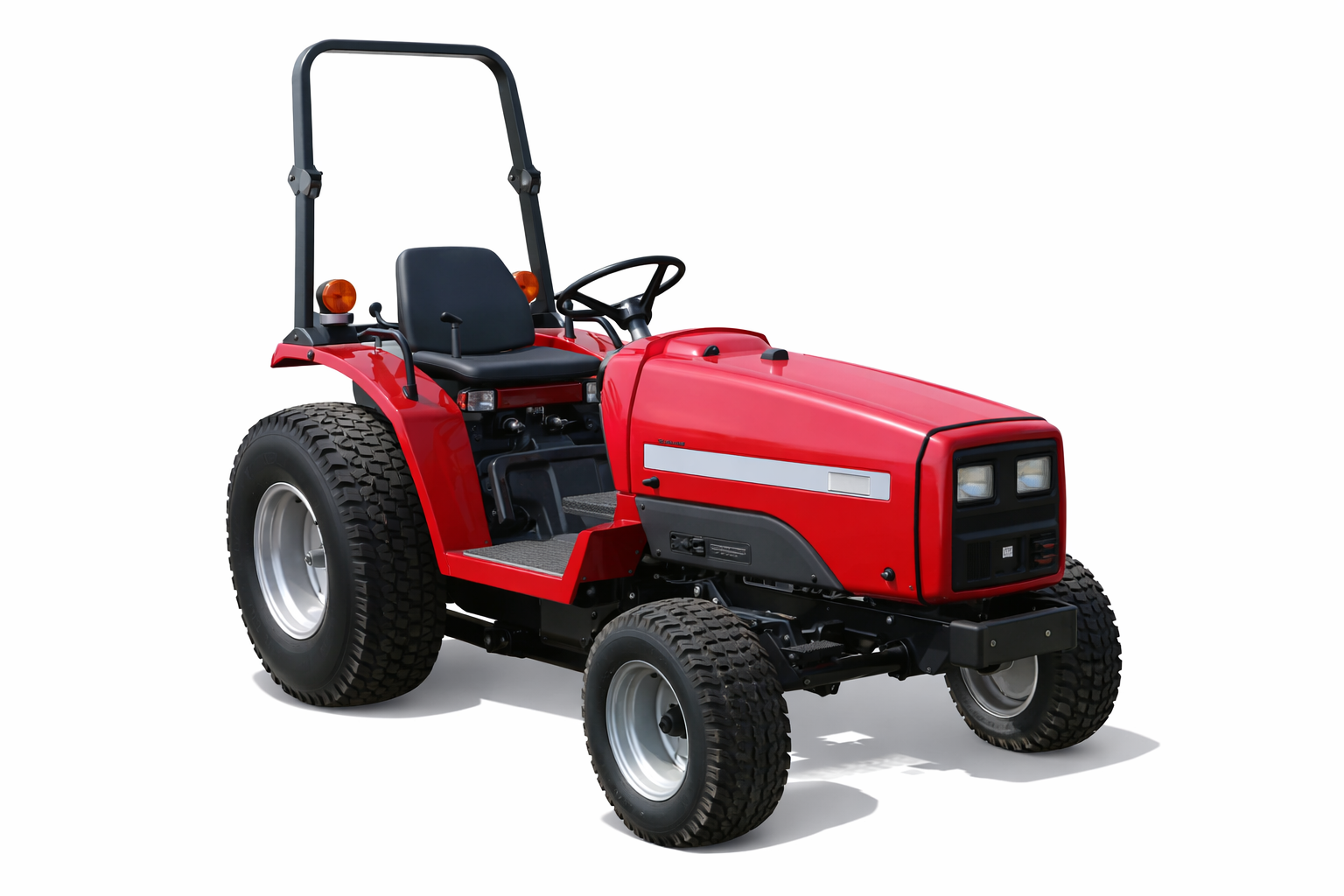

Massey Ferguson 1230 Compact Utility Tractor – Specifications & Overview
EVERY FARM TRACTOR has been exporting Japanese used tractors and agricultural machinery to more than 100 countries since 2006.
Below is a detailed and easy-to-read specification guide for the Massey Ferguson 1230, created to help global buyers quickly understand this model and make inquiries with confidence.
Overview
| Item | Details |
|---|---|
| Model | Massey Ferguson 1230 |
| Series | 1200 Compact Series |
| Tractor Type | Compact Utility Tractor |
| Production Years | 1993 – 2002 |
| Manufacturer | Iseki (Japan) |
| Distributor | Massey Ferguson |
| Country of Manufacture | Japan |
| Original MSRP | Approx. USD 14,000 (1999 reference) |
| Similar Model | Iseki TF325 |
| Variants | Iseki TF223 (similar) |
The Massey Ferguson 1230 is a higher-output model in the 1200 Compact Series, offering increased lifting capacity, strong hydraulics, and a robust Iseki diesel engine. It is widely used for farming, landscaping, mowing, and loader work.
Engine
| Specification | Details |
|---|---|
| Engine Manufacturer | Iseki |
| Engine Type | Diesel |
| Cylinders | 3-cylinder |
| Displacement | 1.4 L |
| Gross Engine Power | 27.0 hp (20.1 kW) |
| Net Engine Power | 25.0 hp (18.6 kW) |
| Fuel Tank Capacity | 6.0 gal (22.7 L) |
Transmission
| Type | Description |
|---|---|
| Gear | 9-speed manual |
| Hydrostatic | Available option |
| Creeper | 12-speed creeper option |
| Drive Options | 2WD or 4WD |
| Differential Lock | Mechanical rear |
| Final Drive | Spur gear |
| Steering | Manual (Power assist optional) |
| Brakes | Mechanical wet disc |
| ROPS | Two-post folding ROPS |
Power Output
| System | Output |
|---|---|
| Gear PTO (claimed) | 21.5 hp (16.0 kW) |
| Hydro PTO (claimed) | 20.0 hp (14.9 kW) |
Hydraulics
| Item | Specification |
|---|---|
| Hydraulic Type | Open center |
| Hydraulic Capacity | 3.2 gal (12.1 L) |
| Pressure | 2130 psi (146.9 bar) |
| Valves | 1 or 2 |
| Pump Flow | 6.0 gpm (22.7 L/min) |
| Total Flow | 8.5 gpm (32.2 L/min) |
| Steering Flow | 2.5 gpm (9.5 L/min) |
PTO (Power Take-Off)
| PTO Position | Specification |
|---|---|
| Rear PTO | Live |
| Rear PTO Speed | 540 rpm (1.375″) |
| Engine RPM @ 540 | 2327 rpm |
| Mid PTO | Live |
| Mid PTO Speed | 2000 rpm |
| Engine RPM @ 2000 | 2500 rpm |
| PTO Clutch | Two-stage dry disc |
Hitch
| Item | Specification |
|---|---|
| Rear Hitch Type | Category I |
| Control | Position control |
| Rear Lift Capacity (ends) | 1984 lbs (899 kg) |
| Rear Lift @ 24 in (610 mm) | 1323 lbs (600 kg) |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 64.6 in (164 cm) |
| Operating Weight | 1719 – 1962 lbs |
| Front Tire | 5.00-15 |
| Rear Tire (2WD) | 12.4-16 |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 40 amps |
| Battery Voltage | 12 V |
| Battery CCA | 582 |
Attachments
The Massey Ferguson 1230 supports a wide range of attachments, including:
-
60″ Mid-mount mower deck
-
72″ Mid-mount mower deck
-
Front-end loader
-
Snowblower
-
Blade
These attachments make the MF 1230 a highly versatile machine for year-round agricultural and property maintenance work.
Serial Numbers
Serial number location:
Right side of the tractor, just ahead and below the seat.
| Year | Serial Number Start |
|---|---|
| 1993 | B30101 |
| 1994 | C30101 |
| 1995 | D30101 |
| 1996 | E30101 |
| 1997 | FC0101 |
| 1998 | BD01001 |
| 1999 | HD01001 |
| 2000 | JD01001 |
| 2001 | KD01001 |
Summary
The Massey Ferguson 1230 is a powerful, Japanese-built compact utility tractor designed for demanding tasks. With its larger displacement Iseki diesel engine, strong hydraulic capacity, and wide attachment compatibility, it is an excellent choice for farmers, contractors, and professional landscapers worldwide.
