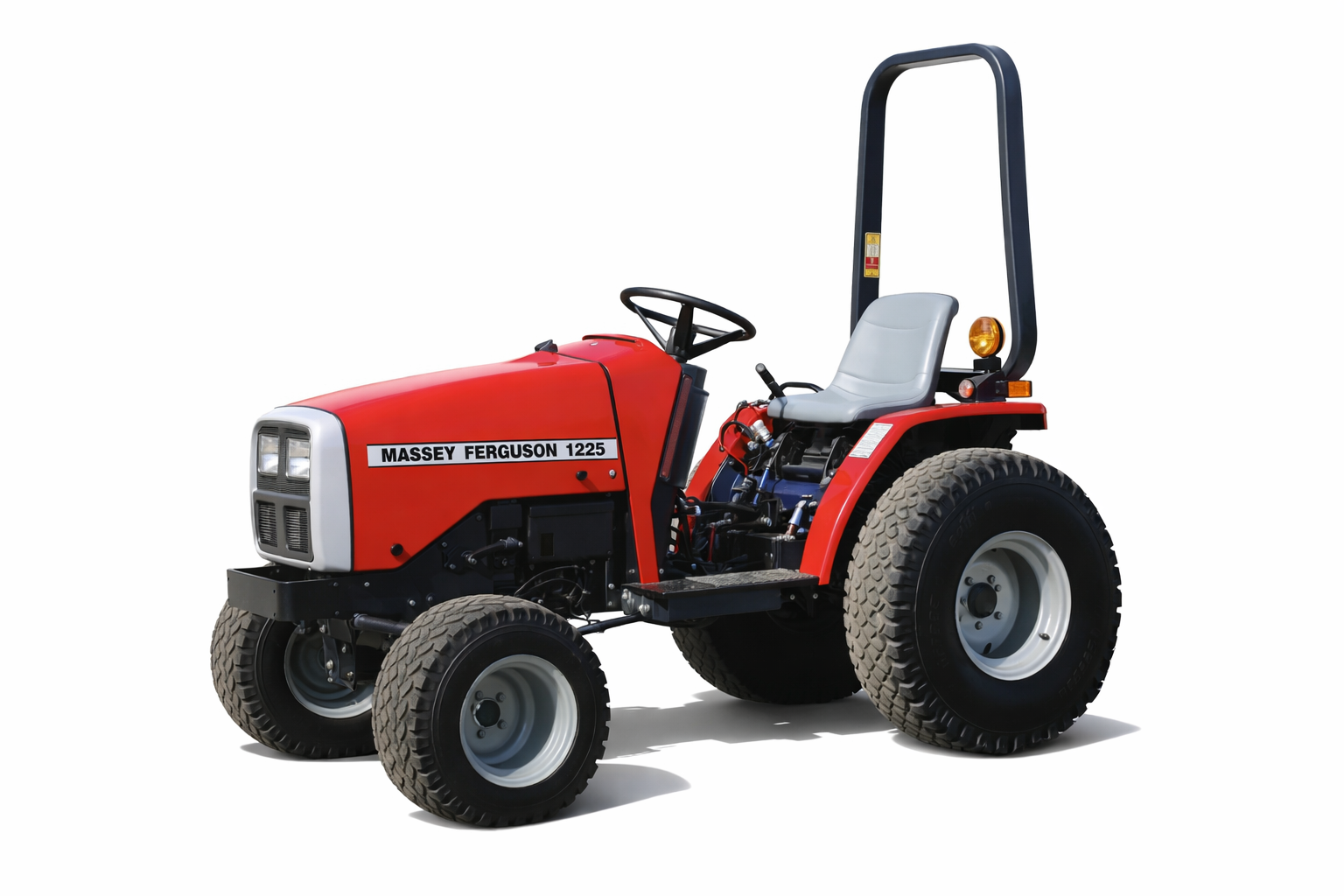

Massey Ferguson 1225 Compact Utility Tractor – Specifications & Overview
EVERY FARM TRACTOR has been exporting Japanese used tractors and agricultural machinery to more than 100 countries since 2006.
Below is a clear and structured specification guide for the Massey Ferguson 1225, helping global buyers quickly understand this model and make inquiries with confidence.
Overview
| Item | Details |
|---|---|
| Model | Massey Ferguson 1225 |
| Tractor Type | Compact Utility Tractor |
| Production Years | 1999 – 2002 |
| Manufacturer | Iseki (Japan) |
| Distributor | Massey Ferguson |
| Country of Manufacture | Japan |
| Original MSRP | Approx. USD 11,500 (1999 reference) |
| Similar Model | Iseki TM223 |
The Massey Ferguson 1225 is a Japanese-built compact tractor designed for efficiency, durability, and ease of operation. Positioned above the MF 1220, it delivers higher power output while maintaining a compact and versatile footprint for farming, landscaping, and utility work.
Engine
| Specification | Details |
|---|---|
| Engine Manufacturer | Iseki |
| Engine Type | Diesel |
| Cylinders | 3-cylinder |
| Displacement | 1.1 L |
| Gross Engine Power | 24.3 hp (18.1 kW) |
| Net Engine Power | 22.5 hp (16.8 kW) |
| Fuel Tank Capacity | 6.1 gal (23.1 L) |
Transmission
| Type | Description |
|---|---|
| Gear | 6-speed manual |
| Hydrostatic | Available option |
| Drive Options | 2WD or 4WD |
| Final Drive | Outboard planetary |
| Steering | Power steering |
| Brakes | Mechanical dry shoe |
| ROPS | Two-post fixed ROPS |
Power Output
| System | Output |
|---|---|
| Gear PTO (claimed) | 19.0 hp (14.2 kW) |
| Hydro PTO (claimed) | 18.4 hp (13.7 kW) |
Hydraulics
| Item | Specification |
|---|---|
| Hydraulic Type | Open center |
| Hydraulic Capacity | 3.7 gal (14.0 L) |
| Pressure | 1990 psi (137.2 bar) |
| Pump Flow | 2.6 gpm (9.8 L/min) |
| Total Flow | 5.3 gpm (20.1 L/min) |
| Steering Flow | 2.7 gpm (10.2 L/min) |
PTO (Power Take-Off)
| PTO Type | Specification |
|---|---|
| Rear PTO (Gear) | Transmission driven |
| Rear PTO (Hydro) | Independent |
| Rear PTO Speed | 540 rpm (1.375″) |
| Engine RPM @ 540 | 2732 rpm (gear) / 2681 rpm (hydro) |
| Mid PTO Speed | 2000 rpm |
Hitch
| Item | Specification |
|---|---|
| Rear Hitch Type | Category I |
| Control | Position control |
| Rear Lift Capacity (at ends) | 1210 lbs (548 kg) |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 59.8 in (151 cm) |
| Operating Weight | 1367 – 1499 lbs |
| Front Tire | 5.00-12 |
| Rear Tire (2WD) | 9.5-16 |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 40 amps |
| Battery Voltage | 12 V |
| Battery CCA | 450 |
Attachments
The Massey Ferguson 1225 supports a range of practical attachments, including:
-
Front-end loader
These attachments allow the tractor to perform loading, transport, and general farm maintenance tasks efficiently.
Serial Numbers
| Year | Serial Number Start |
|---|---|
| 1999 | H01001 |
| 2000 | J01001 |
| 2001 | K01001 |
| 2002 | L01001 |
Summary
The Massey Ferguson 1225 is a dependable, Japanese-built compact utility tractor offering increased horsepower, power steering, and flexible PTO options. With its Iseki diesel engine and strong hydraulic system, it is well suited for small farms, contractors, and professional landscaping operations worldwide.
