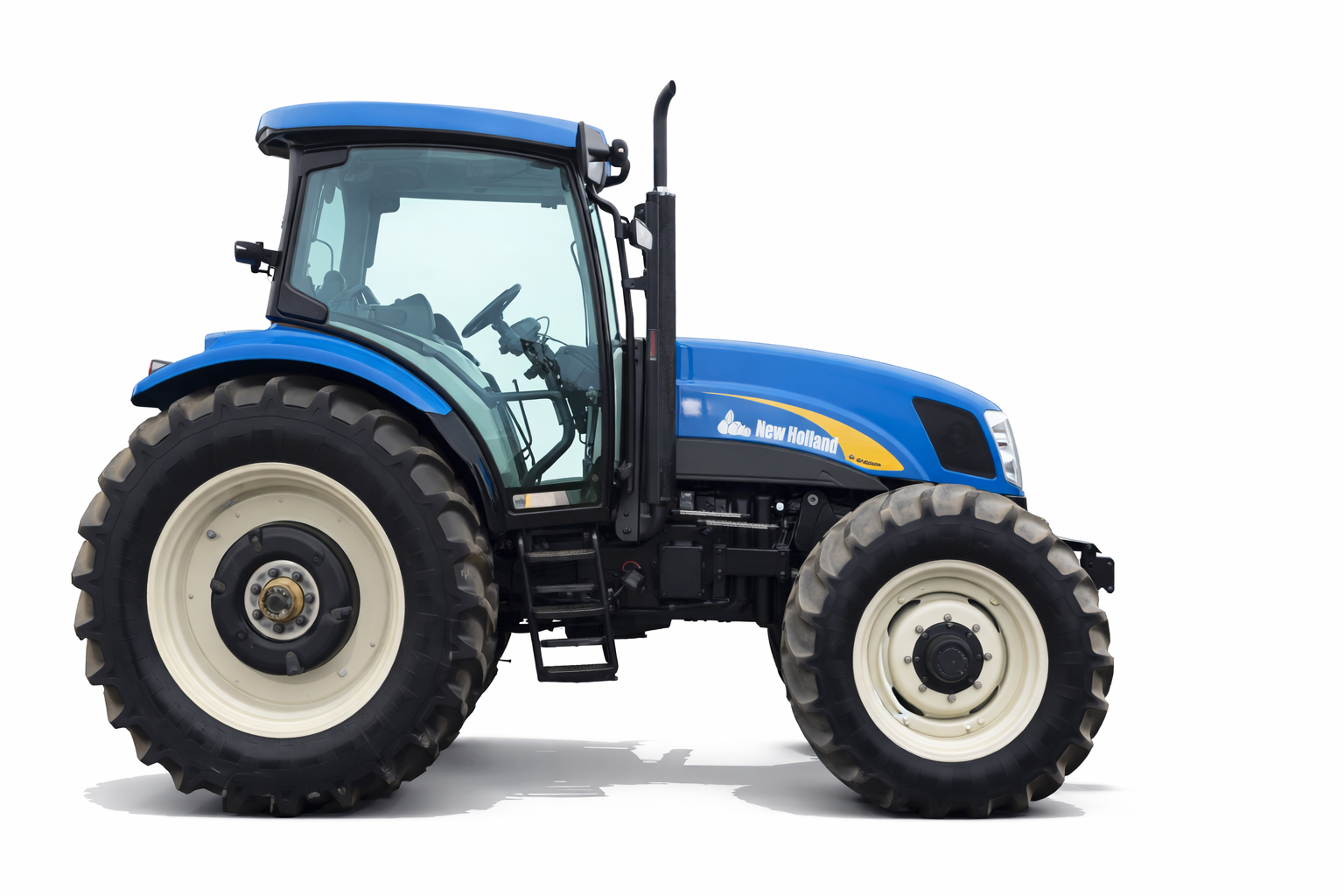

New Holland T6070 Elite
High-Performance Row-Crop Tractor for Professional Farming
Overview
The New Holland T6070 Elite is a premium-class row-crop tractor from the T6000 Series, designed for demanding agricultural operations.
Produced between 2007 and 2012 at New Holland’s Basildon, England factory, this model is well known for its balance of power, efficiency, and operator comfort.
Positioned between the T6060 and T6080, the T6070 Elite delivers strong hydraulic performance, reliable PTO power, and advanced cab technology suitable for long working hours in diverse farming environments.
Series lineup (Elite versions):
-
T6060 Elite – 130 HP
-
T6070 Elite – 140 HP
-
T6080 Elite – 155 HP
Engine
| Item | Specification |
|---|---|
| Engine manufacturer | FPT (Fiat Powertrain Technologies) |
| Engine model | FPT NEF |
| Type | Diesel, 4-stroke |
| Cylinders | 6-cylinder |
| Displacement | 6.7 L |
| Aspiration | Turbocharged |
| Cooling | Liquid-cooled |
The 6.7L FPT engine is recognized worldwide for durability and fuel efficiency, making it suitable for heavy-duty fieldwork and PTO-driven applications.
Power Output
| Measurement | Output |
|---|---|
| Engine power (gross) | 140 HP / 104.4 kW |
| Engine max power | 150 HP / 111.9 kW |
| PTO power (claimed) | 120 HP / 89.5 kW |
| Drawbar power (tested) | 107.4 HP / 80.1 kW |
| PTO power (tested) | 140.3 HP / 104.6 kW |
Transmission
| Type | Details |
|---|---|
| 16-speed | Partial power shift |
| 18-speed | Available option |
| Drive system | Four-wheel drive (4WD) |
These transmission options provide flexibility for both field operations and transport tasks.
Hydraulics
| Item | Specification |
|---|---|
| System type | Closed center load sensing (CCLS) |
| Hydraulic capacity | 18.5 gal / 70.0 L |
| Pump flow | 26.5 gpm / 100.3 lpm |
| Total flow | 43.6 gpm / 165.0 lpm |
| Steering flow | 17.1 gpm / 64.7 lpm |
| Rear remote valves | 2 to 4 |
Hitch & PTO
Rear Hitch
| Item | Specification |
|---|---|
| Hitch type | Category 2 / 3N |
| Control | Electronic lower-link draft control |
| Rated rear lift | 12,185 lbs / 5,527 kg |
Note:
During official performance testing, the actual lift at maximum height was 11,355 lbs, slightly below the advertised rating.
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| PTO type | Independent |
| PTO speeds | 540 / 1000 rpm (1.375 in) |
Dimensions & Weight
| Item | Specification |
|---|---|
| Wheelbase (standard) | 104.4 in / 265 cm |
| Wheelbase (Terraglide axle) | 95.3 in / 242 cm |
| Wheelbase (SuperSteer axle) | 99.2 in / 251 cm |
| Operating weight | 11,836 – 12,180 lbs |
Capacities
| Item | Capacity |
|---|---|
| Fuel tank | 79.3 gal / 300.2 L |
| Hydraulic system | 18.5 gal / 70.0 L |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging system | Alternator |
| Output | 120 amps |
| Voltage | 12 V |
| Battery capacity | 1300 CCA |
Operator Environment & Features
-
Horizon Cab (standard) with air-conditioning
-
Optional deluxe cab with automatic temperature control
-
Optional air-ride seat
-
Optional Comfort Ride cab suspension
-
Hydrostatic power steering
-
Hydraulic wet disc brakes
-
Programmable headland management system
These features significantly reduce operator fatigue during long working days.
Variants
| Model | Positioning |
|---|---|
| T6070 Plus | Mid-level specification |
| T6070 Elite | Premium specification |
