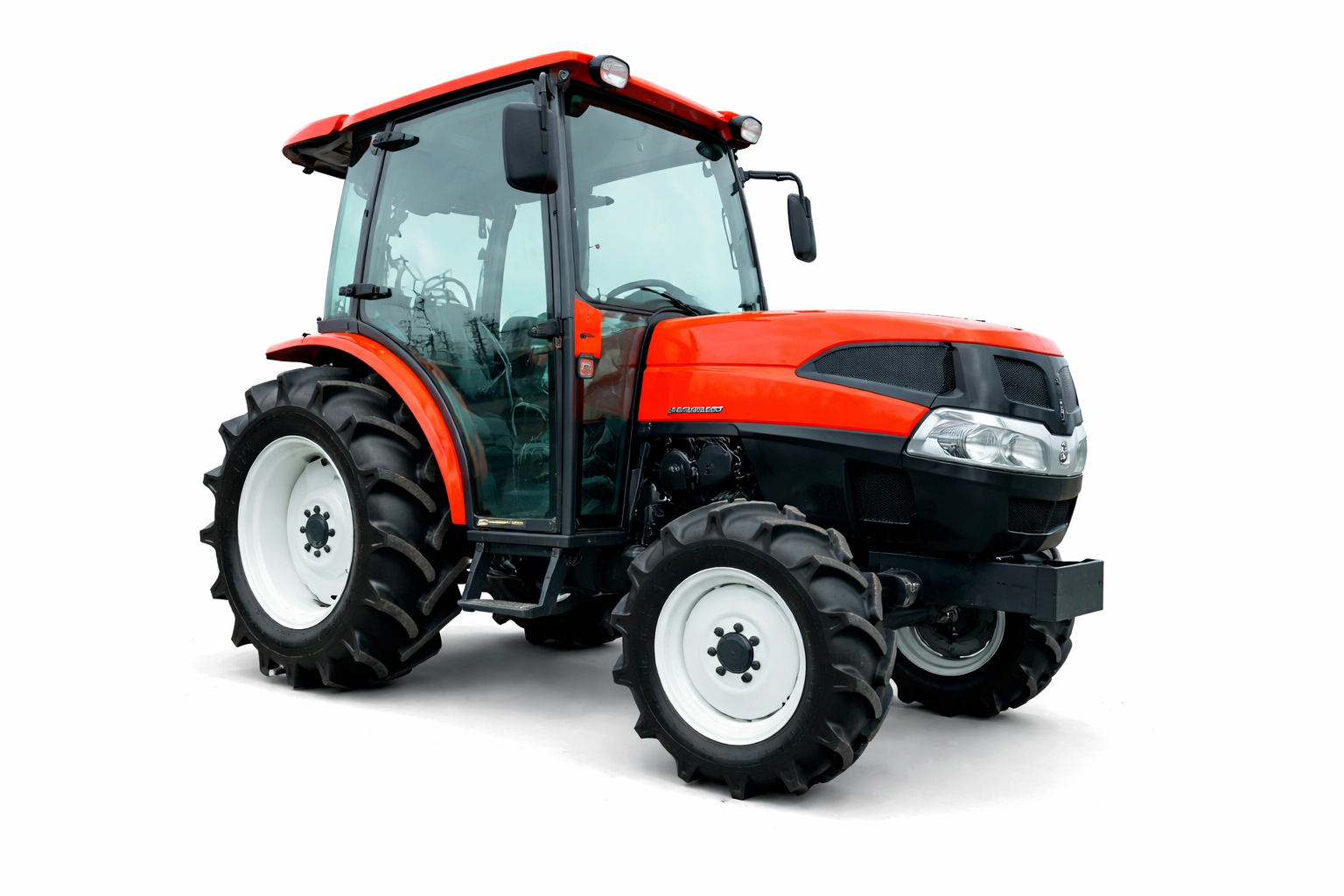

Kubota KL345 Compact Utility Tractor
Overview
The Kubota KL345 is a compact utility tractor from Kubota’s KL Series, produced between 2008 and 2009.
Positioned above the KL315 and below the KL385, the KL345 offers higher power output and refined performance, making it suitable for demanding agricultural work and utility applications.
Available in both standard (KL345) and high-speed (KL345H) variants, this model combines strong engine performance with excellent maneuverability and reliability.
Key Specifications Overview
| Item | Specification |
|---|---|
| Model | Kubota KL345 |
| Series | KL Series |
| Production Years | 2008 – 2009 |
| Tractor Type | Compact Utility Tractor |
| Variants | KL345 (Standard), KL345H (High-Speed) |
| Drive System | 4WD |
| Steering | Power Steering |
| Brakes | Mechanical wet disc |
| ROPS | Two-post ROPS (Cab optional) |
Engine
The Kubota KL345 is equipped with a high-capacity Kubota diesel engine, delivering stable power and strong torque for continuous operation.
| Item | Specification |
|---|---|
| Engine Manufacturer | Kubota |
| Engine Type | Diesel |
| Cylinders | 3 |
| Displacement | 1.8 L |
| Rated Engine Power | 33.5 hp (25.0 kW) |
| Fuel Tank Capacity | 10.6 gal (40.1 L) |
| Electrical System | 12V, Negative Ground |
This engine is designed for durability, fuel efficiency, and consistent performance under heavy workloads.
Transmission
The KL345 offers flexible transmission options to match different operating needs.
| Transmission Type | Details |
|---|---|
| Mechanical | Yes |
| Available Gears | 16-speed / 24-speed |
| High-Speed Variant | KL345H available |
| Drive | Four-wheel drive |
The wide gear range supports precise field work as well as efficient transport.
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| Rear PTO Type | 540 rpm (1.375 in) |
| PTO Speeds @ 2700 rpm | 561 / 791 / 980 / 1307 |
| Reverse PTO | -980 @ 2700 rpm |
The PTO system is compatible with a wide range of implements including rotary tillers, mowers, and spreaders.
Hitch System
| Item | Specification |
|---|---|
| Rear Hitch Type | Category I |
Supports standard Category I implements commonly used in compact and utility farming.
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 68.7 in (174 cm) |
| Operating Weight | 2,932 – 3,406 lb |
| Front Tire Size | 8-16 |
| Rear Tire Size | 13.6-24 |
The wider rear tires enhance traction and stability during heavy-duty operations.
Braking & Chassis
| Item | Specification |
|---|---|
| Braking System | Mechanical wet disc brakes |
| Frame Type | Compact utility tractor frame |
Wet disc brakes provide consistent stopping power in both field and transport conditions.
KL Series Position
| Model | Production Years | Power Output |
|---|---|---|
| KL315 | 2008 – 2009 | 22.8 kW |
| KL345 | 2008 – 2009 | 25.0 kW |
| KL385 | 2008 – 2009 | 27.9 kW |
| KL330 | 2006 – 2007 | Previous generation |
Photos
Photos of the Kubota KL345 are available, including crawler and field-use images.
All photos are used with permission from the original photographer.
Why Choose the Kubota KL345?
-
33.5 hp engine for high workload efficiency
-
Available high-speed variant for transport tasks
-
Strong PTO and 4WD performance
-
Ideal for farming, land management, and utility operations
