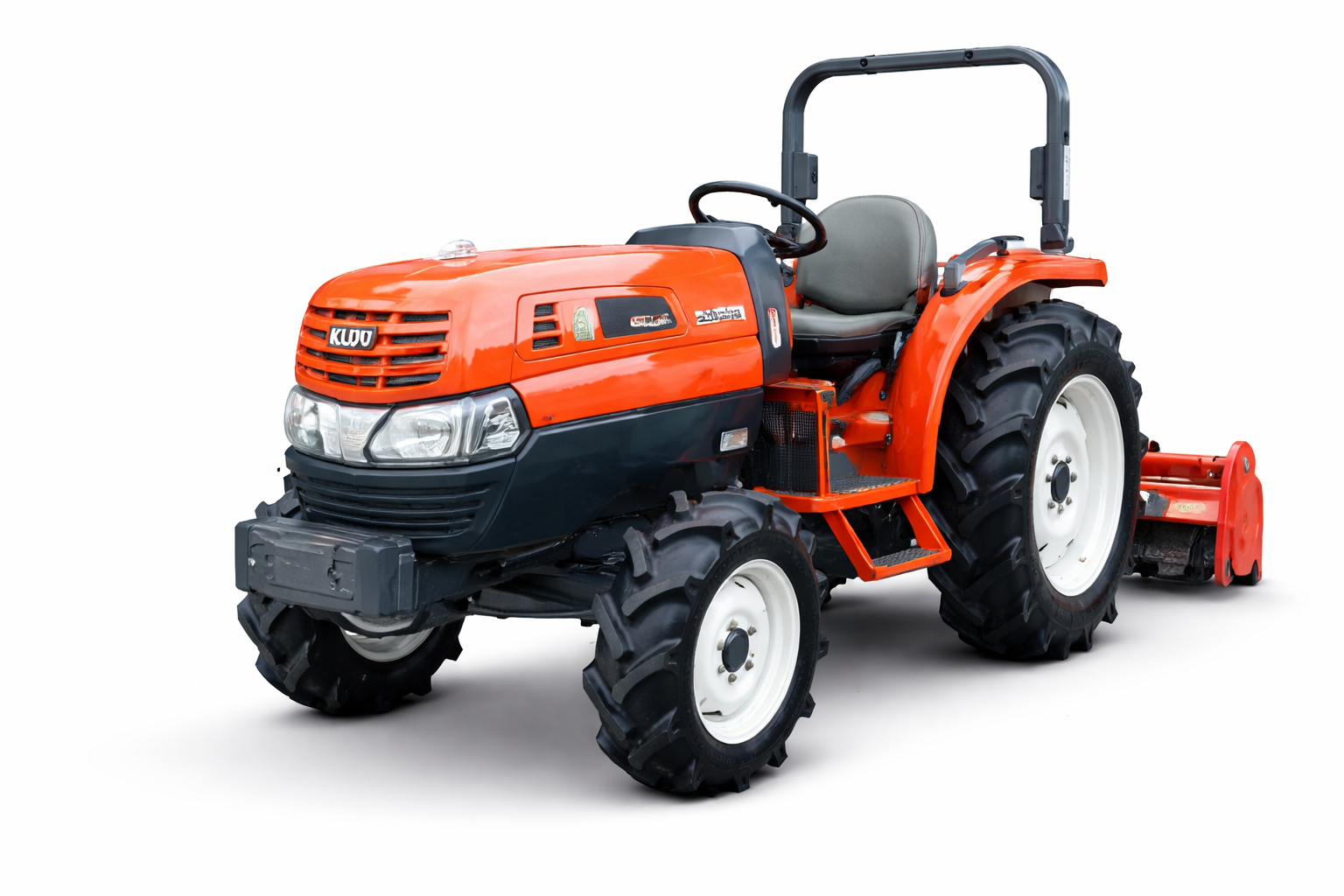

Kubota KL300 Compact Utility Tractor
Overview
The Kubota KL300 is a compact utility tractor from Kubota’s KL Series, produced between 2006 and 2007.
Positioned above the KL270 and below the KL330, the KL300 delivers increased power while retaining compact dimensions, making it suitable for a wide range of agricultural and utility applications.
With a robust Kubota diesel engine, selectable transmission options, and reliable four-wheel drive, the KL300 is ideal for farming, land maintenance, and PTO-driven work.
Key Specifications Overview
| Item | Specification |
|---|---|
| Model | Kubota KL300 |
| Series | KL Series |
| Production Years | 2006 – 2007 |
| Tractor Type | Compact Utility Tractor |
| Drive System | 4WD |
| Steering | Power Steering |
| Brakes | Mechanical wet disc |
| ROPS | Two-post ROPS (Cab optional) |
Engine
The Kubota KL300 is powered by a durable Kubota diesel engine designed for stable performance and fuel efficiency.
| Item | Specification |
|---|---|
| Engine Manufacturer | Kubota |
| Engine Type | Diesel |
| Cylinders | 3 |
| Displacement | 1.5 L |
| Rated Engine Power | 29.6 hp (22.1 kW) |
| Fuel Tank Capacity | 10.6 gal (40.1 L) |
| Electrical System | 12V, Negative Ground |
This engine provides strong torque output suitable for both field work and transport tasks.
Transmission
The KL300 offers multiple transmission configurations to adapt to different working conditions.
| Transmission Type | Details |
|---|---|
| Mechanical | Yes |
| Available Gears | 16-speed / 24-speed |
| Drive | Four-wheel drive |
The wide gear range allows precise speed control for various farming and utility operations.
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| Rear PTO Type | 540 rpm (1.375 in) |
| PTO Speeds @ 2700 rpm | 541 / 763 / 945 / 1260 |
| Reverse PTO | -945 @ 2700 rpm |
The PTO system supports a wide variety of implements, including rotary tillers, mowers, and spreaders.
Hitch System
| Item | Specification |
|---|---|
| Rear Hitch Type | Category I |
Compatible with standard Category I implements commonly used in compact and utility farming.
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 68.7 in (174 cm) |
| Operating Weight | 2,910 – 3,296 lb |
| Front Tire Size | 8-16 |
| Rear Tire Size | 12.4-26 |
The slightly longer wheelbase and wider rear tires provide improved stability during heavy-duty operations.
Braking & Chassis
| Item | Specification |
|---|---|
| Braking System | Mechanical wet disc brakes |
| Frame Type | Compact utility tractor frame |
Wet disc brakes ensure reliable stopping power even under load or on uneven terrain.
KL Series Position
| Model | Production Years | Power Output |
|---|---|---|
| KL270 | 2006 – 2007 | 19.9 kW |
| KL300 | 2006 – 2007 | 22.1 kW |
| KL330 | 2006 – 2007 | 24.3 kW |
| KL315 | 2008 – 2009 | Successor |
| KL30 | 1999 – 2005 | Previous generation |
Photos
Currently, no official photos of the Kubota KL300 are available.
Image submissions may be used only with permission from the original photographer.
Why Choose the Kubota KL300?
-
Higher output engine within the KL Series
-
Compact size with increased working capacity
-
Reliable 4WD and strong PTO performance
-
Suitable for farming, estate management, and utility use
