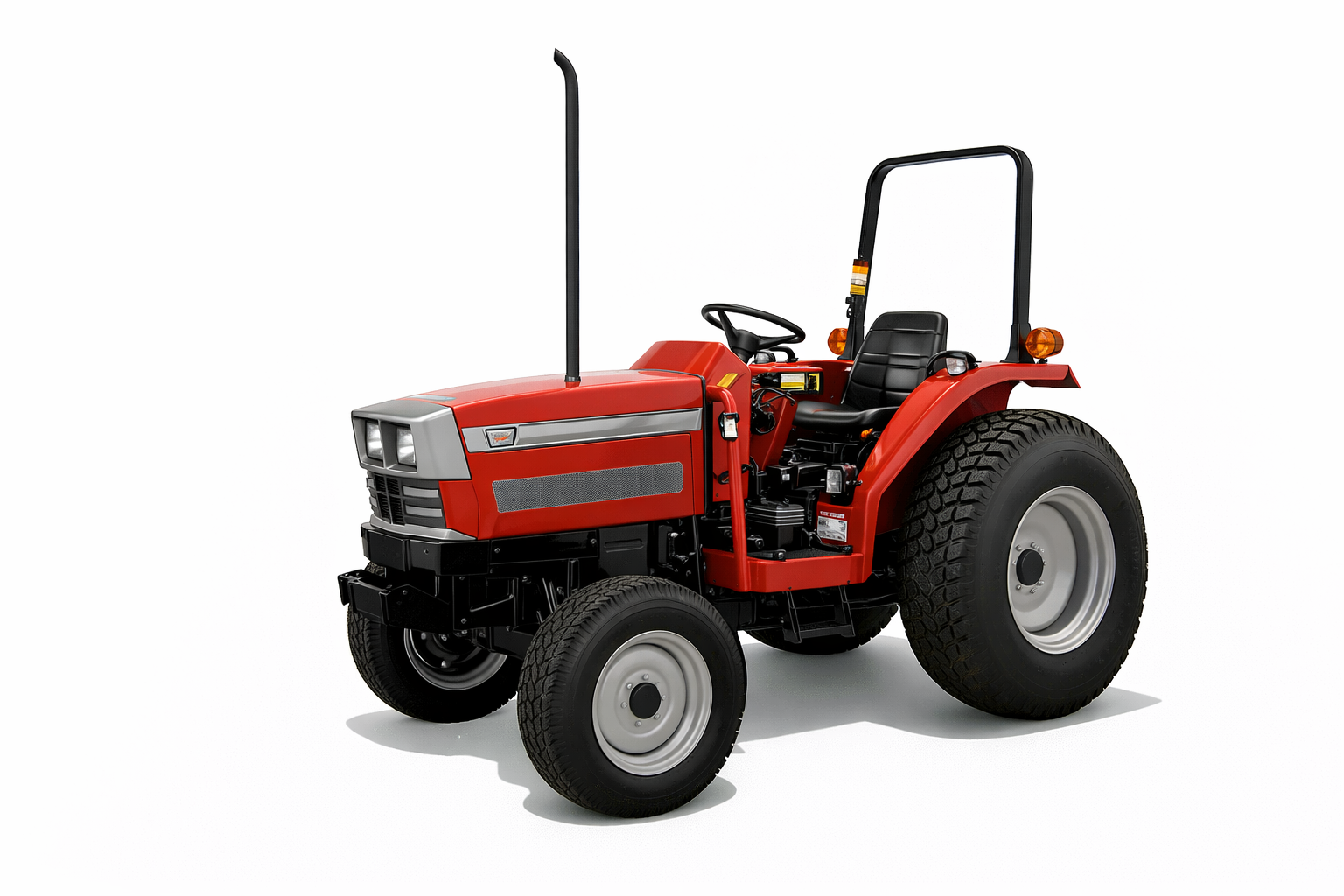

Massey Ferguson 1140 – Compact Utility Tractor (Japan Built)
Overview
The Massey Ferguson 1140 is a compact utility tractor produced from 1991 to 1993. Distributed worldwide by Massey Ferguson and built in Japan by Iseki, the MF 1140 sits in the 1100 Series between the MF 1125 and MF 1145.
It combines a strong Isuzu diesel engine, versatile 16-speed transmission, and optional mid-PTO—ideal for loader work, mowing, and general property maintenance.
Key Highlights
-
Production years: 1991–1993
-
Tractor type: Compact Utility
-
Build origin: Japan
-
Drive options: 2WD / 4WD
-
ROPS: Two-post fixed
-
Original price (1992): USD 13,200
Engine
Powered by a durable Isuzu diesel known for smooth operation and longevity.
| Item | Specification |
|---|---|
| Engine manufacturer | Isuzu |
| Engine type | Diesel |
| Displacement | 1.5 L |
| Cylinders | 3 |
| Rated engine power | 30 hp / 22.4 kW |
Transmission
| Item | Specification |
|---|---|
| Transmission type | 16-speed |
| Synchronization | Partially synchronized |
Wide gearing allows precise speed selection for fieldwork and PTO tasks.
Power
| Measurement | Output |
|---|---|
| Engine power | 30 hp / 22.4 kW |
| PTO power (claimed) | 26.2 hp / 19.5 kW |
Mechanical & Operator Features
-
Drive: Two- or four-wheel drive
-
Steering: Power steering
-
Brakes: Mechanical wet disc brakes
-
ROPS: Two-post fixed
-
PTO clutch: Electro-hydraulic
Capacity
| Item | Capacity |
|---|---|
| Fuel tank | 7.9 gal / 29.9 L |
| Hydraulic system | 6.6 gal / 25.0 L |
| Steering system | 2.8 qts / 2.6 L |
Hydraulics
| Specification | Value |
|---|---|
| Type | Open center |
| Capacity | 6.6 gal / 25.0 L |
| System pressure | 2,133 psi / 147.1 bar |
| Valves | Up to 2 (optional) |
| Pump flow | 6.9 gpm / 26.1 L/min |
Hitch & PTO
| Item | Specification |
|---|---|
| Rear hitch | Type I |
| Hitch control | Position control |
| Rear lift (ends) | 2,866 lbs / 1,300 kg |
| Rear lift @ 24 in (610 mm) | 1,785 lbs / 809 kg |
| Rear PTO | Independent |
| Rear PTO speed | 540 rpm (1.375″) |
| Mid PTO | Independent (optional) |
| Mid PTO speed | 1,950 rpm (1.00″ 15-spline) |
| Engine RPM @ Mid PTO | 1,960 @ 2,600 rpm |
Dimensions & Tires
| Item | Measurement |
|---|---|
| Wheelbase | 67 in / 170 cm |
| Weight | 2,590 – 2,700 lbs |
| Front tires | 5.00×15 |
| Rear tires | 12.4×24 (2WD) |
Attachments
| Attachment | Availability |
|---|---|
| Front-end loader | Supported |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging system | Alternator |
| Charging output | 40 amps |
| Battery voltage | 12 V |
| Battery CCA | 670 |
Photos
Photos of the Massey Ferguson 1140 are available upon request.
Summary
The Massey Ferguson 1140 is a versatile Japanese-built compact tractor offering:
-
Reliable 30 hp Isuzu diesel performance
-
Strong hydraulics and independent PTO options
-
Excellent loader and mower compatibility
A practical choice for farms, estates, and landscaping operations worldwide.
