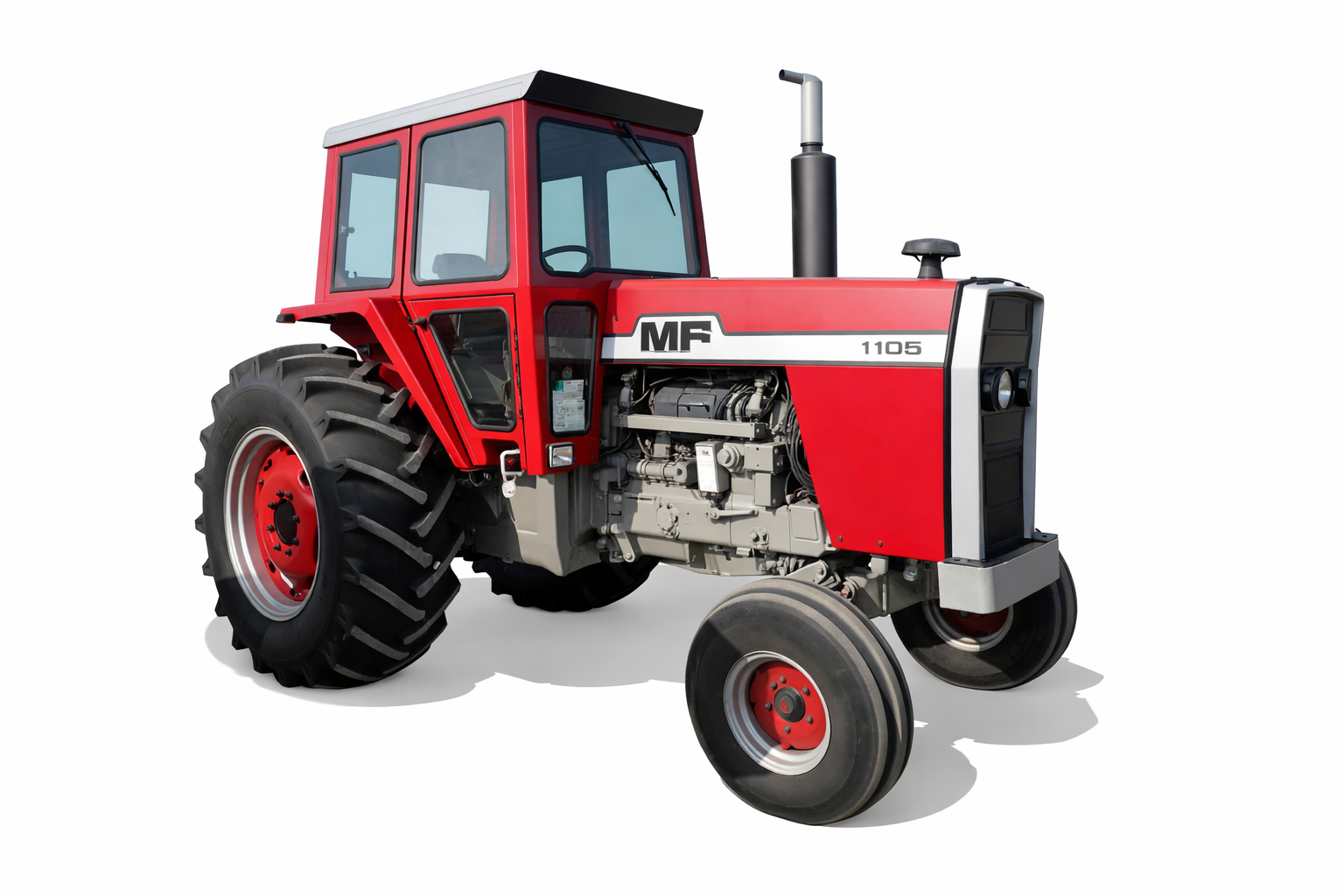

Massey Ferguson 1105 – High-Output Row-Crop Tractor
Overview
The Massey Ferguson 1105 is a powerful row-crop tractor produced from 1973 to 1978 as part of the next-generation lineup following the MF 1100. Manufactured by Massey Ferguson, the 1105 was designed for farmers who needed higher PTO output, improved hydraulics, and reliable performance for heavy-duty fieldwork.
With strong Perkins diesel power and a robust drivetrain, the MF 1105 remains a popular used tractor in global agricultural markets.
Key Highlights
-
Production years: 1973–1978
-
Tractor type: Row-Crop
-
Drive: 2WD
-
Original price (1978): USD 20,000
-
Cab: Optional (open station standard)
Engine
The Massey Ferguson 1105 is powered by a proven Perkins diesel engine known for torque, fuel efficiency, and long service life.
| Item | Specification |
|---|---|
| Engine manufacturer | Perkins |
| Engine type | Diesel |
| Displacement | 5.8 L |
| Cylinders | 6 |
| Aspiration | Naturally aspirated |
Estimated Engine Power (Series Comparison)
-
MF 1085: 90.0 hp
-
MF 1105: 123.3 hp
-
MF 1135: 134.4 hp
Transmission
Operators could choose between smooth power shifting or a traditional gear transmission.
| Transmission | Details |
|---|---|
| Power Shift | 12-speed, two-speed power shift |
| Gear | 8-speed manual |
Power & Performance
Tested performance data confirms strong and consistent power delivery.
| Measurement | Power | kW |
|---|---|---|
| Drawbar (claimed) | 83 hp | 61.9 kW |
| Drawbar (tested) | 83.52 hp | 62.3 kW |
| PTO (claimed) | 111 hp | 82.8 kW |
| PTO (tested) | 110.72 hp | 82.6 kW |
Mechanical & Operator Features
-
Drive: Two-wheel drive (2WD)
-
Steering: Power steering
-
Brakes: Hydraulic disc brakes
-
Operator station: Open station standard
-
Cab: Optional
Capacity
| Item | Capacity |
|---|---|
| Fuel tank | 55 gal / 208.2 L |
| Hydraulic system | 22 gal / 83.3 L |
Hydraulics
| Specification | Value |
|---|---|
| Type | Closed center |
| Capacity | 22 gal / 83.3 L |
| System pressure | 2,100 psi / 144.8 bar |
| Pump flow | 20 gpm / 75.7 L/min |
Hitch & PTO
| Item | Specification |
|---|---|
| Rear hitch | Type II / III |
| Hitch control | Position & draft control |
| Rear PTO | Independent |
| PTO speeds | 540 / 1000 rpm |
| Engine RPM @ PTO | 540 @ 2000 rpm / 1000 @ 2000 rpm |
Dimensions & Tires
| Item | Measurement |
|---|---|
| Wheelbase | 109 in / 276 cm |
| Weight | 10,750 – 12,320 lbs |
| Front tires | 11.00-16 |
| Rear tires | 18.4-38 |
Attachments
The MF 1105 supports a variety of farm implements.
| Attachment | Availability |
|---|---|
| Front-end loader | Supported |
Electrical System
| Item | Specification |
|---|---|
| Charging system | Alternator |
| Voltage | 12 V |
Production & Serial Numbers
-
Serial number location: In front of instrument panel (left side)
| Year | Serial Number |
|---|---|
| 1972 | 9B36563 |
| 1973 | 9B36851 |
| 1974 | 9B42685 |
| 1975 | 9B50494 |
| 1976 | 9B58735 |
| 1977 | 9B66276 |
| 1978 | 9B74241 |
| 1979 | 9B76058 |
Tests
Official performance tests show that the Massey Ferguson 1105 delivers excellent PTO efficiency, steady drawbar output, and reliable hydraulic response, making it well-suited for plowing, planting, and PTO-driven implements.
Photos
Catalog-style photos of the Massey Ferguson 1105 are available upon request. EVERY FARM TRACTOR can provide clean white-background images optimized for website listings and international buyers.
