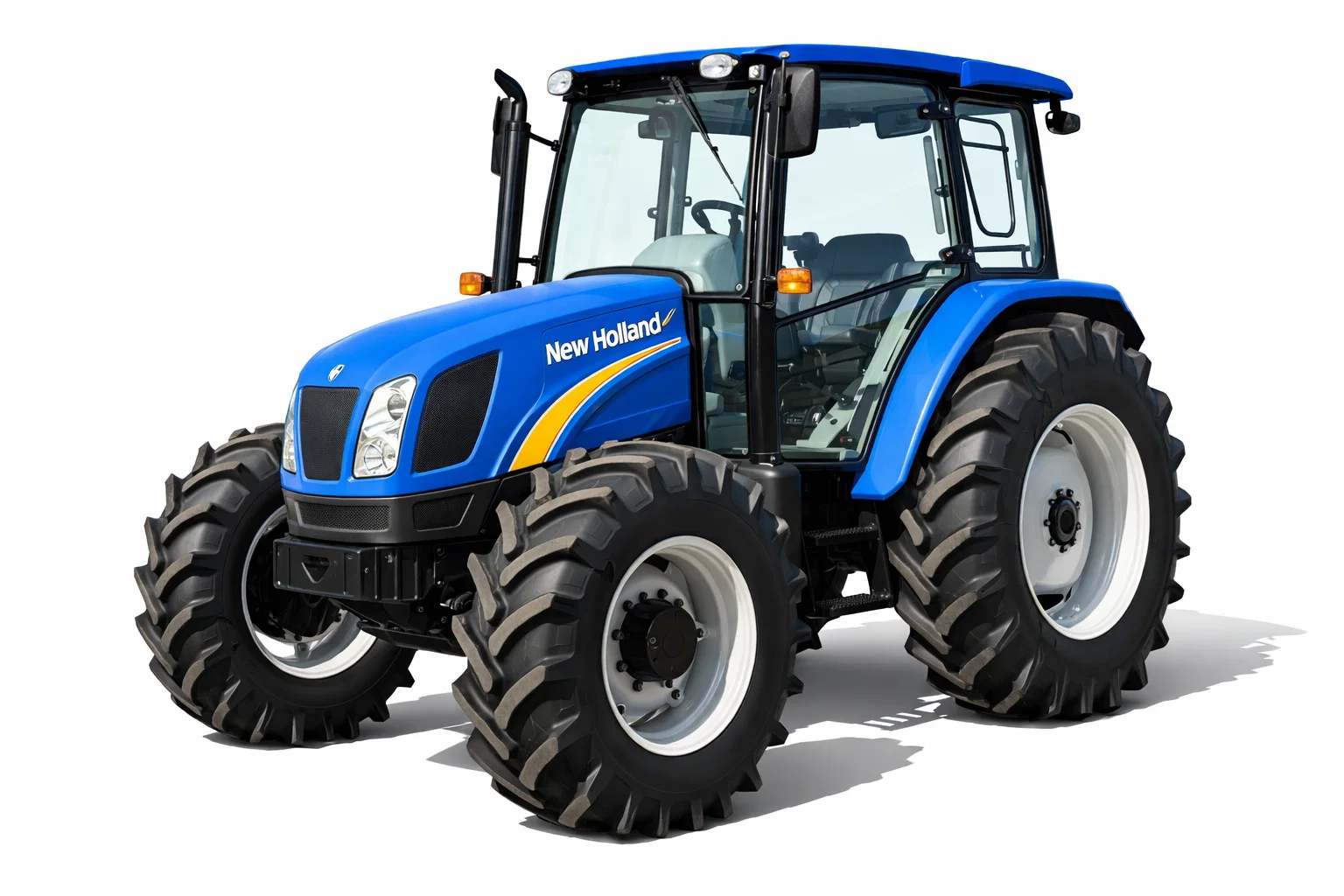

Overview – New Holland T5070 Utility Tractor
The New Holland T5070 belongs to the trusted T5000 Series, designed for medium to heavy-duty farming.
It delivers higher output than the T5060 while maintaining balance and operator comfort.
| Item | Details |
|---|---|
| Model | New Holland T5070 |
| Production Years | 2008 – 2013 |
| Series | T5000 Series |
| Tractor Type | Utility Tractor |
| Manufacturer | New Holland |
| Built In | Jesi, Italy |
| Drive System | 2WD / 4WD |
| Platform | Flat deck with ROPS |
| Cab | Optional cab with heater & air-conditioning |
As a result, the T5070 works well in crop farming, livestock operations, and transport tasks.
Engine – High-Output 4.5L Diesel Power
The T5070 uses a robust New Holland diesel engine with strong torque and smooth power delivery.
It handles heavy PTO and drawbar work with confidence.
| Item | Specification |
|---|---|
| Engine Model | New Holland diesel |
| Engine Type | 4-cycle diesel |
| Displacement | 4.5 L |
| Cylinders | 4-cylinder |
| Engine Power (Gross) | 115 hp |
| Rated Power | 85.8 kW |
| Fuel Tank Capacity | 126.8 L |
Because of its large displacement, the engine keeps performance stable even under load.
Therefore, it suits professional farms worldwide.
Transmission – Power Shuttle for Smooth Control
The New Holland T5070 focuses on power-shuttle transmissions for efficient operation.
| Transmission Options |
|---|
| 12-speed power shuttle |
| 24-speed power shuttle |
Consequently, operators enjoy smooth shifting during loader work and frequent direction changes.
Power & Tested Performance
The T5070 delivers strong and verified output across engine, PTO, and drawbar.
| Item | Output |
|---|---|
| Engine Power | 115 hp (85.8 kW) |
| PTO Power (claimed) | 96 hp (71.6 kW) |
| PTO Power (tested) | 103.0 hp (76.8 kW) |
| Drawbar Power (tested) | 77.8 hp (58.0 kW) |
Thus, it performs efficiently with balers, large mowers, and PTO-driven equipment.
Hydraulics – Strong and Responsive System
The hydraulic system supports demanding implements and front loaders.
| Item | Specification |
|---|---|
| Hydraulic Type | Open center |
| System Pressure | 198 bar |
| Pump Flow | 60.9 L/min |
| Steering Flow | 39.4 L/min |
| Rear Valves | 2–3 |
| Mid Valves | 0–2 |
Thanks to this capacity, the T5070 maintains smooth attachment control.
Hitch & PTO
| Item | Specification |
|---|---|
| Rear Hitch Type | Category II |
| Lift Capacity (610 mm) | 2,483 kg |
| Max Lift (Optional) | 3,086 kg |
| Rear PTO Type | 540 / 1000 rpm |
| PTO Control | Independent |
Therefore, the tractor supports a wide range of modern implements.
Dimensions & Stability
| Item | Specification |
|---|---|
| Wheelbase | 234 cm |
This wheelbase improves balance and traction during heavy field work.
Attachments – Loader Ready
The New Holland T5070 supports front-end loader installation.
As a result, it works well for feeding, loading, and material handling tasks.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 120 amps |
| Battery Voltage | 12 V |
| Battery CCA | 960 |
This system ensures reliable starting in various climates.
Why Choose a Used New Holland T5070?
Many buyers search for a Used New Holland Tractor because of power and reliability.
The T5070 stands out for clear reasons:
-
Powerful 115 hp diesel engine
-
Smooth power-shuttle transmission
-
Strong hydraulics and high lift capacity
-
PTO 540/1000 rpm versatility
-
Italian-built quality with proven durability
In addition, used tractors from trusted exporters provide excellent value.
