Iseki TS2202 Compact Utility Tractor – Specifications & Overview
Overview
The Iseki TS2202 is a compact utility tractor designed for reliable performance in small to mid-scale farming, orchards, and general property maintenance. Produced from 1979 onward (exact end year varies by market), the TS2202 represents an evolution of the TS Series with 4WD capability and a more powerful diesel engine compared with earlier TS models.
Built by Iseki in Japan, the TS2202 focuses on traction, mechanical durability, and ease of operation—qualities that have made it a popular choice in export markets where dependable compact tractors are essential.
Variants
| Model | Drive |
|---|---|
| TS2202 | 4WD |
| TS2205 | 2WD |
Engine
| Item | Specification |
|---|---|
| Engine manufacturer | Isuzu |
| Engine type | Diesel |
| Cylinders | 2 |
| Displacement | 1.2 L |
| Rated engine power | 21.7 hp (16.2 kW) |
| Fuel tank capacity | 15.9 L (4.2 gal) |
The Isuzu 1.2-liter diesel engine delivers strong low-rpm torque and excellent fuel efficiency, making it suitable for continuous agricultural work with low running costs.
Transmission
| Item | Specification |
|---|---|
| Transmission type | Mechanical |
| Number of speeds | 18-speed |
| Drive system | Four-wheel drive (TS2202) |
The wide 18-speed gearbox allows precise speed selection for tilling, cultivation, and PTO-driven tasks.
Power & Operator Features
| Item | Specification |
|---|---|
| Engine power | 21.7 hp |
| Drive | 4WD |
| Operator station | Open platform |
The open operator station keeps the tractor lightweight and easy to maintain, especially suitable for warm climates and short-to-medium work cycles.
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| Rear PTO type | 540 (1.375 in) |
| PTO engine speeds | 537 @ 2300 rpm |
| 711 @ 2300 rpm | |
| 890 @ 2300 rpm | |
| 1274 @ 2300 rpm |
Multiple PTO speed options support a wide range of implements such as rotary tillers, mowers, and sprayers.
Tractor Hitch
| Item | Specification |
|---|---|
| Rear hitch type | JIS Category 0 |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 137 cm (54.1 in) |
| Operating weight | 850 kg (1,874 lbs) |
| Front tires | 6-14 |
| Rear tires | 8.3/8-22 |
The compact wheelbase combined with 4WD provides excellent maneuverability and traction on uneven or soft ground.
Photos

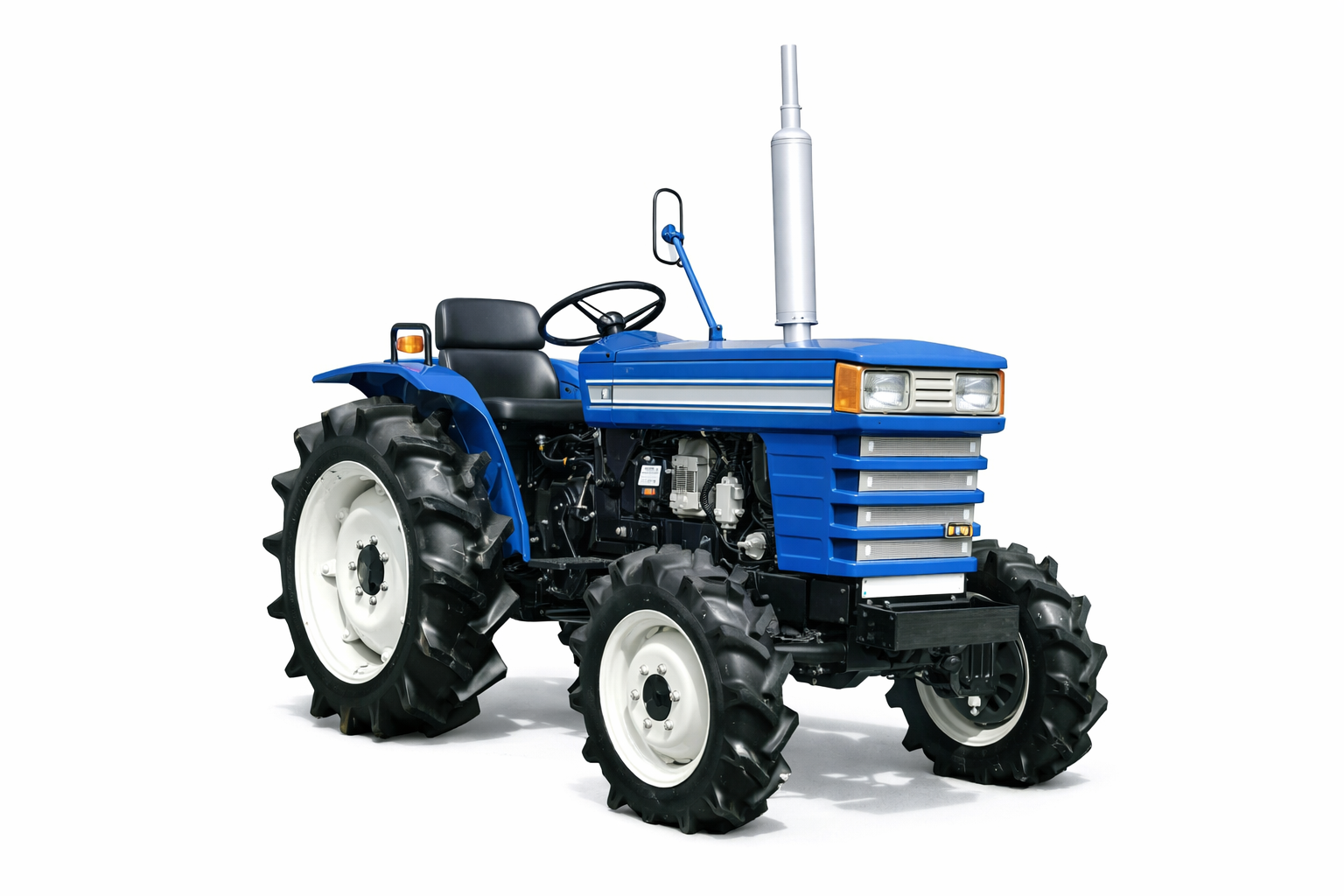

Photos of the Iseki TS2202 show a classic TS-series layout with a low hood, compact chassis, and robust driveline, reflecting Iseki’s focus on practical and durable tractor design.
