Iseki TS1910 Compact Utility Tractor – Specifications & Overview
Overview
The Iseki TS1910 is a compact utility tractor from the TS Series, produced between 1976 and 1980. Manufactured by Iseki in Japan, this model was developed for small farms, orchards, and light agricultural work where maneuverability, fuel efficiency, and mechanical simplicity are essential.
Positioned above the TS1610 and below the TS2210, the TS1910 offers increased power while maintaining a compact size. With both 2WD and 4WD (TS1910F) variants, it adapts well to different field conditions and export market needs.
Variants
| Model | Drive |
|---|---|
| TS1910 | 2WD |
| TS1910F | 4WD |
Engine
| Item | Specification |
|---|---|
| Engine manufacturer | Isuzu |
| Engine type | Diesel |
| Cylinders | 2 |
| Displacement | 1.0 L |
| Rated engine power | 18 hp (13.4 kW) |
| Fuel tank capacity | 15.9 L (4.2 gal) |
The Isuzu 1.0L diesel engine is well known for reliability, low fuel consumption, and ease of maintenance—important advantages for long-term use in overseas markets.
Transmission
| Item | Specification |
|---|---|
| Transmission type | Gear |
| Standard gears | 9-speed |
| Optional | 18-speed creeper |
| Drive options | 2WD / 4WD |
The optional creeper transmission enables very low operating speeds, ideal for precision tasks such as tilling and planting.
Power & Operator Features
| Item | Specification |
|---|---|
| Engine power | 18 hp |
| Drive | 2WD or 4WD |
| Operator station | Open platform |
The open operator station keeps the tractor lightweight and easy to service, making it suitable for warm climates and short to medium work cycles.
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| Rear PTO type | 540 (1.375 in) |
| PTO engine speeds | 548 @ 2600 rpm |
| 713 @ 2600 rpm | |
| 878 @ 2600 rpm | |
| 1281 @ 2600 rpm |
Multiple PTO speed options allow compatibility with a wide range of compact implements such as rotary tillers, mowers, and sprayers.
Tractor Hitch
| Item | Specification |
|---|---|
| Rear hitch type | JIS Category 0 |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 137 cm (54.3 in) |
| Operating weight | 720–865 kg (1,587–1,907 lbs) |
| Front tires | 4.00-12 |
| Rear tires (2WD) | 8.3/8-24 |
The compact wheelbase and moderate weight provide excellent maneuverability in narrow fields and confined working areas.
Electrical
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery voltage | 12 V |
Photos

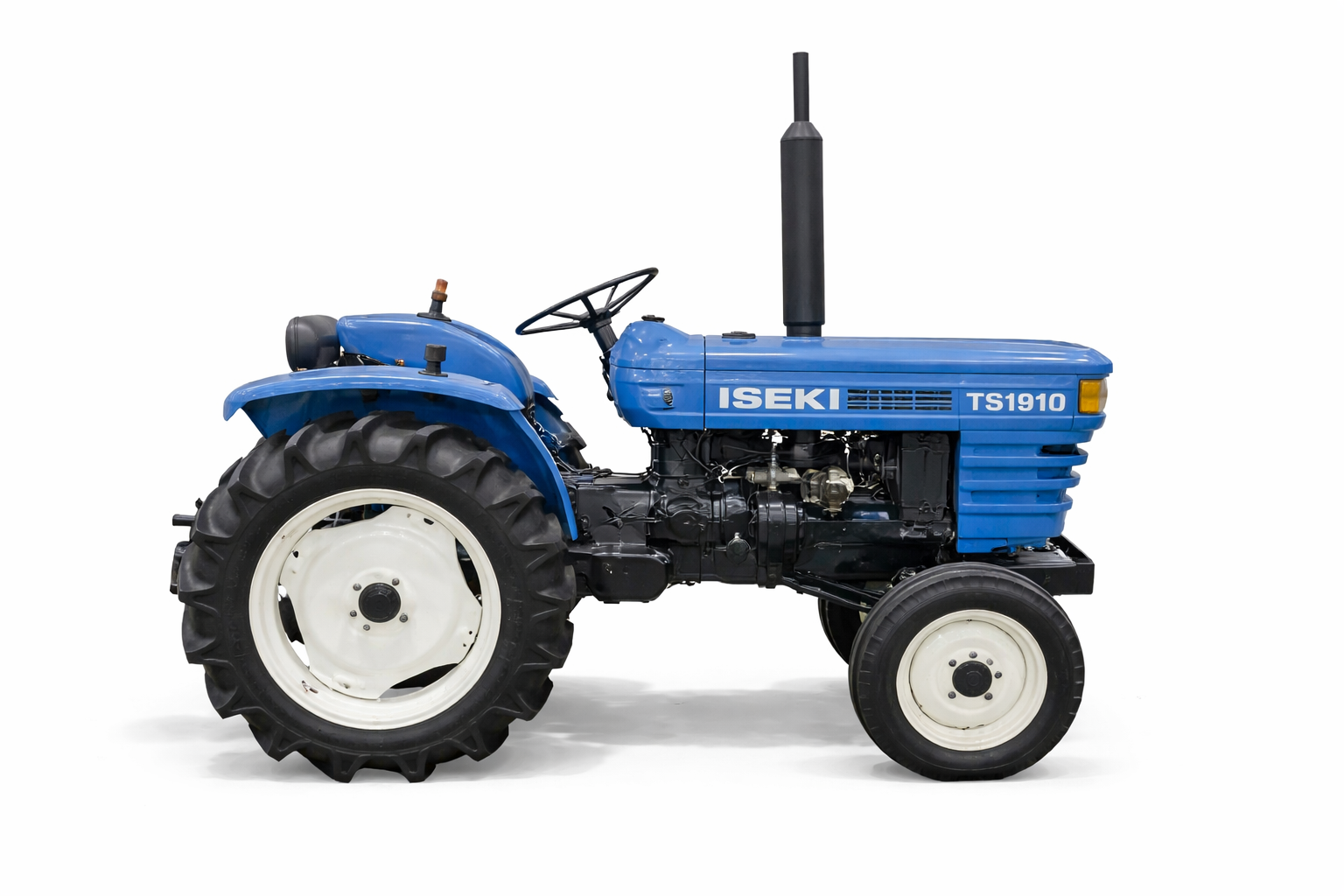

Photos of the Iseki TS1910 typically show a classic TS Series design with a low hood, compact chassis, and simple mechanical layout optimized for practical agricultural use.
