New Holland T5040 Utility Tractor – Specifications & Overview
Overview
| Item | Details |
|---|---|
| Model | New Holland T5040 |
| Series | T5000 Series |
| Type | Utility Tractor |
| Manufacturer | New Holland |
| Production Years | 2008 – 2013 |
| Built In | Jesi, Italy |
| Drive | 2WD / MFWD 4WD (optional) |
| Platform | Flat deck with ROPS |
| Cab | Optional (heater & air conditioning) |
Series Map
| Model | Engine Power |
|---|---|
| T5040 | 85.0 hp |
| T5050 | 95.0 hp |
Engine
| Item | Specification |
|---|---|
| Engine Manufacturer | New Holland |
| Engine Type | Diesel |
| Displacement | 4.5 L |
| Cylinders | 4 |
| Aspiration | Naturally aspirated |
| Fuel Tank Capacity | 33.5 gal (126.8 L) |
Power & Performance
| Category | Output |
|---|---|
| Engine Power (Gross) | 85 hp (63.4 kW) |
| PTO Power (Claimed) | 70 hp (52.2 kW) |
| Drawbar Power (Tested) | 61.2 hp (45.6 kW) |
| PTO Power (Tested) | 73.2 hp (54.6 kW) |
Transmission
| Type | Details |
|---|---|
| Mechanical Shuttle | 12-speed |
| Power Shuttle | 12-speed |
| Mechanical Shuttle | 20-speed |
| Power Shuttle | 24-speed |
Mechanical
| Item | Specification |
|---|---|
| Drive | 2WD or MFWD 4WD |
| Differential Lock | Mechanical rear (standard) |
| Optional Diff Lock | Electrohydraulic front & rear |
| Steering | Hydrostatic power |
| Brakes | Hydraulic wet disc |
Hydraulics
| Item | Specification |
|---|---|
| System Type | Open center |
| Hydraulic Pressure | 2,871 psi (198 bar) |
| Rear Valves | 2 – 3 (open or closed center) |
| Mid Valves | 0 – 2 |
| Pump Flow | 16.1 gpm (60.9 L/min) |
| Steering Flow | 10.4 gpm (39.4 L/min) |
Hitch & PTO
Rear Hitch
| Item | Specification |
|---|---|
| Hitch Type | Category II |
| Control | Mechanical lower-link draft sensing |
| Lift Capacity @ 24 in | 5,475 lbs (2,483 kg) |
| Optional Lift Capacity | 6,805 lbs (3,086 kg) |
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| PTO Type | Independent |
| Clutch | Mechanical (electrohydraulic optional) |
| PTO Speed | 540 / 1000 rpm |
| PTO Shaft | 1.375 in |
| Engine RPM @ 540 | 2,199 rpm |
| Engine RPM @ 1000 | 2,261 rpm |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 92.5 in (234 cm) |
| Tires | Various agricultural configurations |
| Operating Weight | Varies by configuration |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 120 amps |
| Battery Voltage | 12 V |
| Battery CCA | 960 |
Attachments
| Attachment | Availability |
|---|---|
| Front-End Loader | Supported |
| Agricultural Implements | Compatible |

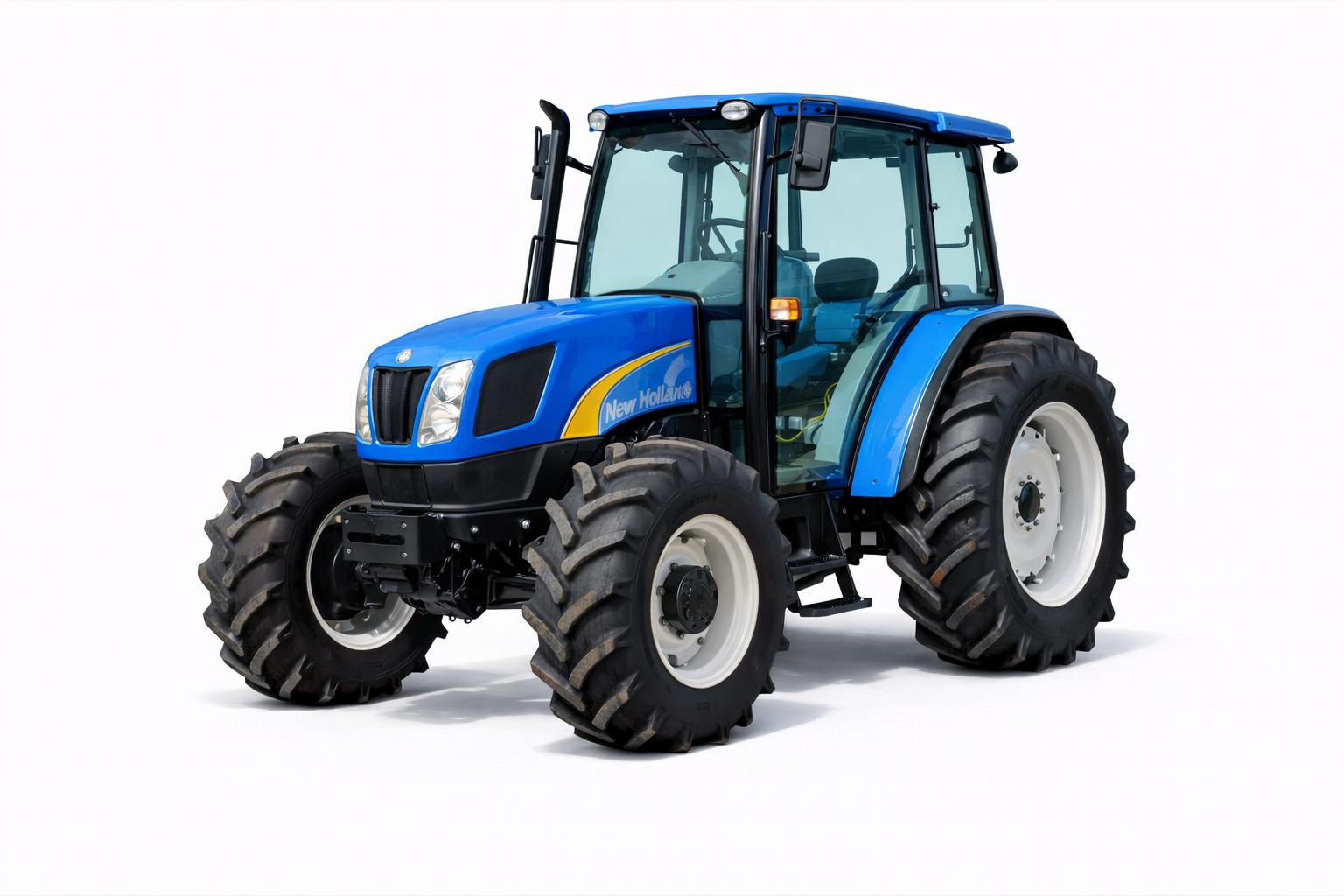

Photos
Why Choose the New Holland T5040?
The New Holland T5040 is a versatile 85 HP utility tractor designed for mixed farming, loader work, and transport operations. Compared to the earlier T4000 Series, it offers a larger fuel tank, stronger hydraulics, and higher rear lift capacity. Built in Italy, the T5040 is trusted worldwide for durability, efficiency, and ease of operation across a wide range of agricultural applications.
