New Holland T4050 Utility Tractor – Specifications & Overview
Overview
| Item | Details |
|---|---|
| Model | New Holland T4050 |
| Series | T4000 Series |
| Type | Utility Tractor |
| Manufacturer | New Holland |
| Production Years | 2008 – 2011 |
| Built In | Jesi, Italy |
| Drive | 4WD |
| Platform | ROPS |
| Cab | Available on Deluxe model (heater & A/C) |
Series Position
| Model | Engine Power |
|---|---|
| T4040 | 84.0 hp |
| T4050 | 95.0 hp |
Replaced model: TN95A (2004–2008)
Later successor: T4.115 (2013–2014)
Variants
| Variant | Description |
|---|---|
| T4050 | Standard chassis |
| T4050F | Narrow chassis |
| T4050V | Ultra-narrow chassis |
| TK4050 | Crawler |
| TK4050M | Mountain crawler (wide) |
| Similar Model | Case IH Farmall 95C |
Engine
| Item | Specification |
|---|---|
| Engine Manufacturer | FPT |
| Engine Type | Diesel |
| Displacement | 4.5 L |
| Cylinders | 4 |
| Aspiration | Naturally aspirated |
| Fuel Tank Capacity | 21.6 gal (81.8 L) |
| Fuel Tank (Deluxe) | 23.2 gal (87.8 L) |
Power & Performance
| Category | Output |
|---|---|
| Engine Power (Gross) | 95 hp (70.8 kW) |
| PTO Power (Claimed) | 80 hp (59.7 kW) |
| Drawbar Power (Tested) | 74.3 hp (55.4 kW) |
| PTO Power (Tested) | 89.7 hp (66.9 kW) |
Transmission
| Type | Details |
|---|---|
| Mechanical Shuttle | 16-speed |
| Power Shuttle | 16-speed |
Mechanical
| Item | Specification |
|---|---|
| Drive | Four-wheel drive |
| Differential Lock | Mechanical rear |
| Steering | Hydrostatic power |
| Brakes | Hydraulic wet disc |
Hydraulics
| Item | Specification |
|---|---|
| System Type | Open center |
| Hydraulic Pressure | 2,755 psi (190 bar) |
| Valves | 1 – 5 |
| Pump Flow | 16.1 gpm (60.9 L/min) |
| Steering Flow | 9.4 gpm (35.6 L/min) |
Hitch & PTO
Rear Hitch
| Item | Specification |
|---|---|
| Hitch Type | Category II / I |
| Lift Capacity @ 24 in | 3,962 lbs (1,797 kg) |
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| PTO Type | Independent |
| PTO Speed | 540 rpm |
| Optional PTO | 540 / 1000 rpm |
| PTO Shaft | 1.375 in |
| Engine RPM @ 540 PTO | 2,196 rpm |
| Clutch | 280 mm mechanical dry disc |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase (4WD) | 83.7 in (212 cm) |
| Wheelbase (4WD Deluxe) | 86.0 in (218 cm) |
| Wheelbase (2WD) | 86.7 in (220 cm) |
| Wheelbase (2WD Deluxe) | 89.0 in (226 cm) |
| Wheelbase (SuperSteer) | 98.2 in (249 cm) |
| Operating Weight | 6,614 – 7,055 lbs |
| Front Tires | 11.2R24 |
| Rear Tires | 16.9R30 |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 120 amps |
| Battery Voltage | 12 V |
| Battery CCA | 800 |
Attachments
| Attachment | Availability |
|---|---|
| Front-End Loader | Supported |
| Agricultural Implements | Compatible |

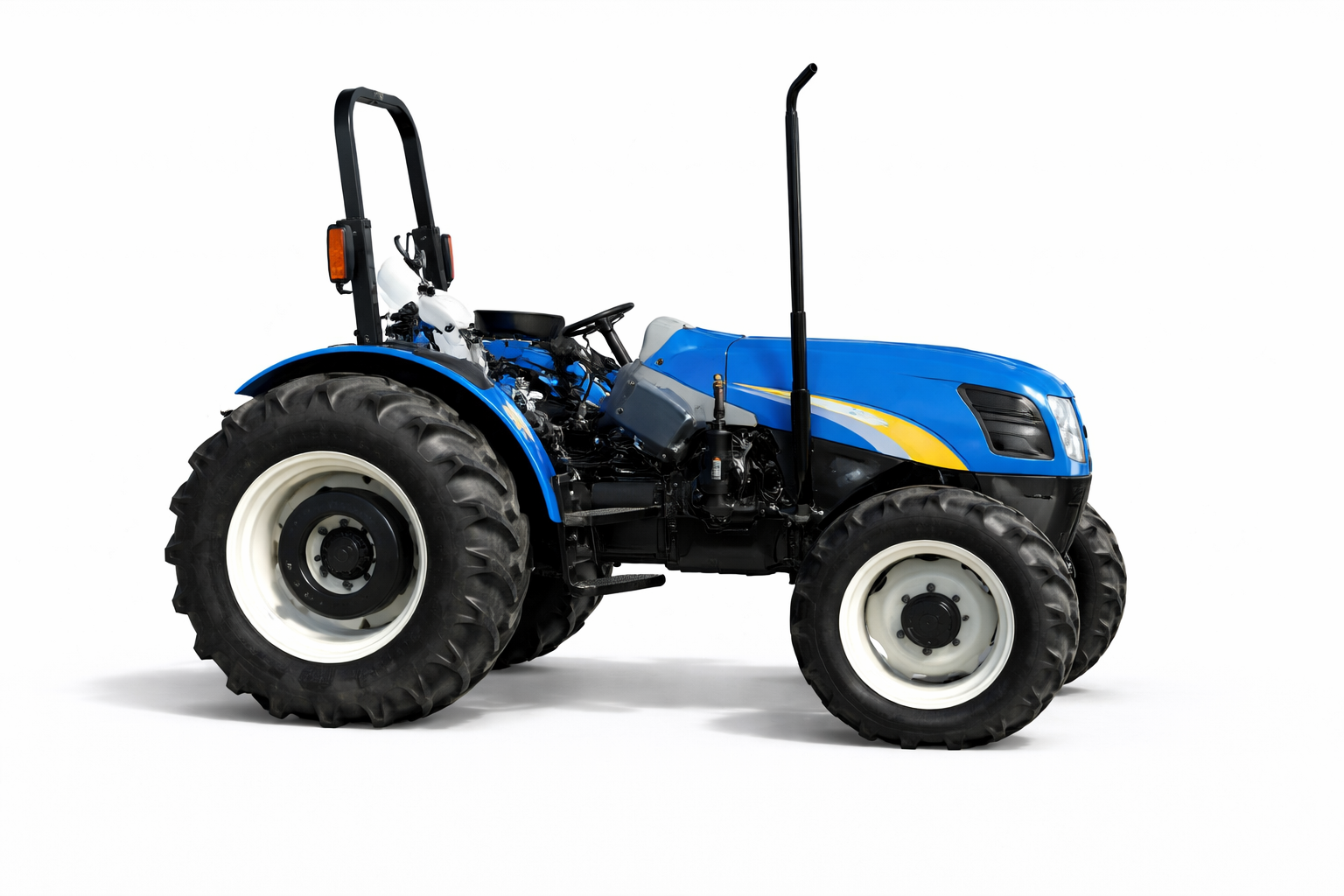

Photos
Why Choose the New Holland T4050?
The New Holland T4050 is the most powerful model in the T4000 Series, delivering 95 HP for demanding agricultural and utility applications. With a robust 4.5L FPT engine, high PTO output, strong hydraulics, and multiple chassis options—including narrow and crawler versions—it is ideal for heavy-duty field work, loader operations, and specialty farming. Built in Italy, the T4050 is trusted worldwide for durability, productivity, and long-term performance.
