New Holland T4030 Utility Tractor – Specifications & Overview
Overview
| Item | Details |
|---|---|
| Model | New Holland T4030 |
| Series | T4000 Series |
| Type | Utility Tractor |
| Production Years | 2008 – 2011 |
| Manufacturer | New Holland |
| Built In | Jesi, Italy |
| Similar Model | Case IH Farmall 75C |
| Drive Options | 2WD / 4WD |
| Platform | ROPS (Cab available on Deluxe model) |
Series Position
-
Above: T4020
-
Below: T4040
-
Replaced: TN75A (2004–2008)
Variants
| Variant | Description |
|---|---|
| T4030 | Standard chassis |
| T4030F | Narrow chassis |
| T4030V | Ultra-narrow chassis |
| TK4030V | Crawler version |
Engine
| Item | Specification |
|---|---|
| Engine Manufacturer | FPT |
| Engine Type | Diesel |
| Displacement | 3.2 L |
| Cylinders | 4 |
| Aspiration | Naturally aspirated |
| Fuel Tank Capacity | 21.6 gal (81.8 L) |
| Fuel Tank (Deluxe) | 19.8 gal (74.9 L) |
Power & Performance
| Category | Output |
|---|---|
| Engine Power (Gross) | 76 hp (56.7 kW) |
| PTO Power (Claimed) | 62 hp (46.2 kW) |
| PTO Power (Tested) | 66.4 hp (49.5 kW) |
| Drawbar Power (Tested) | 57.1 hp (42.6 kW) |
Transmission
| Type | Details |
|---|---|
| Mechanical Shuttle | 12-speed |
| Mechanical Shuttle | 16-speed |
| Power Shuttle | 16-speed |
Hydraulics
| Item | Specification |
|---|---|
| System Type | Open center |
| Hydraulic Pressure | 2755 psi (190 bar) |
| Valves | 1 – 5 |
| Pump Flow | 12.8 gpm (48.4 L/min) |
| Optional Pump Flow | 16.1 gpm (60.9 L/min) |
| Steering Flow | 7.4 gpm (28.0 L/min) |
| Steering Flow (Power Shuttle) | 9.4 gpm (35.6 L/min) |
Hitch & PTO
Rear Hitch
| Item | Specification |
|---|---|
| Hitch Type | Category II / I |
| Lift Capacity @ 24 in | 3962 lbs (1797 kg) |
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| PTO Type | Independent |
| PTO Speed | 540 rpm |
| PTO Shaft | 1.375 in |
| Engine RPM @ 540 PTO | 2196 rpm |
| Clutch | 280 mm mechanical dry disc |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase (4WD) | 80.2 in (203 cm) |
| Wheelbase (4WD Deluxe) | 82.6 in (209 cm) |
| Wheelbase (2WD) | 83.3 in (211 cm) |
| Wheelbase (2WD Deluxe) | 85.6 in (217 cm) |
| Wheelbase (SuperSteer) | 94.8 in (240 cm) |
| Operating Weight | 5776 – 6768 lbs |
| Front Tires | 11.2R24 |
| Rear Tires | 16.9R30 |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 85 amps |
| Battery Voltage | 12 V |
| Battery CCA | 730 |
Attachments
| Attachment | Availability |
|---|---|
| Front-End Loader | Supported |
| Agricultural Implements | Compatible |

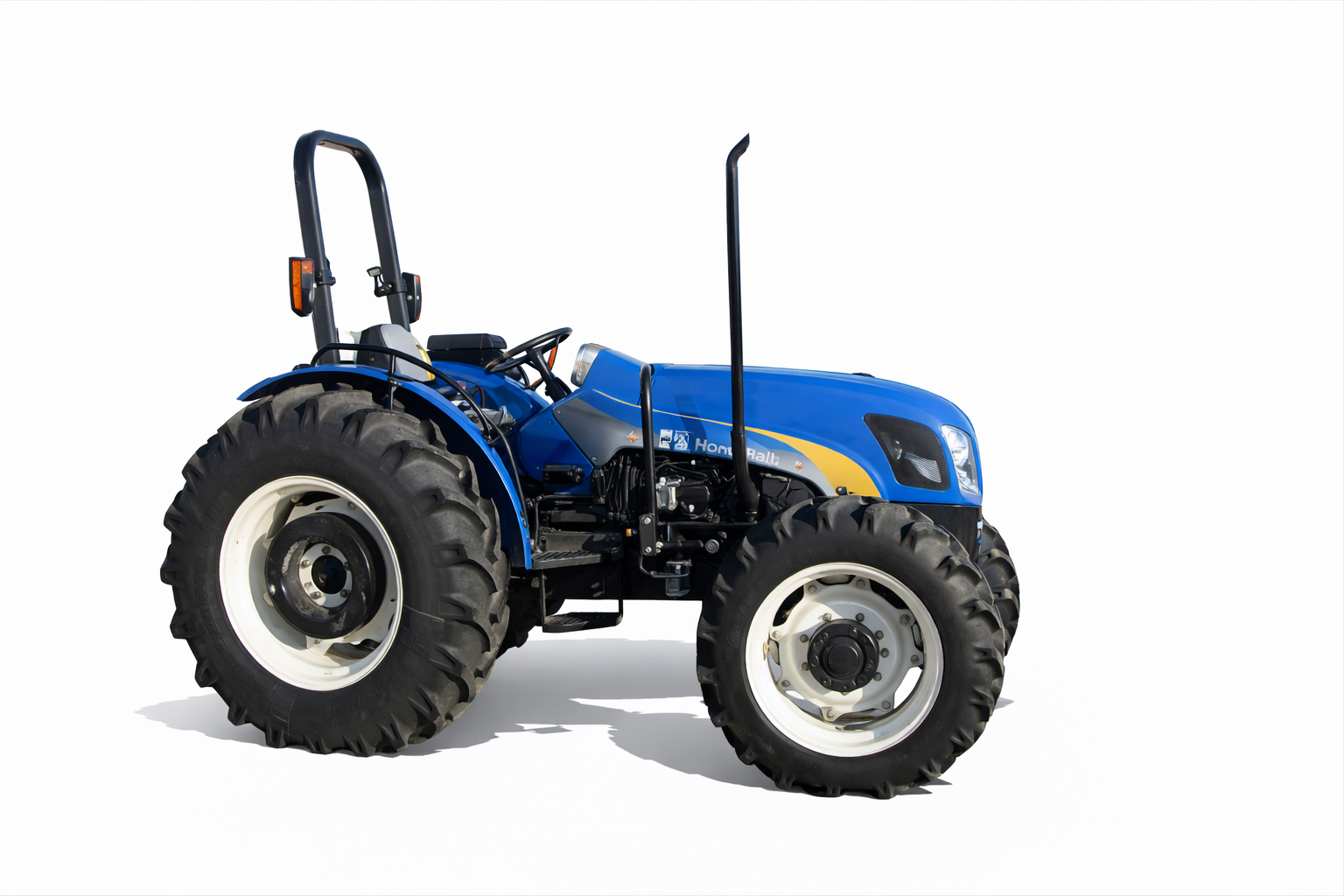

Photos
Why Choose the New Holland T4030?
The New Holland T4030 is a balanced utility tractor offering strong PTO power, simple mechanical reliability, and versatile hydraulic performance. Built in Italy and trusted worldwide, it is well-suited for farming, landscaping, and loader work across many global markets.
