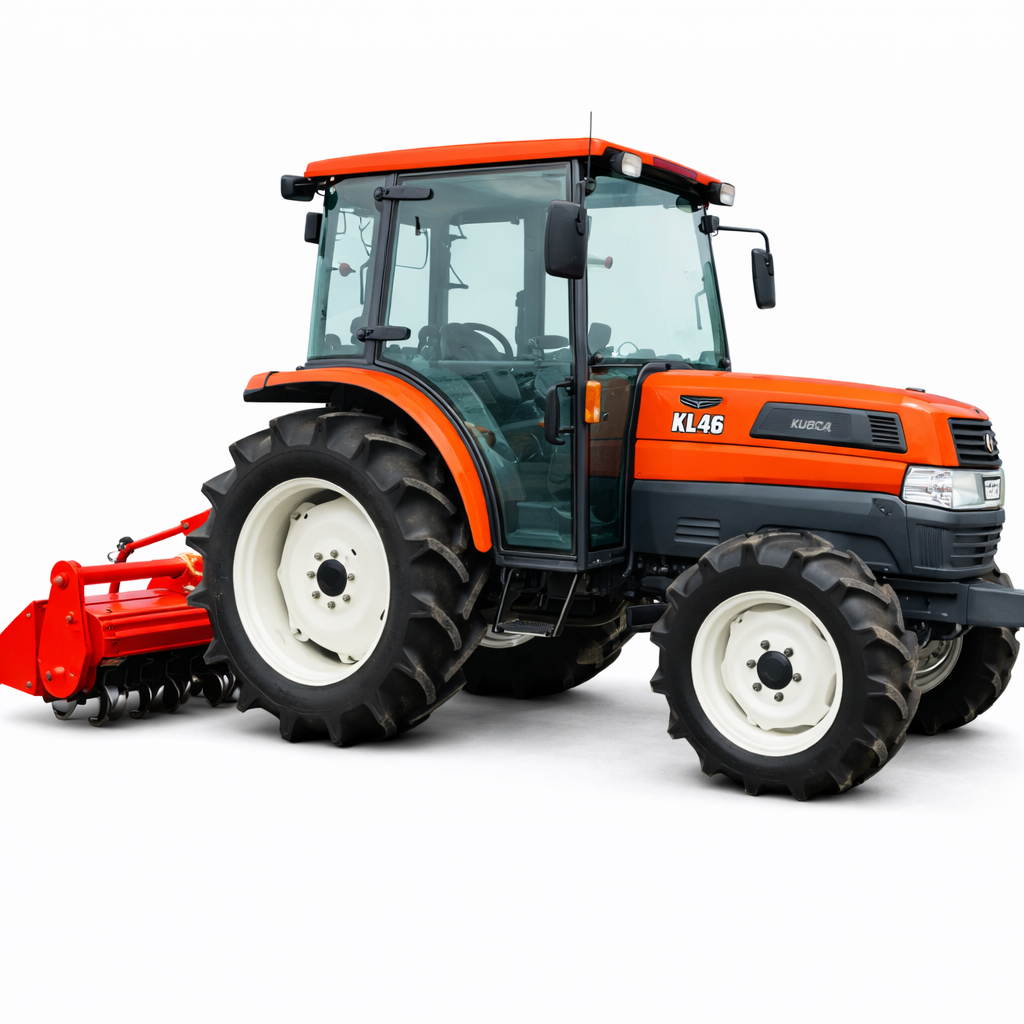

The Kubota KL46 Hi-Speed is a high-torque compact utility tractor developed for demanding agricultural operations.
Produced from 1999 to 2005, this model belongs to the robust KL Series, which is widely trusted for durability, power, and mechanical reliability.
Moreover, the KL46 Hi-Speed delivers more output than the KL41 while keeping stable handling and compact proportions.
As a result, it is well suited for rotary tillage, plowing, hauling, and long daily operation in professional farming environments.
At EVERY FARM TRACTOR, we export Japanese used tractors to over 100 countries, supporting global farmers with proven machines and reliable export service.
KL Series Lineup Position
| Model | Engine Output |
|---|---|
| KL41 | 30.9 kW |
| KL46 Hi-Speed | 33.8 kW |
| KL50 | 36.8 kW |
| KL460 (successor) | 2006–2007 |
The KL46 Hi-Speed sits in the upper range of the KL Series, offering strong pulling power and high productivity.
Engine Specifications
Kubota KL46 Engine
The KL46 Hi-Speed is powered by a larger four-cylinder diesel engine designed for continuous heavy-duty use.
| Item | Specification |
|---|---|
| Engine manufacturer | Kubota |
| Engine type | Diesel |
| Cylinders | 4-cylinder |
| Displacement | 2.4 L |
| Rated engine power | 45.3 hp (33.8 kW) |
| Fuel tank capacity | 45.0 L (11.9 gal) |
Because of its increased displacement, the engine delivers strong torque at low RPM.
In addition, fuel efficiency remains stable even during long working hours.
Transmission Options
Hi-Speed Gear Transmission
| Item | Specification |
|---|---|
| Transmission types | 20-speed / 30-speed |
| Drive system | 4WD (Four-wheel drive) |
| Steering | Power steering |
Thanks to multiple speed ranges, operators can select optimal gears for both field work and transport.
Therefore, productivity improves across various farming applications.
Power & Mechanical Features
| Feature | Details |
|---|---|
| Brakes | Mechanical wet disc |
| ROPS | Two-post ROPS |
| Cab | Optional |
| PTO type | Rear PTO |
| PTO speed | 540 rpm |
The optional cab allows buyers to customize the tractor based on climate and work conditions.
PTO Output (at 2600 RPM)
| PTO Output (rpm equivalent) |
|---|
| 556 |
| 784 |
| 972 |
| 1295 |
| Reverse: 972 |
This PTO range supports rotary tillers, plows, mowers, and other heavy implements.
Hitch System
| Item | Specification |
|---|---|
| Rear hitch type | Category I |
The Category I hitch ensures compatibility with widely used agricultural attachments.
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 194 cm (76.4 in) |
| Operating weight | 1,605–1,780 kg (3,538–3,924 lbs) |
| Front tires | 8.3-20 |
| Rear tires | 13.6-28 |
Because of its longer wheelbase, the KL46 Hi-Speed provides excellent stability on uneven terrain.
At the same time, it maintains good maneuverability in farm fields.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery voltage | 12V |
The simple electrical system supports reliable long-term operation and easy servicing.
Why Choose a Used Kubota KL46 Hi-Speed?
-
Powerful 45.3 hp four-cylinder diesel engine
-
High-speed transmission for efficient transport
-
Strong torque for heavy implements
-
Reliable mechanical structure
-
Easy maintenance and servicing
-
Excellent global parts availability
In short, the KL46 Hi-Speed is built for heavy-duty daily farm work, not light tasks.
