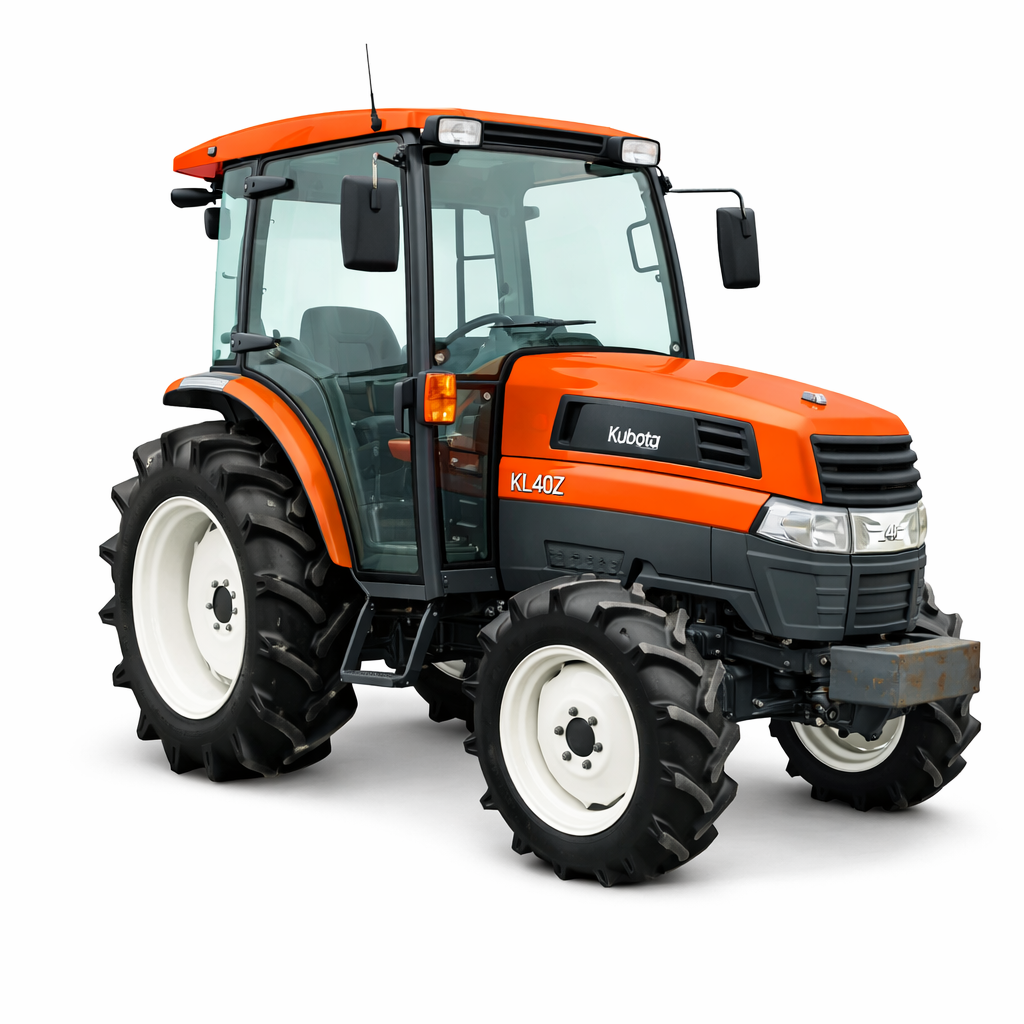

The Kubota KL40Z is a high-performance compact utility tractor built for demanding farm work.
Produced from 2012 to 2015, this model belongs to the advanced KL Kingwel Zero Series, which focuses on smooth operation, high efficiency, and operator comfort.
Moreover, the KL40Z offers more power than the KL37Z while maintaining compact dimensions.
As a result, it performs well in tillage, cultivation, transport, and long daily operations.
At EVERY FARM TRACTOR, we export Japanese used tractors to over 100 countries, helping buyers access reliable machines with full export support.
KL Kingwel Zero Series Position
| Model | Engine Output |
|---|---|
| KL37Z | 27.2 kW |
| KL40Z | 29.4 kW |
| KL44Z | 32.4 kW |
The KL40Z sits in the upper range of the Zero Series, offering strong power with balanced fuel efficiency.
Engine Specifications
Kubota KL40Z Engine
The KL40Z uses a robust four-cylinder diesel engine designed for continuous agricultural use.
| Item | Specification |
|---|---|
| Engine manufacturer | Kubota |
| Engine type | Diesel |
| Cylinders | 4-cylinder |
| Displacement | 2.2 L |
| Rated engine power | 39.4 hp (29.4 kW) |
| Fuel tank capacity | 39.0 L (10.3 gal) |
Because of its four-cylinder design, vibration remains low during operation.
In addition, torque delivery stays smooth even under heavy load.
Transmission Options
Flexible Transmission Choices
| Item | Specification |
|---|---|
| Transmission types | CVT / 24-speed / 30-speed |
| Drive system | 4WD (Four-wheel drive) |
| Steering | Power steering |
Thanks to multiple transmission options, operators can choose the setup that fits their work style.
Therefore, productivity improves in both field work and transport tasks.
Variants
| Model | Description |
|---|---|
| KL40Z | Wheeled version |
| KL40Z-PC | Half-track version |
The half-track variant provides improved traction in wet or soft soil conditions.
Power & Mechanical Features
| Feature | Details |
|---|---|
| Brakes | Mechanical wet disc |
| ROPS | Two-post ROPS |
| Cab | Optional |
| Air-conditioning | Optional |
| PTO type | Rear PTO |
| PTO speed | 540 rpm |
Furthermore, the optional cab with air-conditioning enhances comfort during long working hours.
PTO Output (at 2600 RPM)
| PTO Output (rpm equivalent) |
|---|
| 546 |
| 773 |
| 969 |
| 1298 |
| Reverse: 770 |
This PTO range supports rotary tillers, mowers, spreaders, and other common implements.
Hitch System
| Item | Specification |
|---|---|
| Rear hitch type | Category I |
The Category I hitch ensures compatibility with widely used farm attachments.
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 188 cm (74.4 in) |
| Operating weight | 1,814 kg (4,001 lbs) |
| Front tires | 8-18 |
| Rear tires | 12.4-28 |
Because of its stable wheelbase, the KL40Z maintains strong traction on uneven terrain.
At the same time, it remains easy to maneuver in compact fields.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery voltage | 12V |
The simple electrical layout supports reliable long-term operation.
Why Choose a Used Kubota KL40Z?
-
Strong 39.4 hp four-cylinder diesel engine
-
Smooth CVT or multi-speed transmission options
-
Reliable mechanical construction
-
Easy maintenance and servicing
-
Excellent global parts availability
-
Trusted Japanese engineering
In short, the KL40Z delivers power, stability, and comfort for serious agricultural work.
Export Support from EVERY FARM TRACTOR
EVERY FARM TRACTOR has been exporting Japanese used tractors and machinery since 2006.
We support customers in over 100 countries with inspection, documentation, and international shipping.
If you are searching for a Used Kubota Tractor, the KL40Z remains a premium and dependable option.
