New Holland T3030 Compact Utility Tractor
Overview
| Item | Details |
|---|---|
| Model | New Holland T3030 |
| Series | T3000 Series |
| Type | Compact Utility Tractor |
| Production years | 2007 – 2010 |
| Manufacturer | New Holland (CNH Group) |
| Drive | 4WD |
| ROPS | Two-post folding mid-mount ROPS |
| Cab | Optional (air-conditioning available) |
The New Holland T3030 is a high-output model in the T3000 Series, positioned above the T3020 and below the T3040. It delivers increased engine power while retaining compact dimensions, making it suitable for demanding agricultural, landscaping, and estate maintenance work.
Engine
| Item | Specification |
|---|---|
| Engine manufacturer | Yanmar |
| Engine type | Diesel |
| Cylinders | 4-cylinder |
| Displacement | 2.2 L |
| Aspiration | Naturally aspirated |
| Fuel type | Diesel |
| Fuel tank capacity | 10.6 gal (40.1 L) |
The Yanmar 2.2L diesel engine provides smooth power delivery, strong torque, and excellent durability—well suited for continuous operation in professional environments.
Power Output
| Item | Output |
|---|---|
| Engine power | 46.9 hp (35.0 kW) |
Transmission
| Item | Details |
|---|---|
| Transmission type | Mechanical |
| Number of speeds | 16-speed |
The 16-speed transmission allows precise speed selection for a wide range of tasks, from PTO-driven implements to transport work.
Mechanical Features
| Item | Specification |
|---|---|
| Drive system | Four-wheel drive |
| Differential lock | Electro-hydraulic rear |
| Steering | Power-assisted |
| Brakes | Mechanical |
Hitch & PTO
Rear & Front Hitch
| Item | Specification |
|---|---|
| Rear hitch type | Category I |
| Rear lift capacity (at ends) | 2,646 lbs (1,200 kg) |
| Front hitch | Category I (optional) |
| Front lift capacity | 881.8 lbs (399 kg) |
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| Rear PTO | 540 / 540E (1.375″) |
| Front PTO | 1000 rpm (optional) |
The 540E PTO allows reduced engine speed operation for lighter tasks, improving fuel efficiency.
Dimensions & Weight
| Item | Specification |
|---|---|
| Wheelbase | 66.9 in (169 cm) |
| Operating weight | 3,219 – 3,549 lbs |
Compact size and balanced weight ensure easy maneuverability while maintaining stability during operation.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery voltage | 12 V |

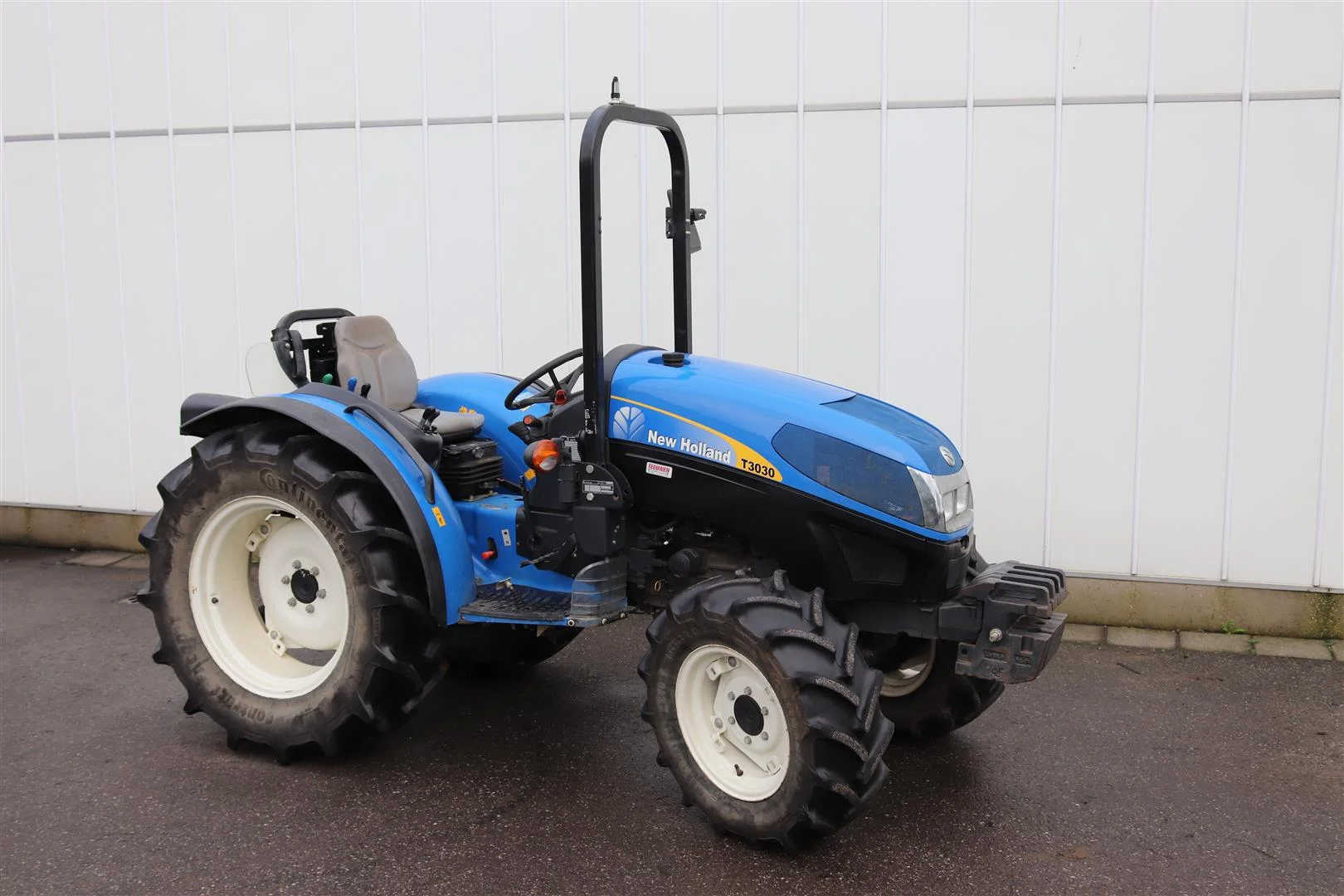

Photos
Why Choose the New Holland T3030 from EVERY FARM TRACTOR?
-
High-output Yanmar diesel engine in a compact frame
-
Reliable 4WD performance with electro-hydraulic diff lock
-
Rear and optional front PTO versatility
-
Ideal for mixed farming, estate work, and export markets
-
Carefully inspected units with worldwide shipping to 100+ countries
