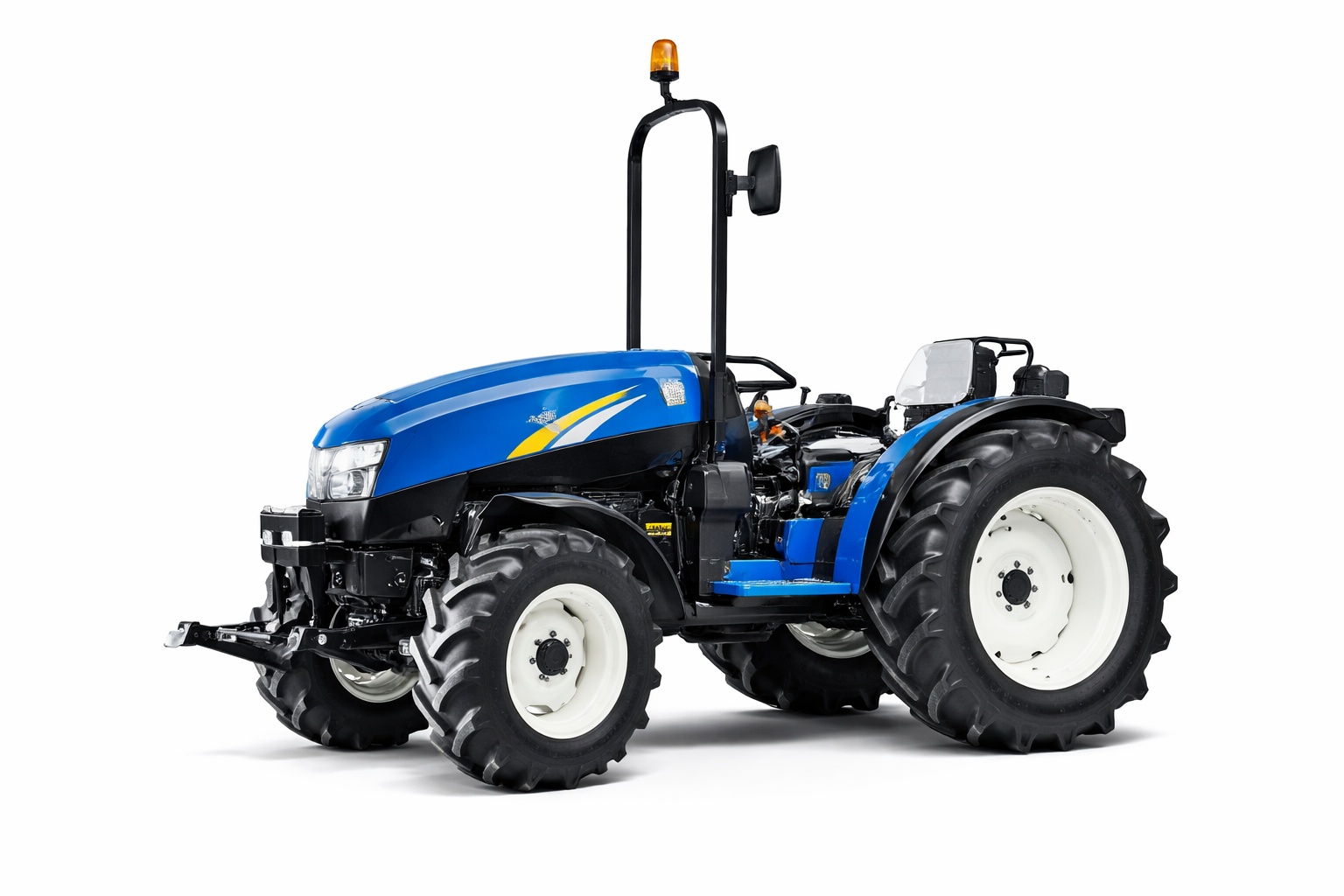

New Holland T3020 Compact Utility Tractor
Overview
| Item | Details |
|---|---|
| Model | New Holland T3020 |
| Series | T3000 Series |
| Type | Compact Utility Tractor |
| Production years | 2007 – 2010 |
| Manufacturer | New Holland (CNH Group) |
| Drive | 4WD |
| ROPS | Two-post folding mid-mount ROPS |
| Cab | Optional (air-conditioning available) |
The New Holland T3020 sits between the T3010 and T3030, offering increased power while retaining compact dimensions. It is well suited for farming, landscaping, and property maintenance where additional PTO and engine power are required.
Engine
| Item | Specification |
|---|---|
| Engine manufacturer | Yanmar |
| Engine type | Diesel |
| Cylinders | 4-cylinder |
| Displacement | 2.0 L |
| Aspiration | Naturally aspirated |
| Fuel type | Diesel |
| Fuel tank capacity | 10.6 gal (40.1 L) |
The Yanmar 2.0L diesel engine delivers smooth power, excellent fuel efficiency, and long-term reliability—ideal for continuous agricultural use.
Power Output
| Item | Output |
|---|---|
| Engine power | 42.8 hp (31.9 kW) |
Transmission
| Item | Details |
|---|---|
| Transmission type | Mechanical |
| Number of speeds | 16-speed |
The 16-speed transmission provides a wide selection of working speeds, allowing precise control for mowing, tillage, and transport tasks.
Mechanical Features
| Item | Specification |
|---|---|
| Drive system | Four-wheel drive |
| Differential lock | Electro-hydraulic rear |
| Steering | Power-assisted |
| Brakes | Mechanical |
Hitch & PTO
Rear & Front Hitch
| Item | Specification |
|---|---|
| Rear hitch type | Category I |
| Rear lift capacity (at ends) | 2,646 lbs (1,200 kg) |
| Front hitch | Category I (optional) |
| Front lift capacity | 881.8 lbs (399 kg) |
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| Rear PTO | 540 / 540E (1.375″) |
| Front PTO | 1000 rpm (optional) |
The dual-speed rear PTO improves efficiency during lighter-duty operations.
Dimensions & Weight
| Item | Specification |
|---|---|
| Wheelbase | 66.9 in (169 cm) |
| Operating weight | 3,219 – 3,549 lbs |
Compact size and balanced weight make the T3020 easy to maneuver in tight working environments.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery voltage | 12 V |
Photos
Why Choose the New Holland T3020 from EVERY FARM TRACTOR?
-
Powerful and fuel-efficient Yanmar diesel engine
-
Compact 4WD tractor with strong PTO versatility
-
Rear and optional front PTO for multiple applications
-
Ideal balance between size and performance
-
Carefully inspected units with worldwide export support to 100+ countries
