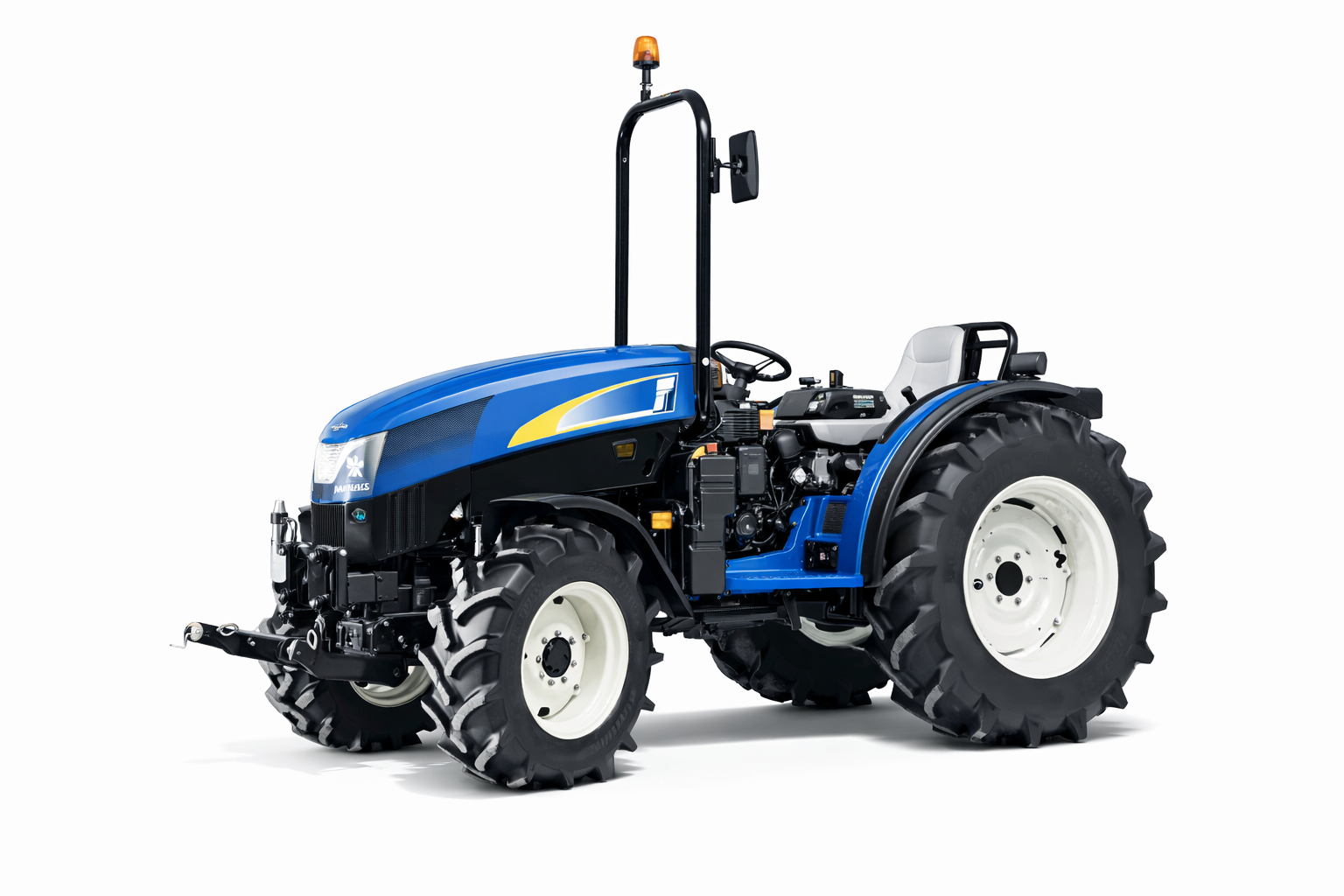

New Holland T3010 Compact Utility Tractor
Overview
| Item | Details |
|---|---|
| Model | New Holland T3010 |
| Series | T3000 Series |
| Type | Compact Utility Tractor |
| Production years | 2007 – 2010 |
| Manufacturer | New Holland (CNH Group) |
| Drive | 4WD |
| ROPS | Two-post folding mid-mount ROPS |
| Cab | Optional (with heater) |
The New Holland T3010 is a versatile compact utility tractor designed for small to medium-scale farming, landscaping, and property maintenance. Positioned below the T3020, it balances maneuverability with sufficient power for daily agricultural tasks.
Engine
| Item | Specification |
|---|---|
| Engine manufacturer | Yanmar |
| Engine type | Diesel |
| Cylinders | 3-cylinder |
| Displacement | 1.6 L |
| Aspiration | Naturally aspirated |
| Fuel type | Diesel |
| Fuel tank capacity | 10.6 gal (40.1 L) |
The reliable Yanmar 1.6L diesel engine is known for fuel efficiency, low vibration, and long service life—well suited for continuous operation in varied working conditions.
Power Output
| Item | Output |
|---|---|
| Engine power | 34.7 hp (25.9 kW) |
Transmission
| Item | Details |
|---|---|
| Transmission type | Mechanical |
| Number of speeds | 16-speed |
The 16-speed transmission provides a wide range of working speeds, allowing precise control for fieldwork, mowing, and transport.
Mechanical Features
| Item | Specification |
|---|---|
| Drive system | Four-wheel drive |
| Differential lock | Electro-hydraulic rear |
| Brakes | Mechanical |
| Steering | Power-assisted |
Hitch & PTO
Rear & Front Hitch
| Item | Specification |
|---|---|
| Rear hitch type | Category I |
| Rear lift capacity (at ends) | 2,646 lbs (1,200 kg) |
| Front hitch | Category I (optional) |
| Front lift capacity | 881.8 lbs (399 kg) |
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| Rear PTO | 540 / 540E (1.375″) |
| Front PTO | 1000 rpm (optional) |
Dual-speed rear PTO improves fuel efficiency when operating lighter implements.
Dimensions & Weight
| Item | Specification |
|---|---|
| Wheelbase | 66.9 in (169 cm) |
| Operating weight | 3,197 – 3,527 lbs |
Compact dimensions allow easy operation in tight spaces such as orchards, barns, and small fields.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery voltage | 12 V |
Photos
Why Choose the New Holland T3010 from EVERY FARM TRACTOR?
-
Fuel-efficient Yanmar diesel engine
-
Compact size with practical 4WD performance
-
Rear and optional front PTO versatility
-
Ideal for small farms, estates, and export markets
-
Carefully inspected units with worldwide shipping to 100+ countries
