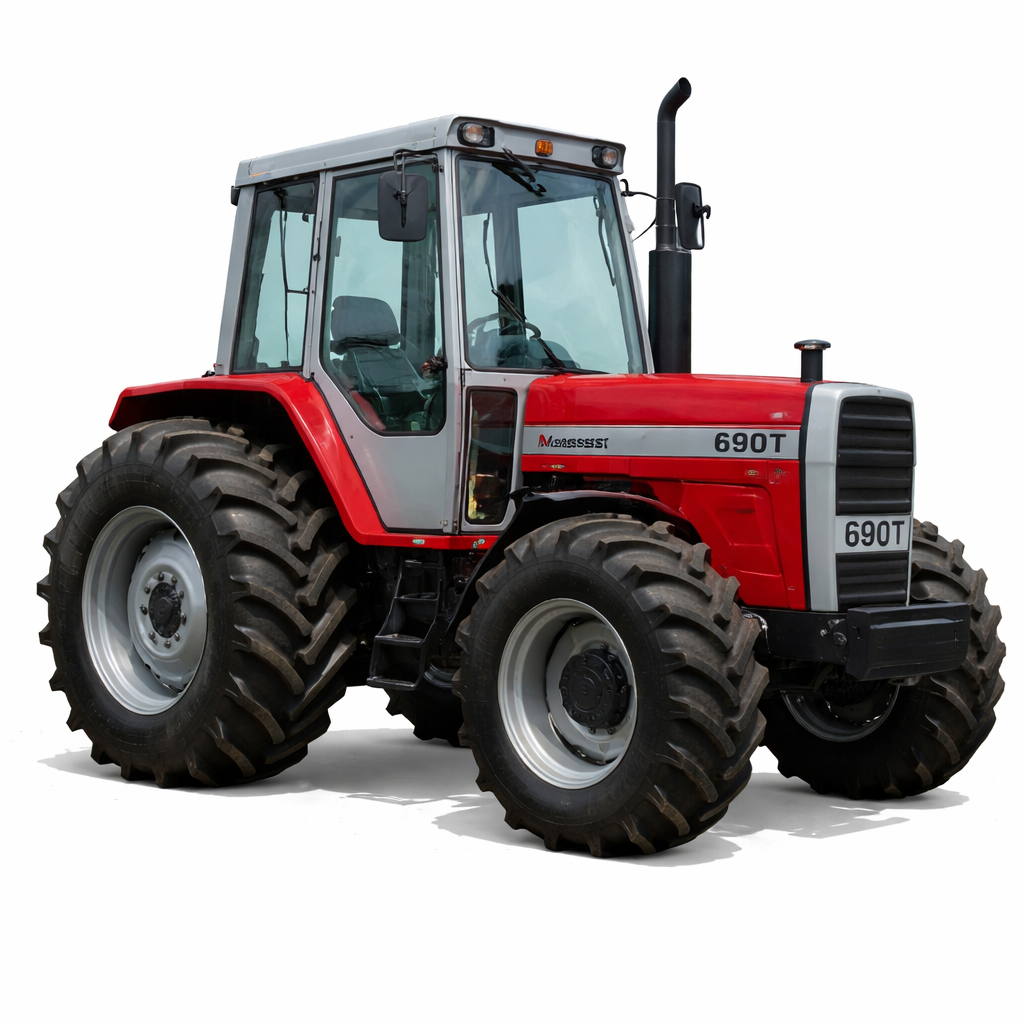

The Massey Ferguson 690T is a turbocharged utility tractor from the MF 600 Series, produced between 1983 and 1986.
It was developed for farmers who needed more power than the standard 690, while keeping a compact and versatile utility design.
Built by Massey Ferguson in Beauvais, France, the MF 690T combines European engineering with strong field performance.
As a result, it remains highly respected in the global used tractor market.
Position in the MF 600 Series
The Massey Ferguson 690T sits above the naturally aspirated 690 and below the larger MF 698.
Therefore, it offers a clear step up in power without moving into a much heavier tractor class.
| Model | Engine Power* |
|---|---|
| MF 690 | 80.0 HP |
| MF 690T | 90.0 HP |
| MF 698 | 86.7 HP* |
*Estimated engine power for comparison only.
Variants Overview
The MF 690 series was available in two main engine configurations.
This allowed buyers to choose based on workload and budget.
| Variant | Description |
|---|---|
| 690 | Naturally aspirated |
| 690T | Turbocharged |
Because of turbocharging, the 690T delivers stronger torque under load.
Engine Specifications – Perkins 4.1L Turbo Diesel
The Massey Ferguson 690T is powered by a proven Perkins turbocharged diesel engine.
This engine is well known for durability and consistent power delivery.
| Item | Specification |
|---|---|
| Engine Manufacturer | Perkins |
| Engine Type | Turbocharged Diesel |
| Cylinders | 4 |
| Displacement | 4.1 L |
| Rated Engine Power | 90 HP (67.1 kW) |
Thanks to the turbocharger, the engine maintains performance during heavy field work.
In addition, Perkins engines are easy to service in many export destinations.
Transmission – Simple and Reliable Gearbox
The MF 690T uses a mechanical transmission designed for long-term reliability.
| Item | Specification |
|---|---|
| Transmission Type | Gear |
| Gears | 12-speed |
As a result, operators enjoy predictable speed control in both field and transport work.
Power Output and Capability
The turbocharged engine gives the MF 690T a clear advantage in demanding tasks.
| Item | Specification |
|---|---|
| Engine Power | 90 HP |
Therefore, this tractor handles heavier implements than the standard 690 with ease.
Drivetrain and Mechanical Features
| Feature | Specification |
|---|---|
| Drive Options | 2WD / 4WD |
| Final Drives | Outboard planetary |
| Differential Lock | Mechanical rear |
| Steering | Power steering |
| Brakes | Hydraulic wet disc |
| Cab | Standard, A/C optional |
These features improve traction, safety, and comfort during long working hours.
Hydraulic System
The MF 690T uses an open-center hydraulic system designed for utility farming.
| Item | Specification |
|---|---|
| Hydraulic Type | Open center |
| Control Valves | 2 |
| Total Flow | 17 gpm (64.3 L/min) |
Because of this flow rate, the tractor supports a wide range of hydraulic implements.
Rear Hitch Capacity
| Item | Specification |
|---|---|
| Hitch Type | Category II |
| Hitch Control | Position & Draft |
| Rear Lift Capacity (24″) | 4,130 lbs (1,873 kg) |
This capacity makes the MF 690T suitable for medium to heavy rear-mounted equipment.
PTO Specifications
| Item | Specification |
|---|---|
| PTO Type | Independent |
| Rear PTO Speeds | 540 / 1000 |
Thus, the MF 690T remains compatible with standard PTO implements worldwide.
Dimensions, Weight, and Tires
| Item | Specification |
|---|---|
| Wheelbase | 90 in (228 cm) |
| Operating Weight | 8,020 lbs (3,637 kg) |
| Front Tire | 10.00-16 |
| Rear Tire | 16.9-34 |
The balanced size improves maneuverability while maintaining stability under load.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Battery Voltage | 12V |
This simple electrical system supports easy maintenance in overseas markets.
