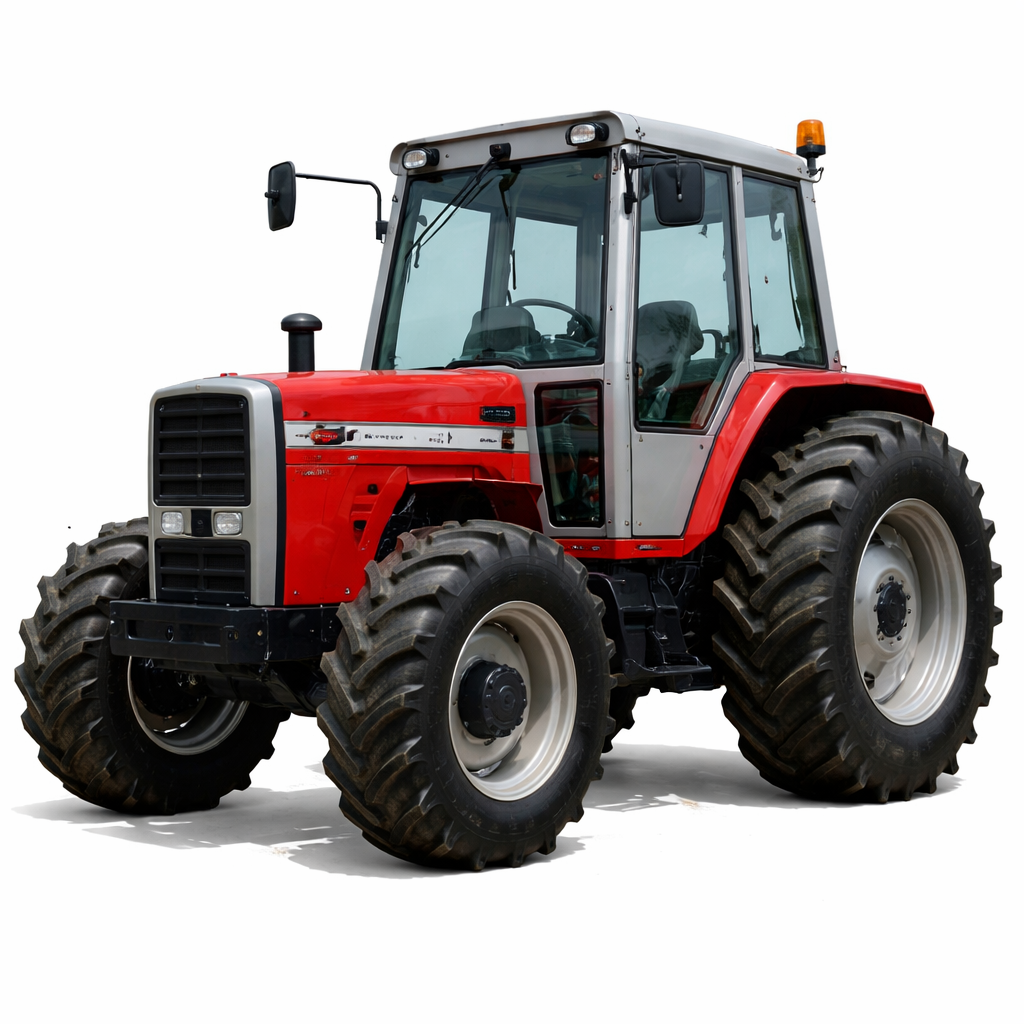

The Massey Ferguson 690 is a dependable utility tractor from the respected MF 600 Series, produced between 1983 and 1986.
It was built for farmers who need reliable horsepower, strong hydraulics, and simple mechanical systems that last.
Manufactured by Massey Ferguson in Beauvais, France, this model earned a solid reputation in many export markets.
As a result, the MF 690 remains a strong option in today’s used tractor market.
Series Position and Model Lineup
The MF 690 sits above the MF 670 and below the later 3060 series.
Therefore, it offers a practical balance between power and operating cost.
| Model | Engine Power* |
|---|---|
| MF 670 | 62.2 HP |
| MF 690 | 80.0 HP |
| MF 690T | 90.0 HP |
*Estimated engine power for comparison.
Variants Available
The Massey Ferguson 690 was offered in two main versions.
This flexibility helped farmers choose the right level of performance.
| Variant | Description |
|---|---|
| 690 | Naturally aspirated |
| 690T | Turbocharged |
Engine Specifications – Perkins 4.1L Diesel
At the heart of the MF 690 is a durable Perkins diesel engine.
This engine is known worldwide for smooth torque delivery and long service life.
| Item | Specification |
|---|---|
| Engine Manufacturer | Perkins |
| Engine Type | Diesel |
| Cylinders | 4 |
| Displacement | 4.1 L |
| Rated Engine Power | 80 HP (59.7 kW) |
| Fuel Tank Capacity | 38.3 gal (145.0 L) |
Because of its larger displacement, this engine handles heavy utility work with ease.
In addition, Perkins parts are widely available in many regions.
Transmission – Simple and Reliable
The MF 690 uses a mechanical gear transmission designed for durability.
| Item | Specification |
|---|---|
| Transmission Type | Gear |
| Gears | 12-speed |
As a result, operators enjoy steady speed control in the field and on the road.
Power Output and Tested Performance
The Massey Ferguson 690 delivers dependable power for PTO and drawbar work.
| Item | Claimed Output | Tested Output |
|---|---|---|
| Engine Power | 80.0 HP | — |
| PTO Power | 65.0 HP (48.5 kW) | 65.68 HP (49.0 kW) |
| Drawbar Power | — | 52.38 HP (39.1 kW) |
Therefore, the tractor supports mowing, baling, tillage, and transport tasks efficiently.
Drivetrain and Mechanical Features
| Feature | Specification |
|---|---|
| Drive Options | 2WD / 4WD |
| Final Drives | Outboard planetary |
| Differential Lock | Mechanical rear |
| Steering | Power steering |
| Brakes | Hydraulic wet disc |
| Cab | Standard, A/C optional |
These features improve safety, traction, and operator comfort during long working days.
Hydraulic System
The MF 690 uses an open-center hydraulic system suited for utility farming.
| Item | Specification |
|---|---|
| Hydraulic Type | Open center |
| Control Valves | 2 or 3 |
| Implement Pump Flow | 10 gpm (37.9 L/min) |
| Hitch Pump Flow | 7 gpm (26.5 L/min) |
| Total Flow | 17 gpm (64.3 L/min) |
Because of this flow rate, the tractor handles common hydraulic implements smoothly.
Rear Hitch Capacity
| Item | Specification |
|---|---|
| Hitch Type | Category II |
| Hitch Control | Position & Draft |
| Rear Lift Capacity (24″) | 4,130 lbs (1,873 kg) |
This capacity suits medium to heavy rear-mounted equipment.
PTO Specifications
| Item | Specification |
|---|---|
| PTO Type | Independent |
| PTO Clutch | Hydraulic |
| PTO Speeds | 540 / 1000 |
| PTO Shaft | 1.375 inch |
Thus, the MF 690 stays compatible with a wide range of global implements.
Dimensions, Weight, and Tires
| Item | Specification |
|---|---|
| Wheelbase | 90 in (228 cm) |
| Operating Weight | 8,020 lbs (3,637 kg) |
| Front Tire | 10.00-16 |
| Rear Tire | 16.9-34 |
The compact wheelbase improves maneuverability, especially in mixed-use farms.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Battery Voltage | 12V |
This simple electrical layout supports easy maintenance worldwide.
Serial Number Reference
| Year | Serial Number Start |
|---|---|
| 1983 | B197022 / K181026 |
| 1984 | T101001 |
| 1985 | L101001 |
| 1986 | U031001 |
