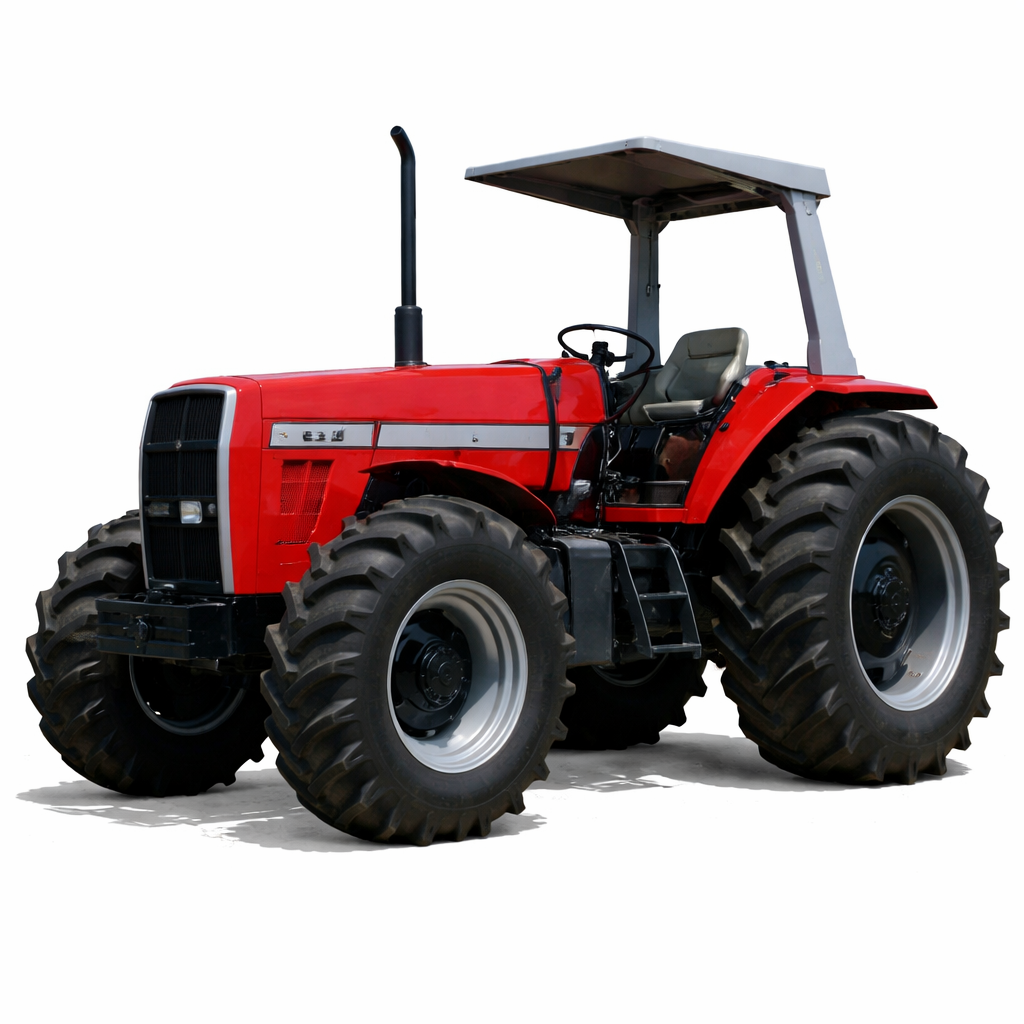

The Massey Ferguson 680 is a high-horsepower row-crop tractor from the reliable MF 600 Series, produced between 2003 and 2009.
It was developed for farmers who demand strong pulling power, stable hydraulics, and long-term durability in large-scale operations.
Manufactured by Massey Ferguson, a part of AGCO, this model reflects proven engineering and global service support.
As a result, the MF 680 continues to attract attention in the international used tractor market.
Series Position and Power Class
The Massey Ferguson 680 is positioned at the top end of the MF 600 Series.
Therefore, it is ideal for demanding row-crop applications.
| Model | Engine Power |
|---|---|
| MF 660 | 150.0 HP |
| MF 680 | 165.0 HP |
Because of this power increase, the MF 680 suits heavy tillage, large implements, and transport work.
Engine Specifications – Perkins 6.0L Diesel
At the heart of the MF 680 is a robust Perkins diesel engine, trusted worldwide for torque and longevity.
| Item | Specification |
|---|---|
| Engine Manufacturer | Perkins |
| Engine Type | Diesel |
| Cylinders | 6 |
| Displacement | 6.0 L |
| Rated Engine Power | 165 HP (123.0 kW) |
| Fuel Tank Capacity | 117.6 gal (445.1 L) |
Thanks to its large displacement, this engine delivers strong low-end torque.
In addition, the generous fuel tank supports long working hours without frequent refueling.
Transmission – Proven Synchronized Gearbox
The Massey Ferguson 680 uses a mechanical synchronized transmission designed for reliability.
| Item | Specification |
|---|---|
| Transmission Type | Synchronized |
| Gears | 12-speed |
As a result, operators enjoy precise speed control in both field and road conditions.
Moreover, the mechanical design helps reduce downtime and service costs.
Power Output and PTO Performance
The MF 680 provides impressive engine and PTO power for heavy-duty work.
| Item | Specification |
|---|---|
| Engine Power | 165 HP |
| PTO Power (claimed) | 80 HP (59.7 kW) |
Therefore, the tractor supports large PTO-driven implements such as balers, rotary tillers, and pumps.
Drivetrain and Mechanical Features
| Feature | Specification |
|---|---|
| Drive Options | 2WD / 4WD |
| Differential Lock | Mechanical rear |
| Operator Protection | Two-post ROPS |
| Cab | Optional |
These features improve traction, safety, and adaptability in different farming environments.
Hydraulic System – Strong and Stable
Hydraulic performance plays a key role in modern farming.
The MF 680 offers reliable hydraulic pressure and flow.
| Item | Specification |
|---|---|
| Hydraulic Pressure | 3,046 psi (210 bar) |
| Pump Flow | 15.9 gpm (60.2 L/min) |
Because of this capacity, the tractor handles heavy implements with confidence.
Rear Hitch Capacity
| Item | Specification |
|---|---|
| Hitch Type | Category II |
| Hitch Control | Position & Draft |
| Rear Lift Capacity | 9,921 lbs (4,500 kg) |
| Optional Lift Capacity | 12,125 lbs (5,499 kg) |
This lifting power supports large mounted and semi-mounted equipment.
PTO Specifications
| Item | Specification |
|---|---|
| PTO Type | Independent |
| Rear PTO Speeds | 540 / 1000 |
| PTO Shaft | 1.375 inch |
| Engine RPM @ PTO | 540 @ 2160 / 1000 @ 2160 |
Thus, the MF 680 remains compatible with a wide range of global implements.
Dimensions, Weight, and Tires
| Item | Specification |
|---|---|
| Wheelbase | 115.8 in (294 cm) |
| Operating Weight | 13,228 – 14,054 lbs |
| Front Tire | 14.9-28 |
| Rear Tire | 18.4-38 |
The long wheelbase and heavy weight improve stability during high-load operations.
Consequently, traction remains strong even in challenging field conditions.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery Voltage | 12V |
This simple electrical layout supports easy maintenance worldwide.
