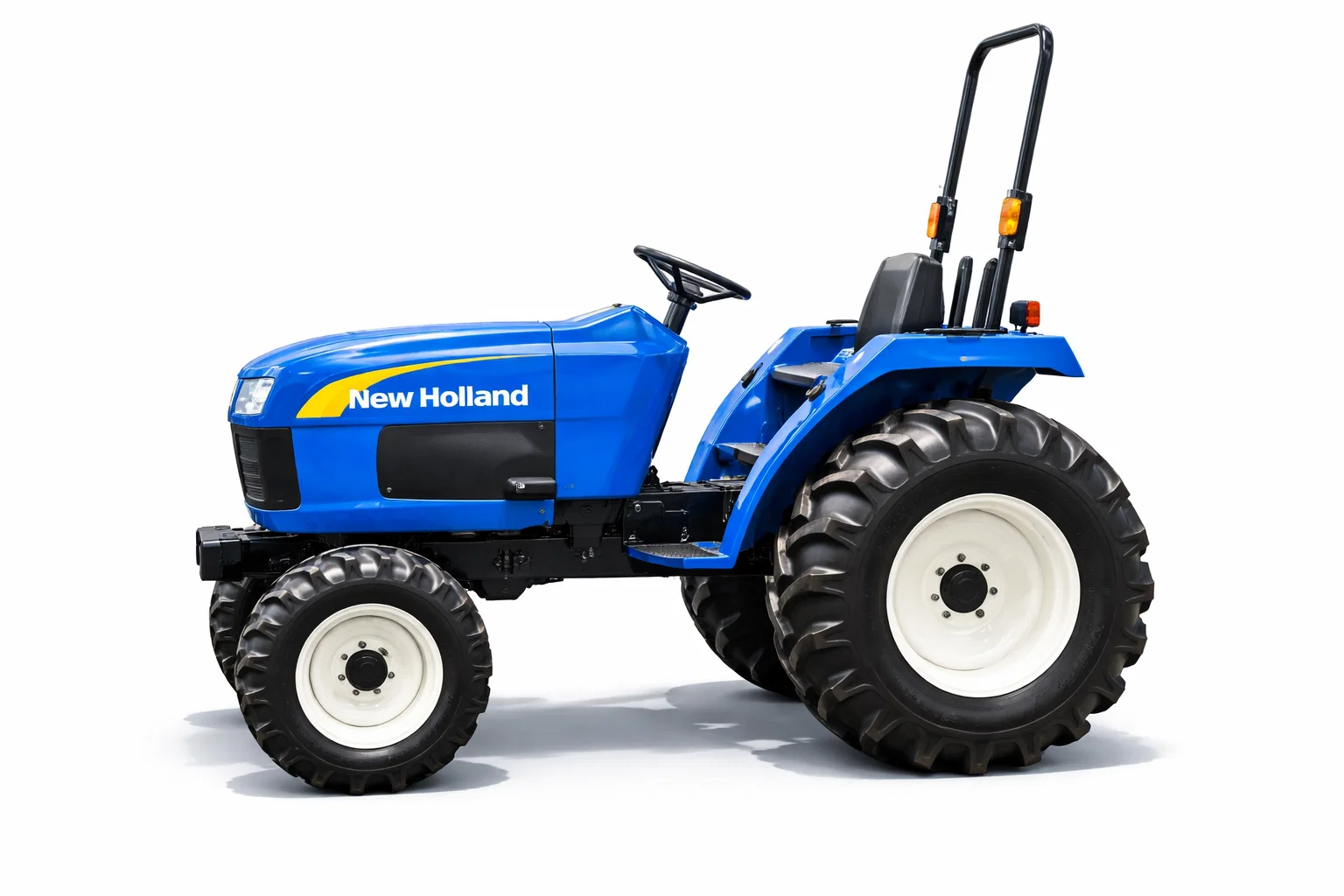

Overview of New Holland T1520
The New Holland T1520 is part of the T1500 Series.
It offers higher output than the T1510 while keeping a compact body.
Therefore, it suits farming, landscaping, and loader work.
| Item | Details |
|---|---|
| Model | New Holland T1520 |
| Production Years | 2008 – 2013 |
| Series | T1500 Series |
| Tractor Type | Compact Utility Tractor |
| Manufacturer | New Holland |
| Series Map | T1510 / T1520 / T1530 |
| Engine Power | 35.0 hp |
Engine Specifications
The engine is a major upgrade point of this Used New Holland Tractor.
It uses a larger Shibaura diesel engine for stronger torque.
| Item | Specification |
|---|---|
| Engine Model | Shibaura |
| Displacement | 1.7 L |
| Cylinders | 3-cylinder diesel |
| Engine Power (Gross) | 35 hp / 26.1 kW |
| Fuel Tank | 7.1 gal / 26.9 L |
As a result, the T1520 handles heavier tasks with ease.
Transmission Options
The T1520 provides two transmission choices.
Thus, operators can select comfort or mechanical simplicity.
| Type | Details |
|---|---|
| Hydrostatic | Smooth speed control |
| Gear | 9-speed unsynchronized gear |
Because of this flexibility, the tractor fits many work styles.
Power Output (Engine & PTO)
| Item | Output |
|---|---|
| Engine Power | 35 hp |
| PTO Power (Gear) | 29.5 hp / 22.0 kW |
| PTO Power (Hydro) | 28 hp / 20.9 kW |
This power level supports demanding implements and attachments.
Mechanical Features
The mechanical design emphasizes traction and safety.
| Item | Specification |
|---|---|
| Drive | Four-wheel drive (4WD) |
| Steering | Power steering |
| Brakes | Wet disc brakes |
| Safety | Two-post folding ROPS |
Therefore, the T1520 performs confidently on slopes and soft ground.
Hydraulics System
| Item | Specification |
|---|---|
| Hydraulic Type | Open center |
| Pump Flow | 6.2 gpm / 23.5 lpm |
| Steering Flow | 3.8 gpm / 14.4 lpm |
This system ensures stable operation of loaders and rear implements.
3-Point Hitch & Lifting Capacity
| Item | Specification |
|---|---|
| Rear Hitch Type | Category I |
| Rear Lift (24″/610 mm) | 1,635 lbs / 741 kg |
Thus, the tractor supports a wide range of farming tools.
Power Take-Off (PTO)
| Position | Type | Speed |
|---|---|---|
| Rear PTO | Live | 540 rpm |
| Mid PTO | Live | 2000 rpm |
Live PTO improves productivity during mowing and loader work.
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 63 in / 160 cm |
| Weight | 2,400 lbs / 1,088 kg |
| Front Tires | 7.4 x 14 |
| Rear Tires | 11.2 x 24 |
Its compact size allows easy transport and storage.
Available Attachments
This Used New Holland Tractor supports many attachments.
Therefore, it adapts well to seasonal work.
| Attachments |
|---|
| 60″ Mid-mount mower deck |
| 72″ Mid-mount mower deck |
| Snow blower |
| Blade |
| Front-end loader |
| Backhoe |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 40 amps |
| Battery | 12V / 420 CCA |
This system provides reliable starting in various climates.
Why Choose a Used New Holland T1520?
There are clear reasons why buyers prefer this model.
-
More power than T1510
-
Reliable Shibaura diesel engine
-
Full-time 4WD for better traction
-
High global demand and resale value
As a result, the Used New Holland Tractor T1520 remains a strong investment.
