Kubota KL23 – Compact Utility Tractor Specifications
Overview
The Kubota KL23 is a compact utility tractor from the KL Series, manufactured between 1999 and 2005 for the Japanese domestic market.
It sits above the KL21 and below the KL25, offering increased engine output and strong hydraulic capability while maintaining a compact footprint.
Powered by a 1.5-liter Kubota diesel engine, the KL23 is well suited for farm work, landscaping, loader operations, and PTO-driven implements, making it a popular choice for export to a wide range of agricultural markets.
General Information
| Item | Specification |
|---|---|
| Model | Kubota KL23 |
| Series | KL Series |
| Production Years | 1999 – 2005 |
| Manufacturer | Kubota |
| Tractor Type | Compact Utility Tractor |
Series map:
KL21 → KL23 → KL25
(Next generation: KL230, 2006–2007)
Engine
| Item | Specification |
|---|---|
| Engine Model | Kubota diesel |
| Engine Type | 4-stroke, liquid-cooled |
| Cylinders | 3 |
| Displacement | 1.5 L |
| Fuel Type | Diesel |
| Fuel Tank Capacity | 7.1 gal (26.9 L) |
Engine Power
| Item | Specification |
|---|---|
| Engine Output | 22.7 hp |
| Power Output | 16.9 kW |
The KL23 delivers smooth torque and stable power for continuous PTO and loader work.
Transmission
| Item | Specification |
|---|---|
| Transmission Options | 16-speed / 24-speed |
| Drive System | Four-wheel drive (4WD) |
The wide gear range allows precise speed matching for cultivation, transport, and implement operation.
Mechanical Features
| Item | Specification |
|---|---|
| Drive | Four-wheel drive |
| Steering | Power steering |
| Brakes | Mechanical wet disc brakes |
| ROPS | Two-post ROPS |
| Cab | Optional |
Hitch & PTO
Rear Hitch
| Item | Specification |
|---|---|
| Rear Hitch Type | Category I |
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| Rear PTO Type | 540 rpm (1.375 in) |
| PTO Speeds @ 2500 rpm | 542 / 764 / 947 / 1263 |
| Reverse PTO | −947 rpm |
Dimensions & Tires
Wheelbase
| Configuration | Measurement |
|---|---|
| ROPS Version | 61 in (154 cm) |
| Cab Version | 63 in (160 cm) |
Weight
| Item | Specification |
|---|---|
| Operating Weight | 2,840 – 2,877 lbs |
Tire Sizes
| Position | Size |
|---|---|
| Front Tires | 6-14 |
| Rear Tires | 9.5-22 |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery Voltage | 12 V |
Photos

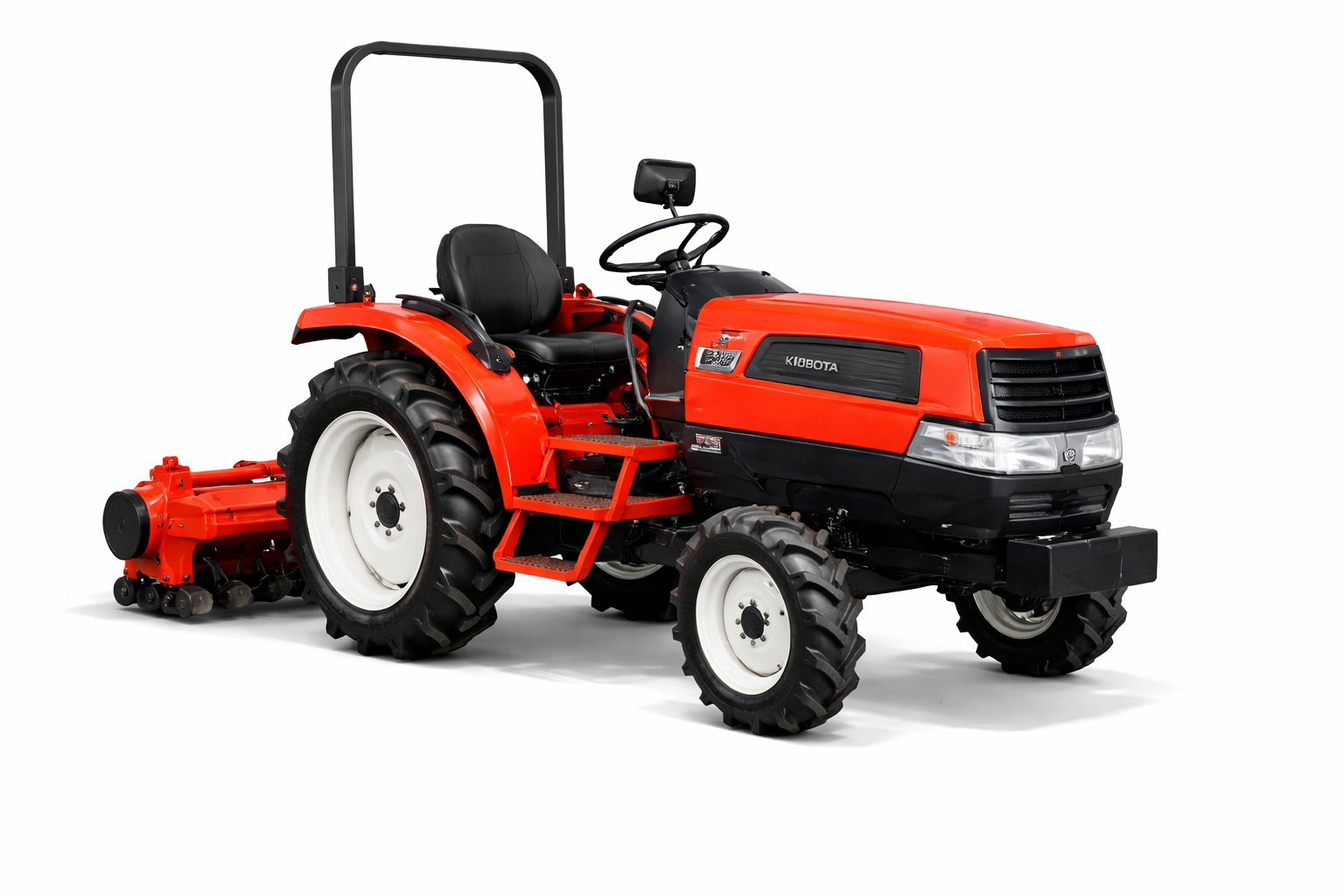

Currently, no official public photos of the Kubota KL23 are widely available.
Images used on this page may be reference visuals of similar KL Series models.
Why the Kubota KL23 Is Popular for Export
-
Powerful 1.5L Kubota diesel engine
-
Standard 4WD with power steering
-
Category I hitch for common implements
-
Balanced size and weight for container shipping
-
Proven durability of the KL Series
