Kubota KB225 Tractor Specifications & Overview
Overview
The Kubota KB225 is a sub-compact utility tractor from the KB Kingbull Series, produced for the Japanese domestic market between 2008 and 2009.
Designed for precision farming, landscaping, and light agricultural work, the KB225 combines compact size, high efficiency, and Kubota’s proven diesel reliability.
With 22.1 horsepower, four-wheel drive, and optional half-track configuration, this model is well-suited for operators who need strong traction and versatility in limited spaces.
General Information
| Item | Specification |
|---|---|
| Model | KB225 |
| Series | KB Kingbull Series |
| Production Years | 2008 – 2009 |
| Manufacturer | Kubota |
| Tractor Type | Sub-Compact Utility Tractor |
Variants
| Variant | Description |
|---|---|
| KB225 | Wheeled version |
| KB225-PC | Half-track version |
Engine
| Item | Specification |
|---|---|
| Engine Model | Kubota diesel |
| Engine Type | 4-stroke, liquid-cooled |
| Cylinders | 3 |
| Displacement | 1.3 L |
| Fuel Type | Diesel |
| ROPS Fuel Tank | 7.1 gal (26.9 L) |
| Cab Fuel Tank | 5.6 gal (21.2 L) |
Engine Power
| Item | Specification |
|---|---|
| Engine Output | 22.1 hp |
| Power Output | 16.5 kW |
Transmission
| Item | Specification |
|---|---|
| Standard Transmission | 9-speed gear |
| Optional Transmission | 36-speed power shift |
| Drive System | Four-wheel drive (4WD) |
Mechanical Features
| Item | Specification |
|---|---|
| Steering | Power steering |
| Brakes | Mechanical wet disc brakes |
| ROPS | Two-post ROPS |
| Cab | Optional (with air-conditioning) |
| Operator Station | Open (ROPS) |
Hydraulics & Hitch
| Item | Specification |
|---|---|
| Rear Hitch Type | Category 0 |
| Rear Lift Capacity | Approx. 650 kg (1,433 lbs) |
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| Rear PTO Type | 540 rpm (1.375 in) |
| Engine Speed @ PTO | 530 / 799 / 1182 rpm @ 2600 rpm |
| Reverse PTO | −662 rpm @ 2600 rpm |
Dimensions & Tires
| Item | ROPS Version | Cab Version |
|---|---|---|
| Wheelbase | 53.2 in (135 cm) | 53.7 in (136 cm) |
| Weight | 1,576 – 1,973 lbs | 1,576 – 1,973 lbs |
Tire Sizes
| Position | Size |
|---|---|
| Front Tires | 6-14 |
| Rear Tires | 9.5-22 |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery Voltage | 12 V |
Photos
Currently, no official public photos of the Kubota KB225 are widely available.

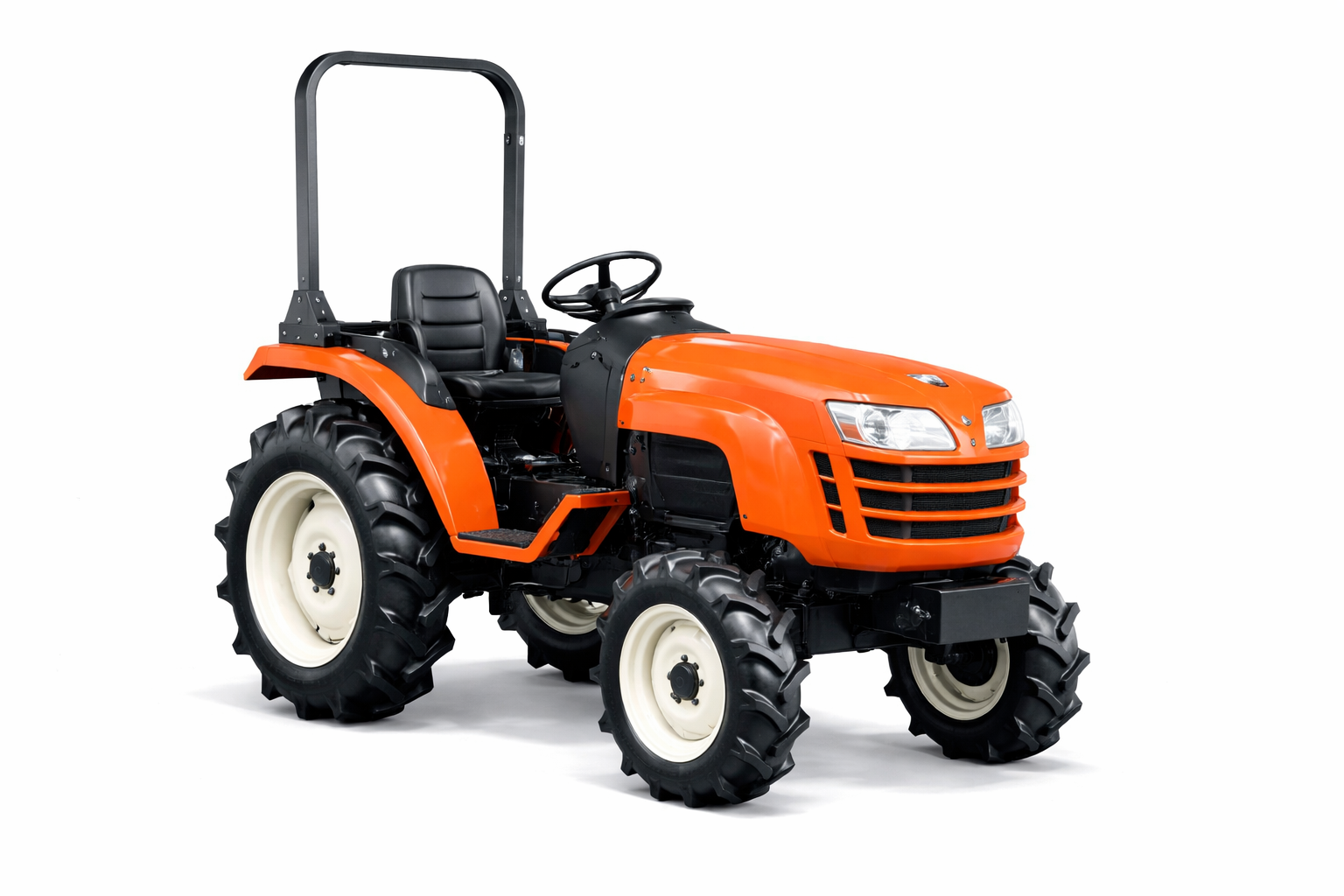

Catalog-style images shown on this page are reference visuals for model identification.
Why the Kubota KB225 Is Popular for Export
-
Compact size, easy container loading
-
Reliable Kubota diesel engine
-
4WD standard for varied terrain
-
Optional half-track version for soft or wet ground
-
Ideal for small farms, landscaping, and municipal work
