Yanmar YM1700 – Compact Utility Tractor Overview
Manufacturer: Yanmar
Production Years: 1982 – 1983
Category: Compact Utility Tractor
The Yanmar YM1700 is a compact yet capable utility tractor developed in the early 1980s for small to mid-scale agricultural work. Known for its simple mechanical structure, durable diesel engine, and versatile PTO options, the YM1700 remains a highly regarded model in many overseas markets for farming, landscaping, and utility operations.
Overview
| Item | Details |
|---|---|
| Model | Yanmar YM1700 |
| Tractor Type | Compact Utility Tractor |
| Production | 1982 – 1983 |
| Operator Station | Open platform |
| Drive Options | 2WD / 4WD |
| Steering | Manual |
| Brake System | Mechanical drum brakes |
| Manufacturing Origin | Japan |
Engine
| Item | Specification |
|---|---|
| Engine Manufacturer | Yanmar |
| Engine Type | Diesel |
| Cylinders | 2-cylinder |
| Displacement | 1.0 L |
| Fuel Tank Capacity | 5.8 gal (22.0 L) |
| Cooling System | Liquid-cooled |
| Fuel System | Indirect injection |
| Rated Output | 17 hp (12.7 kW) |
The 2-cylinder Yanmar diesel engine delivers reliable torque and low fuel consumption, making it suitable for long working hours with minimal operating costs.
Power
| Item | Value |
|---|---|
| Engine Power | 17 hp |
| Engine Power (kW) | 12.7 kW |
Transmission
| Item | Specification |
|---|---|
| Transmission Type | 8-speed gear |
| Drive Configuration | 2WD / 4WD |
| Clutch | Dry single plate |
| Final Drive | Gear |
The 8-speed gear transmission provides flexible speed control for field work, transport, and PTO-driven applications.
Variants
| Model | Drive Type |
|---|---|
| YM1700 | 2WD |
| YM1700D | 4WD |
The 4WD version offers improved traction on uneven terrain and soft or wet soil conditions.
Hitch & PTO
| Item | Specification |
|---|---|
| Rear Hitch Type | Category I |
| Rear Lift Capacity | 1,433 lbs (650 kg) |
| Rear PTO Speeds | 540 / 750 / 1000 rpm |
Multiple PTO speed options allow the YM1700 to operate a wide range of implements such as rotary tillers, mowers, pumps, and sprayers.
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 55.9 in (141 cm) |
| Operating Weight | 1,829 – 1,918 lbs |
| Operating Weight | 830 – 870 kg |
| Front Tire | 4.00 × 12 |
| Rear Tire | 8.3 × 24 |
(Dimensions and tire specifications may vary slightly depending on configuration and market.)
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery Voltage | 12 V |
Applications
-
Small and medium-scale farming
-
Tilling and soil preparation
-
Orchard and vineyard maintenance
-
Grass cutting and mowing
-
Light transport and utility work
Photos
-

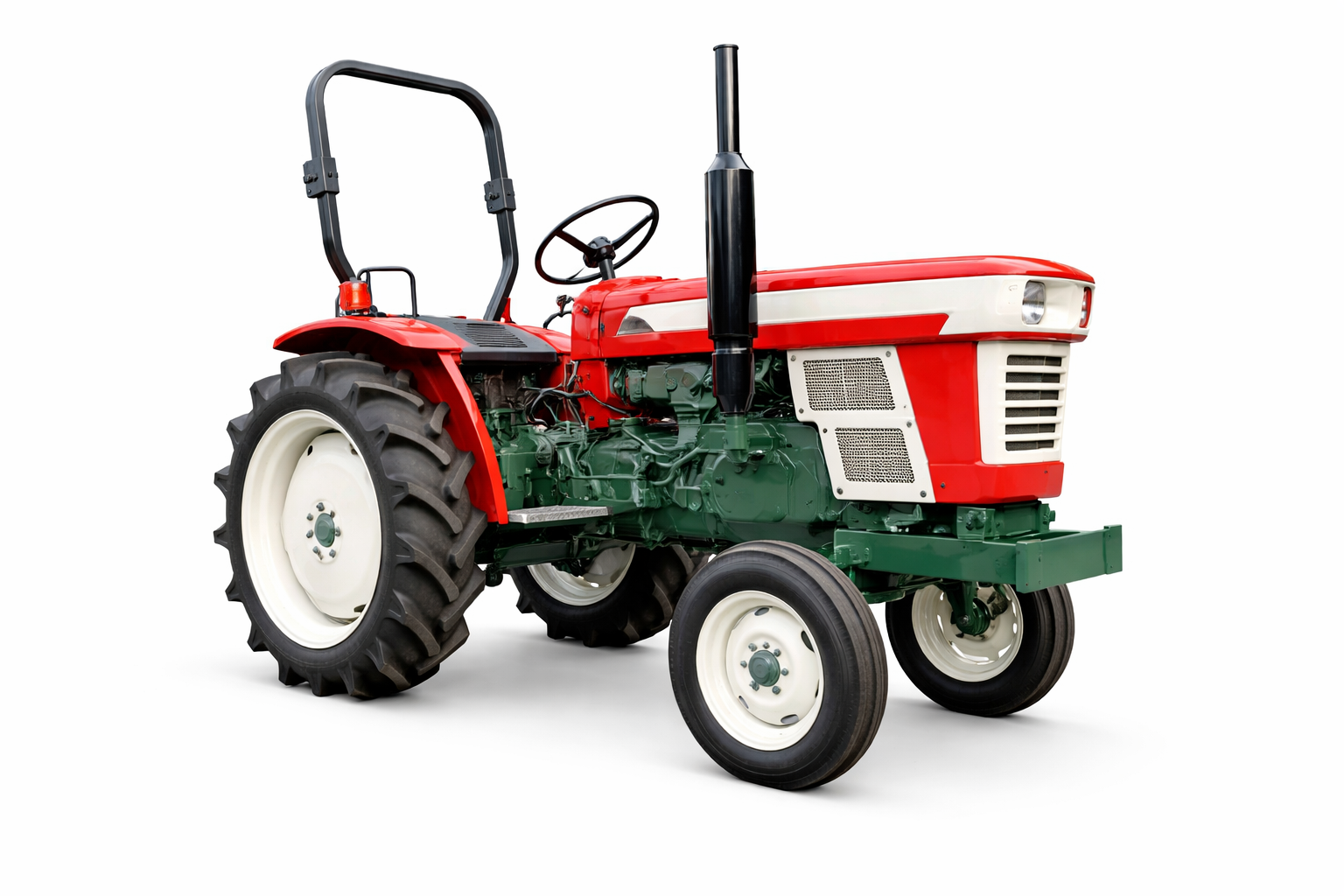

Yanmar YM1700 tractor (right-side view)
-
Exterior and chassis details
-
Rear hitch and PTO area
(Actual photos vary by unit condition and export specification.)
Why the Yanmar YM1700 Is Popular for Export
-
Proven Yanmar diesel reliability
-
Simple and robust mechanical design
-
Multiple PTO speed options
-
Compact size with strong lifting capacity
-
Easy maintenance and parts availability
