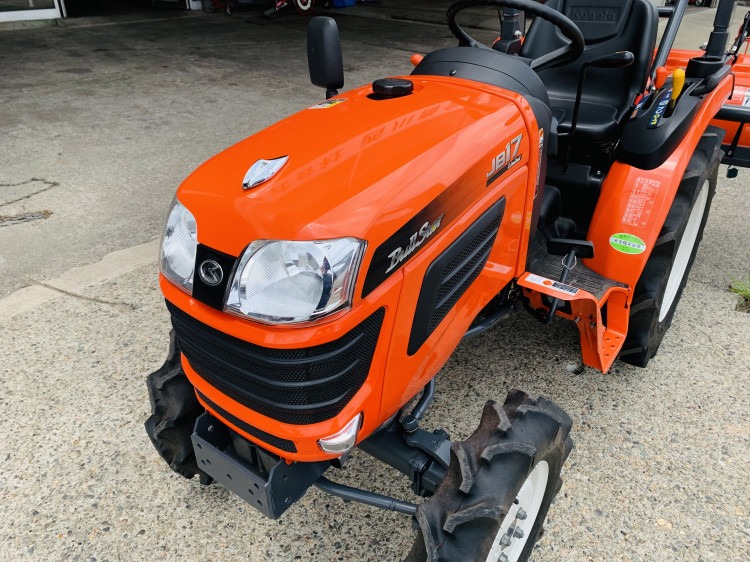

Kubota JB17X Tractor Specifications & Overview
Overview
The Kubota JB17X is a sub-compact utility tractor from Kubota’s JB Bullstar Extra Series, designed for precision work in small farms, orchards, greenhouses, and landscaping operations.
Positioned between the JB15X and JB19X, the JB17X delivers a strong balance of compact size, fuel efficiency, and reliable diesel performance.
With four-wheel drive, power steering, and a rear PTO, the JB17X is ideal for users who need a durable yet easy-to-handle tractor for light agricultural and maintenance tasks.
Engine
| Item | Specification |
|---|---|
| Engine manufacturer | Kubota |
| Engine type | Diesel |
| Cylinders | 3-cylinder |
| Displacement | 1.0 L |
| Rated power | 16.8 hp (12.5 kW) |
| Fuel tank capacity | 3.7 gal (14.0 L) |
| Cooling system | Liquid-cooled |
| Emissions | Mechanical diesel (pre-DPF generation) |
The compact 1.0-liter diesel engine is known for long service life, low fuel consumption, and easy maintenance—qualities highly valued in export markets.
Transmission
| Item | Specification |
|---|---|
| Transmission type | Mechanical |
| Gears | 6-speed |
| Drive system | Four-wheel drive (4WD) |
| Steering | Power steering |
| Brakes | Wet disc brakes |
The 6-speed transmission provides smooth control at low speeds, making the JB17X suitable for row work and implement operation.
Power & Mechanical
| Item | Specification |
|---|---|
| Engine output | 16.8 hp |
| PTO type | Rear PTO |
| PTO speed | 540 rpm |
| PTO ratios | 551:2600 / 967:2600 |
| ROPS | Two-post ROPS |
| Hitch category | Rear Type 0 |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 50 in (127 cm) |
| Operating weight | 1,268 lbs (575 kg) |
| Front tires | 5.00-12 |
| Rear tires | 8-18 |
Its compact wheelbase and lightweight design make transport and storage easy while maintaining stable field performance.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery voltage | 12 V |
Variants
| Model | Description |
|---|---|
| JB17X | Wheeled tractor |
| JB17X-PC | Half-track version |
