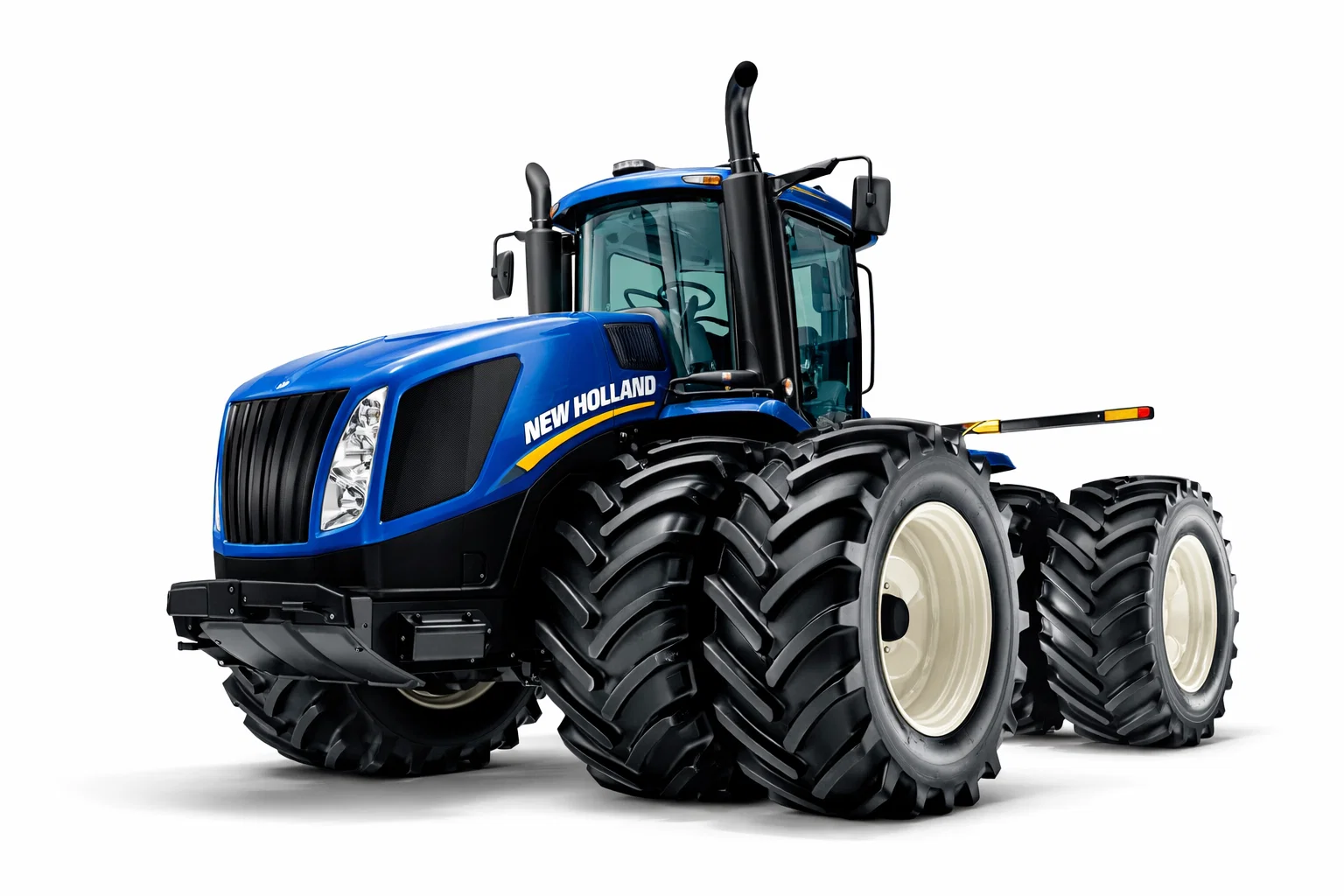

Overview of the New Holland T9.670
The New Holland T9.670 belongs to the early T9 Series, designed for large-scale agriculture. It focuses on raw pulling power, simple operation, and durability. Therefore, it fits farms that need strength and proven technology.
| Item | Details |
|---|---|
| Model | New Holland T9.670 |
| Series | T9 Series |
| Tractor Type | Four-Wheel Drive (4WD), Articulated |
| Production Years | 2011 – 2014 |
| Manufacturer | New Holland |
| Assembly Location | Fargo, North Dakota, USA |
T9 Series Position
| Model | Engine Power |
|---|---|
| T9.615 | 542.0 hp |
| T9.670 | 608.0 hp |
| T9.700 | Higher class |
Engine – FPT 12.9L Diesel Power
The T9.670 uses a large FPT 12.9-liter diesel engine. This engine delivers strong torque and stable output. As a result, it performs well during long, heavy operations.
| Item | Specification |
|---|---|
| Engine Manufacturer | FPT |
| Engine Type | Diesel |
| Displacement | 12.9 L |
| Cylinders | 6 |
| Rated Engine Power | 608 hp / 453.4 kW |
Fuel and DEF Capacity
| Item | Capacity |
|---|---|
| Fuel Tank | 480 gal / 1,816.8 L |
| DEF Tank | 62 gal / 234.7 L |
Because of these large tanks, the tractor can work for extended hours without frequent stops.
Transmission – 16-Speed Full Power Shift
The 16-speed full power shift transmission provides smooth gear changes under load. Moreover, it helps operators keep consistent speed in heavy draft work.
| Item | Details |
|---|---|
| Transmission Type | Full Power Shift |
| Number of Speeds | 16 |
| Application | Heavy tillage and wide implements |
Power Performance – Tested and Proven
The New Holland T9.670 shows strong real-world performance. In addition, official test results confirm its capability.
| Item | Output |
|---|---|
| Engine Power | 608 hp |
| Drawbar Power (tested) | 490.42 hp / 365.7 kW |
| PTO Power (tested) | 530.73 hp / 395.8 kW |
Therefore, this tractor handles deep tillage, large seeders, and heavy implements with confidence.
Mechanical Design and Operator Comfort
| Item | Specification |
|---|---|
| Drive System | Four-wheel drive |
| Steering | Articulated |
| Brakes | Hydraulic wet disc |
| Cab | Standard enclosed cab |
As a result, operators enjoy good visibility, comfort, and control during long workdays.
Hydraulic System – Ready for Modern Equipment
The closed-center load-sensing hydraulic system supports advanced implements.
| Item | Specification |
|---|---|
| Hydraulic Type | Closed center load sensing |
| System Pressure | 2000 psi / 137.9 bar |
| Rear Valves | 4 to 8 |
| Standard Flow | 45 gpm / 170.3 lpm |
| Optional Flow | Up to 113 gpm / 427.7 lpm (MegaFlow) |
Because of this flexibility, the tractor adapts easily to different farming tools.
Rear Hitch and PTO
| Item | Specification |
|---|---|
| Rear Hitch Type | 4N |
| Rear Lift Capacity (24″/610mm) | 20,000 lbs / 9,072 kg |
| Rear PTO | Optional |
| PTO Speed | 1000 rpm |
| PTO Shaft | 1-3/4 inch |
Dimensions and Weight
| Item | Specification |
|---|---|
| Wheelbase | 154 inches / 391 cm |
| Tractor Class | Heavy articulated tractor |
The long wheelbase improves traction and stability during demanding field work.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 200 amps |
| Batteries | 2 |
| Battery CCA | 1000 |
| Voltage | 12 V |
Why the Used New Holland T9.670 Is Still in Demand
The Used New Holland T9.670 Tractor remains popular for several reasons. First, it offers high horsepower with proven mechanical design. Next, it supports large implements without complex electronics. Finally, parts availability remains strong worldwide.
This model suits:
-
Large commercial farms
-
Heavy tillage operations
-
Contractors working wide fields
