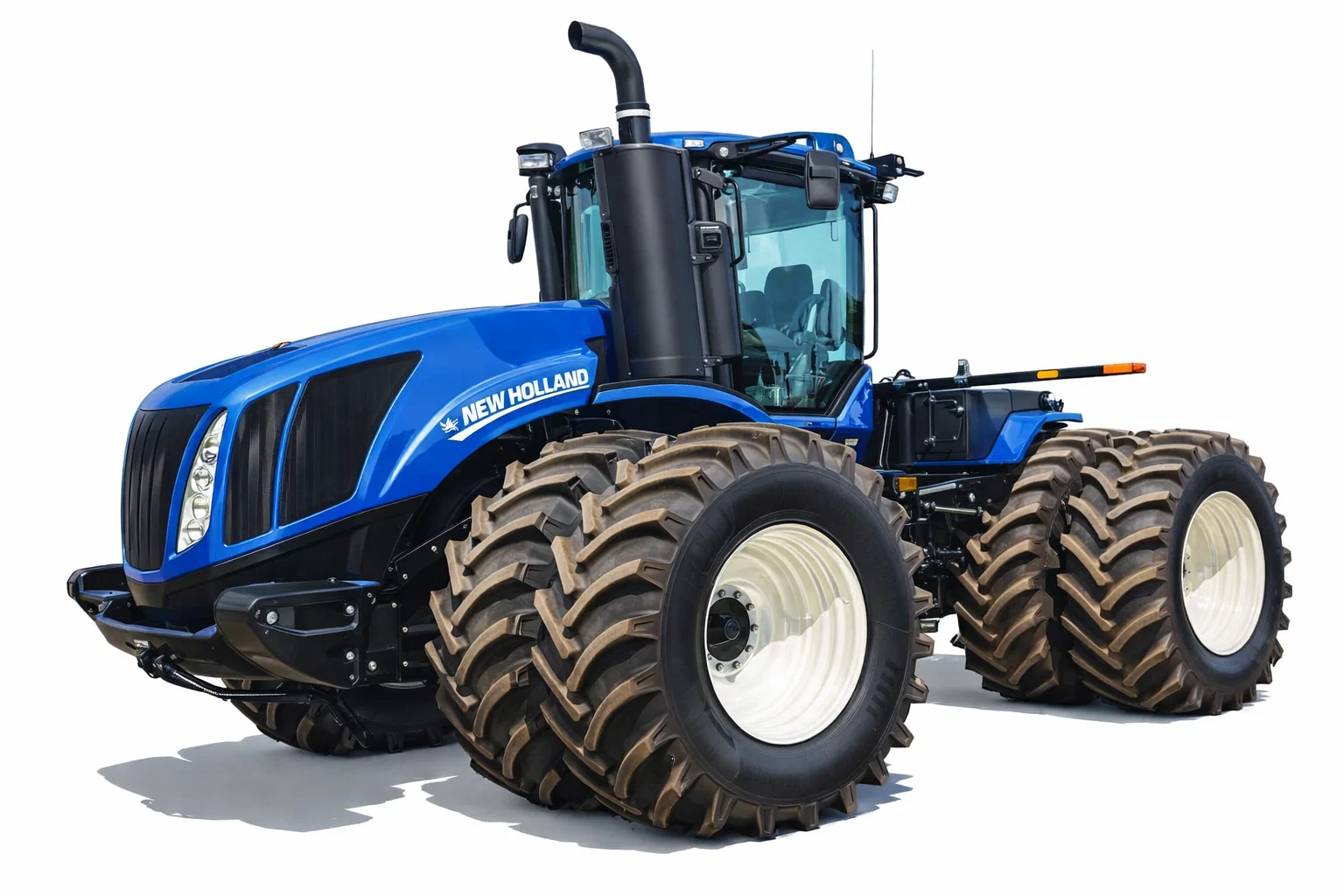

Overview of the New Holland T9.655
The New Holland T9.655 belongs to the latest T9 Series, which focuses on maximum horsepower, durability, and operator comfort. Therefore, it is ideal for heavy tillage, large planters, and wide implements.
| Item | Details |
|---|---|
| Model | New Holland T9.655 |
| Series | T9 Series |
| Tractor Type | Four-Wheel Drive (4WD), Articulated |
| Production Years | 2024 – Present |
| Manufacturer | New Holland (CNH Industrial) |
| Assembly Location | Fargo, North Dakota, USA |
T9 Series Lineup
| Model | Engine Power |
|---|---|
| T9.615 | 547.4 hp |
| T9.655 | 586.9 hp |
| T9.700 | 636.2 hp |
Engine – FPT 12.9L High-Output Diesel
The heart of the T9.655 is a large-displacement FPT engine. This engine delivers strong torque and stable output. As a result, it performs reliably during long working hours.
| Item | Specification |
|---|---|
| Engine Manufacturer | FPT |
| Engine Type | Diesel |
| Displacement | 12.9 L |
| Cylinders | 6 |
| Gross Engine Power | 586.9 hp / 437.7 kW |
| Maximum Engine Power | 647 hp / 482.5 kW |
| PTO Power (claimed) | 529.6 hp / 394.9 kW |
Fuel and DEF Capacity
| Item | Capacity |
|---|---|
| Fuel Tank | 440 gal / 1,665.4 L |
| DEF Tank | 66 gal / 249.8 L |
Because of these large tanks, the tractor can operate longer between refueling stops.
Transmission – 17-Speed Full Power Shift
The 17-speed full power shift transmission ensures smooth power delivery. Moreover, it allows easy speed adjustment under load.
| Item | Details |
|---|---|
| Transmission Type | Full Power Shift |
| Number of Speeds | 17 forward |
| Application | Heavy draft and wide implements |
Power Performance – Built for Maximum Productivity
The New Holland T9.655 delivers outstanding performance. In addition, its articulated design improves maneuverability in large fields.
| Item | Output |
|---|---|
| Gross Engine Power | 586.9 hp |
| Maximum Engine Power | 647 hp |
| PTO Power | 529.6 hp |
Therefore, this tractor handles the most demanding agricultural tasks with confidence.
Mechanical Features and Drivetrain
| Item | Specification |
|---|---|
| Drive System | Four-wheel drive |
| Final Drives | Planetary |
| Differential Lock | Automatic front and rear |
| Steering | Articulated power steering |
| Brakes | Hydraulic wet disc + engine brake |
| Cab | Standard cab with air-conditioning |
As a result, the tractor combines power, safety, and operator comfort.
Hydraulic System – Ready for Modern Implements
The closed-center hydraulic system supports advanced farming equipment.
| Item | Specification |
|---|---|
| Hydraulic Type | Closed center |
| Standard Pump Flow | 42 gpm / 159.0 lpm |
| Optional Pump Flow | 57 gpm / 215.7 lpm |
| High-Capacity Option | 98 gpm / 370.9 lpm |
| Maximum Option | 113 gpm / 427.7 lpm |
Thanks to these options, the tractor adapts easily to different farming needs.
Rear Hitch and Drawbar Capacity
| Item | Specification |
|---|---|
| Rear Hitch Type | IVN |
| Rear Lift Capacity (24″/610mm) | 22,750 lbs / 10,319 kg |
| Drawbar | Category 4 |
| Drawbar Option | Category 5 |
This capacity supports extra-large implements used in commercial farming.
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| PTO Type | Independent rear PTO |
| PTO Speed | 1000 rpm |
| PTO Shaft | 1.75 inch |
| Engine RPM at PTO | 1000 @ 1811 rpm |
Dimensions and Weight
| Item | Specification |
|---|---|
| Wheelbase | 154 inches / 391 cm |
| Operating Weight | 50,328 lbs / 22,828 kg |
The long wheelbase provides excellent stability during heavy pulling work.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 240 amps (330 amps optional) |
| Batteries | 3 |
| Battery CCA | 950 |
| Voltage | 12 V |
Why the Used New Holland T9.655 Is Popular Worldwide
The Used New Holland T9.655 Tractor attracts global buyers for several reasons. First, it delivers extreme horsepower with proven reliability. Next, it supports modern precision farming systems. Finally, New Holland offers strong global parts support.
Therefore, this model is ideal for:
-
Large commercial farms
-
Agribusiness contractors
-
Heavy tillage and large seeding operations
