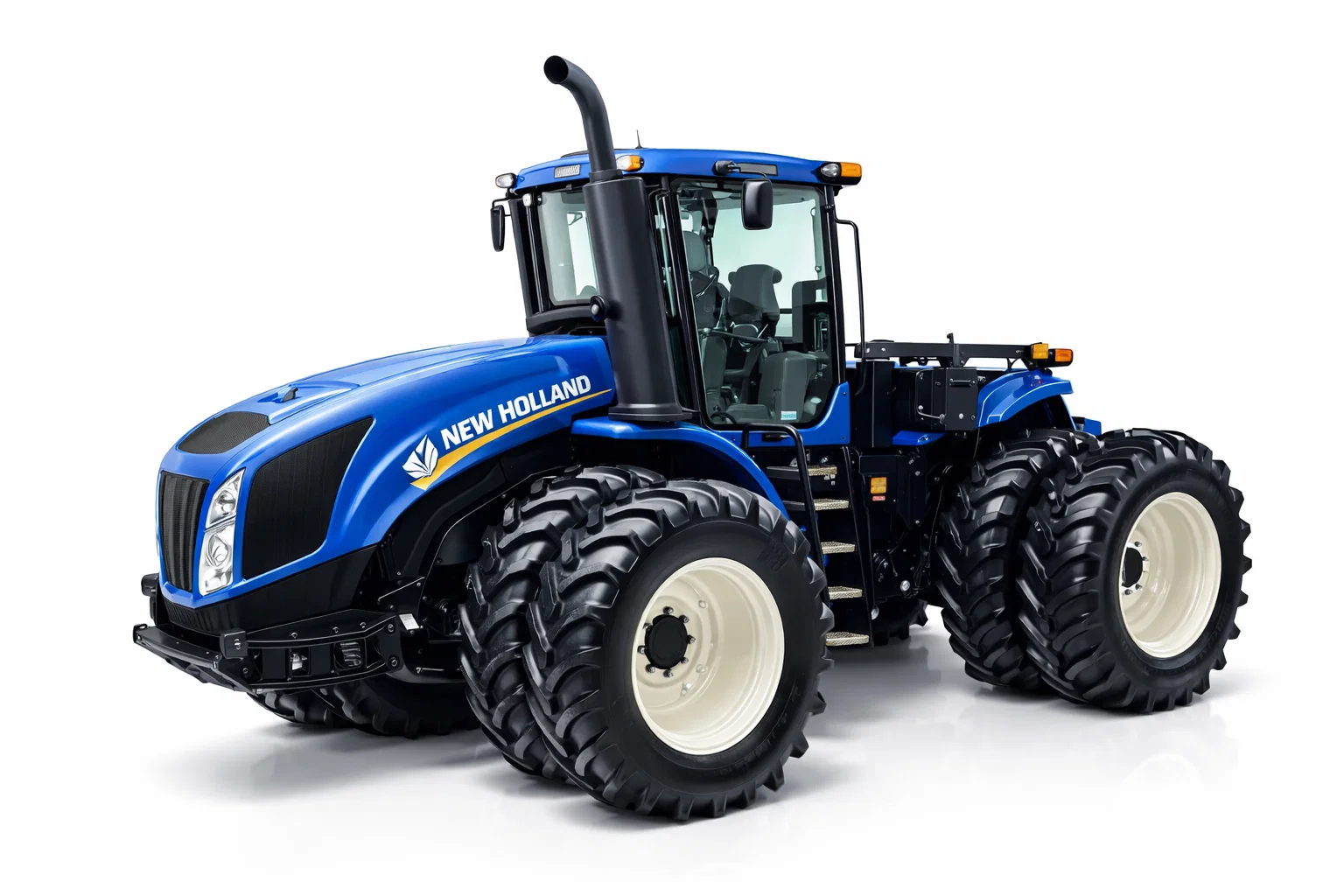

Overview of the New Holland T9.645
The New Holland T9.645 is part of the legendary T9 Series, designed for extreme workloads. It delivers strong pulling power, advanced hydraulics, and modern operator comfort. As a result, it supports heavy tillage, large planters, and wide implements with confidence.
| Item | Details |
|---|---|
| Model | New Holland T9.645 |
| Series | T9 Series |
| Tractor Type | Four-Wheel Drive (4WD), Articulated |
| Production Years | 2014 – 2023 |
| Manufacturer | New Holland (CNH Industrial) |
| Assembly Location | Fargo, North Dakota, USA |
Available Variants
| Variant | Description |
|---|---|
| T9.645 | Wheeled model |
| T9.645 SmartTrax | Crawler version |
| Similar Model | Case IH Steiger 580 |
Engine – FPT 12.9L 6-Cylinder Diesel
The T9.645 uses a large-displacement FPT diesel engine. This engine is well known for durability and fuel efficiency. Moreover, it delivers massive power for demanding field tasks.
| Item | Specification |
|---|---|
| Engine Manufacturer | FPT |
| Engine Type | Diesel |
| Displacement | 12.9 L |
| Cylinders | 6 |
| Gross Engine Power | 580 hp / 432.5 kW |
| Maximum Engine Power | 638 hp / 475.8 kW |
| PTO Power (claimed) | 473 hp / 352.7 kW |
Fuel and DEF Capacity
| Item | Capacity |
|---|---|
| Fuel Tank | 480 gal / 1,816.8 L |
| DEF Tank | 66 gal / 249.8 L |
Because of these large tanks, operators can work long hours without frequent stops.
Transmission – 17-Speed Full Power Shift
The New Holland T9.645 is equipped with a 17-speed full power shift transmission. Therefore, smooth gear changes are possible under load, which improves productivity.
| Item | Details |
|---|---|
| Transmission Type | Full Power Shift |
| Number of Speeds | 17 forward |
| Operation | Heavy-duty field and transport work |
Power Performance – Tested Results
This model is well respected for its real-world performance. In addition to rated power, official test results show impressive output.
| Item | Output |
|---|---|
| Drawbar Power (tested) | 495.25 hp / 369.3 kW |
| PTO Power (tested) | 540.36 hp / 402.9 kW |
Therefore, the T9.645 performs strongly even in the toughest conditions.
Mechanical Features – Strength and Control
The tractor is designed for stability and traction. Moreover, its articulated steering improves maneuverability despite its large size.
| Item | Specification |
|---|---|
| Drive System | Four-wheel drive |
| Steering | Hydrostatic articulated |
| Brakes | Wet disc brakes |
| Trailer Brakes | Hydraulic (optional) |
| Cab | Standard cab with air-conditioning |
Cab and Technology
The operator environment focuses on comfort and efficiency.
-
Comfort Ride cab suspension (optional)
-
ISOBUS compatibility
-
IntelliView IV display
-
IntelliSteer auto-guidance support
As a result, long working days become easier and more productive.
Hydraulic System – High Flow for Large Implements
The closed-center load-sensing system supports modern high-demand implements.
| Item | Specification |
|---|---|
| Hydraulic Type | Closed center load sensing (CCLS) |
| Remote Valves | 4 to 8 |
| Standard Flow | 42 gpm / 159.0 lpm |
| High-Flow Option | 57 gpm / 215.7 lpm |
| MegaFlow Option | 113 gpm / 427.7 lpm |
Because of this flexibility, the tractor adapts to many farming systems.
Rear Hitch and Drawbar
| Item | Specification |
|---|---|
| Rear Hitch Type | IVN (optional) |
| Rear Lift Capacity (24″/610mm) | 19,621 lbs / 8,900 kg |
| Drawbar | Category 4 |
| Drawbar Option | Category 5 |
This capacity allows the use of very large implements.
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| PTO Type | Independent rear PTO |
| PTO Speed | 1000 rpm |
| PTO Shaft | 1.75 inch |
| Engine RPM at PTO | 1000 @ 1811 rpm |
Dimensions and Weight
| Item | Specification |
|---|---|
| Wheelbase | 154 inches / 391 cm |
| Operating Weight | 44,046 lbs / 19,979 kg |
The long wheelbase improves traction and ride stability.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 200 amps |
| Batteries | 2 |
| Battery CCA | 1000 |
| Voltage | 12 V |
Why the Used New Holland T9.645 Is Popular Worldwide
The Used New Holland T9.645 Tractor is highly valued for several reasons. First, it offers proven high horsepower. Next, it supports large implements, which reduces field time. Moreover, New Holland parts availability is strong in many countries.
Therefore, this model suits:
-
Large commercial farms
-
Contractors and agribusiness companies
-
Wide-area tillage and seeding operations
Export the New Holland T9.645 with EVERY FARM TRACTOR
EVERY FARM TRACTOR can source, inspect, and export the New Holland T9.645 to customers worldwide. We manage export documents, logistics, and shipping carefully. As a result, buyers can import with confidence.
If you are searching for a Used New Holland Tractor, especially a high-horsepower 4WD model like the T9.645, please contact EVERY FARM TRACTOR today. We are ready to support your farming business anywhere in the world.
If you are looking for NEW HOLLAND TRACTOR, please check our stock lists.
