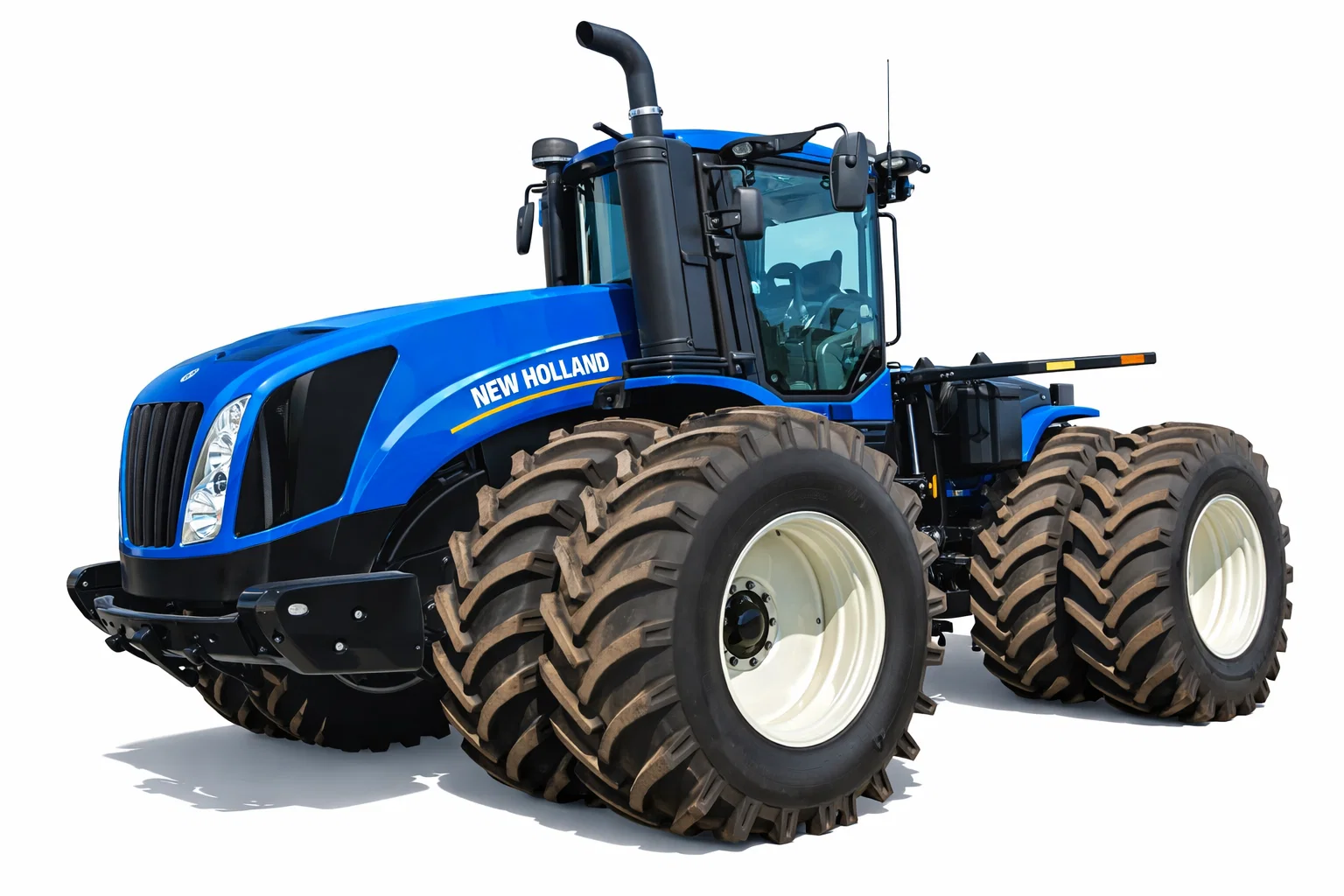

Overview of the New Holland T9.615
The New Holland T9.615 belongs to the flagship T9 Series. It is a four-wheel drive articulated tractor built for extreme productivity. Moreover, it combines massive horsepower with advanced technology.
| Item | Details |
|---|---|
| Model | New Holland T9.615 |
| Series | T9 Series |
| Tractor Type | Four-Wheel Drive (4WD) Tractor |
| Production Years | 2024 – |
| Manufacturer | New Holland (CNH Industrial) |
| Assembly Location | Fargo, North Dakota, USA |
Engine – FPT 12.9L High-Output Diesel
At the heart of the T9.615 is a large FPT diesel engine. This engine delivers exceptional power while maintaining efficiency. As a result, it supports demanding tasks such as deep tillage and large-scale seeding.
| Item | Specification |
|---|---|
| Engine Manufacturer | FPT |
| Engine Type | Diesel |
| Displacement | 12.9 L |
| Cylinders | 6-cylinder |
| Gross Engine Power | 547.4 hp / 408.2 kW |
| Maximum Engine Power | 605.6 hp / 451.6 kW |
| PTO Power (claimed) | 529.6 hp / 394.9 kW |
Fuel and DEF Capacity
| Item | Capacity |
|---|---|
| Fuel Tank | 440 gal / 1,665.4 L |
| DEF Tank | 66 gal / 249.8 L |
Because of this large capacity, the tractor can work long hours without frequent refueling.
Transmission – Power Shift or CVT Options
The T9.615 offers advanced transmission choices. Therefore, operators can select the best system for their operation style.
| Transmission Type | Details |
|---|---|
| Full Power Shift | 17-speed |
| CVT | Continuously Variable Transmission (optional) |
As a result, smooth power delivery and fuel efficiency improve across different workloads.
Mechanical Design – Built for Heavy Work
This tractor is engineered for strength and control. In addition, its articulated design improves maneuverability despite its size.
| Item | Specification |
|---|---|
| Drive System | Four-wheel drive |
| Steering | Articulated power steering |
| Final Drives | Planetary |
| Differential Lock | Automatic front and rear |
| Brakes | Hydraulic wet disc + engine brake |
| Cab | Standard cab with air-conditioning |
Therefore, operators enjoy both comfort and confidence during long workdays.
Hydraulics – High-Flow System for Large Implements
The hydraulic system supports modern, wide agricultural equipment. Moreover, multiple pump options allow customization.
| Item | Specification |
|---|---|
| Hydraulic Type | Closed center |
| Standard Flow | 42 gpm / 159.0 lpm |
| Optional Flow | 57 gpm / 215.7 lpm |
| Optional High Flow | 98 gpm / 370.9 lpm |
| Maximum Option | 113 gpm / 427.7 lpm |
Because of this capacity, the T9.615 handles complex implements with ease.
Rear Hitch and Drawbar
The tractor supports heavy implements used in large-scale farming.
| Item | Specification |
|---|---|
| Rear Hitch Type | IVN |
| Rear Lift Capacity (24″/610mm) | 22,750 lbs / 10,319 kg |
| Drawbar | Category 4 |
| Drawbar Option | Category 5 |
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| PTO Type | Independent rear PTO |
| PTO Speed | 1000 rpm |
| PTO Shaft | 1.75 inch |
| Engine RPM at PTO | 1000 @ 1811 rpm |
This configuration supports high-power PTO-driven equipment.
Dimensions and Weight
Despite its size, the T9.615 remains well-balanced and stable.
| Item | Specification |
|---|---|
| Wheelbase | 154 inches / 391 cm |
| Operating Weight | 46,340 lbs / 21,019 kg |
Electrical System
| Item | Specification |
|---|---|
| Electrical Ground | Negative |
| Charging System | Alternator |
| Charging Output | 240 amps |
| Optional Output | 330 amps |
| Batteries | 3 units |
| Battery Voltage | 12V |
| Battery CCA | 950 |
Why the Used New Holland T9.615 Is in High Demand
The Used New Holland T9.615 Tractor is popular for several reasons. First, it delivers over 600 horsepower. Next, it supports very large implements, reducing field passes. Moreover, its cab comfort and technology improve operator efficiency.
Therefore, it is ideal for:
-
Large commercial farms
-
Contractors and agribusiness companies
-
Wide-field cultivation and heavy tillage
