Massey Ferguson 435 Xtra – Reliable Utility Tractor for Global Farming
Massey Ferguson has long been trusted by farmers worldwide for building durable, easy-to-maintain tractors.
The Massey Ferguson 435 Xtra is part of the proven 400 Xtra Series, designed for daily agricultural work in a wide range of climates and conditions.
With a powerful Perkins diesel engine, simple mechanical systems, and strong hydraulics, this model is especially popular in developing agricultural markets.
Overview
| Item | Details |
|---|---|
| Model | Massey Ferguson 435 Xtra |
| Series | 400 Xtra Series |
| Tractor Type | Utility Tractor |
| Production Years | 2011 – |
| Manufacturer | Massey Ferguson |
| Assembly Location | Canoas, Brazil |
| Drive Options | 2WD / 4WD (MFWD optional) |
Series Map (Power Range):
-
425 Xtra – 48.5 kW
-
435 Xtra – 53.7 kW (72 hp)
-
440 Xtra – 61.1 kW
Engine
| Item | Specification |
|---|---|
| Engine Manufacturer | Perkins |
| Engine Options | 4.1L 4-cyl diesel / 4.4L 4-cyl diesel |
| Displacement | 4.1 – 4.4 liters |
| Rated Power | 72 hp |
| Rated Power (kW) | 53.7 kW |
| Fuel Type | Diesel |
| Cooling | Liquid-cooled |
The Perkins diesel engine is known for excellent fuel efficiency, strong torque at low RPM, and easy servicing—ideal for long working hours and remote regions.
Transmission
| Item | Specification |
|---|---|
| Standard Transmission | 8-speed sliding spur gear |
| Optional Transmission | 12-speed synchromesh |
| Clutch | Dry disc |
| Drive Configuration | 4×2 (2WD) / 4×4 MFWD (optional) |
The mechanical gearbox provides simple operation and high durability, making it suitable for operators of all experience levels.
Hydraulics & Hitch
| Item | Specification |
|---|---|
| Hydraulic Capacity | 11.1 gal (42.0 L) |
| Hydraulic Pressure | 2,466 psi (170 bar) |
| Pump Flow | 11.1 gpm (42.0 L/min) |
| Remote Valves | 1 |
| Rear Hitch Type | Category II |
| Rear Lift Capacity | 5,512 lbs (2,500 kg) |
Strong hydraulics allow stable operation with implements such as plows, harrows, planters, and loaders.
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| PTO Type | Rear |
| PTO Speed | 540 rpm |
| PTO Operation | Live |
| Optional | Independent PTO |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 93.3 in (236 cm) |
| Operating Weight | 6,327 lbs (2,869 kg) |
| Front Tires | 7.50-16 |
| Rear Tires (2WD) | 18.4-30 |
The balanced wheelbase and weight provide excellent traction and stability during field operations.
Capacities
| Item | Capacity |
|---|---|
| Fuel Tank | 26.4 gal (99.9 L) |
| Hydraulic System | 11.1 gal (42.0 L) |
Electrical System
| Item | Specification |
|---|---|
| System Voltage | 12 V |
| Ground | Negative |
Safety & Controls
-
Hydrostatic power steering
-
Hydraulic wet disc brakes
-
Two-post ROPS (Roll-Over Protective Structure)
-
Simple analog controls for easy maintenance

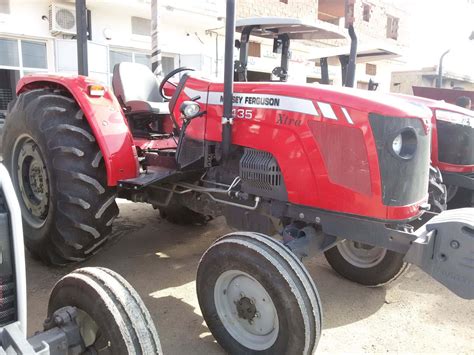

Photos
Why Choose the Massey Ferguson 435 Xtra?
-
Proven Perkins diesel reliability
-
Simple mechanical structure for easy repairs
-
Strong hydraulics and high rear lift capacity
-
Suitable for agriculture, transport, and loader work
-
Excellent availability of parts worldwide
This tractor is a practical, cost-effective solution for farmers and contractors looking for dependable performance with minimal downtime.
