Yanmar YM236 Compact Utility Tractor
Overview
The Yanmar YM236 is a compact utility tractor produced from 1984 onward (exact end year varies by market). Built in Japan, the YM236 sits above the YM226 in the YM200 series and delivers higher engine output and improved hydraulic performance. With a power shift transmission, live PTO, and strong Category I hitch capacity, the YM236 is well suited for mowing, tilling, loader work, and general farm operations.
Available in 2WD and 4WD (YM236D) configurations, this model remains popular in export markets due to its balance of power, durability, and simple mechanical design.
Engine
| Item | Specification |
|---|---|
| Manufacturer | Yanmar |
| Engine type | Diesel |
| Displacement | 1.0 L |
| Cylinders | 3-cylinder |
| Aspiration | Naturally aspirated |
| Rated engine power | 23 hp (17.2 kW) |
| PTO power (claimed) | 20 hp (14.9 kW) |
The Yanmar 3-cylinder diesel engine provides smooth operation, strong torque at low RPM, and excellent fuel efficiency—ideal for long working hours.
Transmission
| Item | Specification |
|---|---|
| Transmission type | Power shift |
| Number of speeds | 9-speed |
| Drive system | 2WD or 4WD |
| Safety | Two-post ROPS |
The power shift transmission allows easy gear changes under load, improving efficiency during loader work and field operations.
Power & Mechanical
| Item | Specification |
|---|---|
| Engine output | 23 hp |
| Drive | Two-wheel or four-wheel drive |
| Operator station | Open platform |
| PTO type | Live PTO |
The live PTO is a key upgrade over earlier YM models, allowing PTO operation independent of tractor movement.
Hydraulics
| Item | Specification |
|---|---|
| Hydraulic pressure | 2200 psi (151.7 bar) |
| Pump flow | 3.8 gpm (14.4 L/min) |
The hydraulic system provides sufficient flow and pressure for loaders, backhoes, and rear-mounted implements.
Hitch
| Item | Specification |
|---|---|
| Rear hitch type | Category I |
| Rear lift capacity (ends) | 1168 lb (529 kg) |
| Rear lift @ 24 in (610 mm) | 816 lb (370 kg) |
The strong lift capacity supports a wide range of standard agricultural implements.
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| Rear PTO | Live |
| PTO speed | 540 rpm (1.375″) |
The standard 540 rpm PTO ensures compatibility with common implements such as rotary mowers and tillers.
Dimensions & Tires
| Item | Specification |
|---|---|
| Operating weight | 1903–2066 lb (863–937 kg) |
| Front tires | 5.00-15 |
| Rear tires (2WD) | 11.2-24 |
The YM236 offers excellent stability while remaining compact enough for maneuvering in tight farm environments.

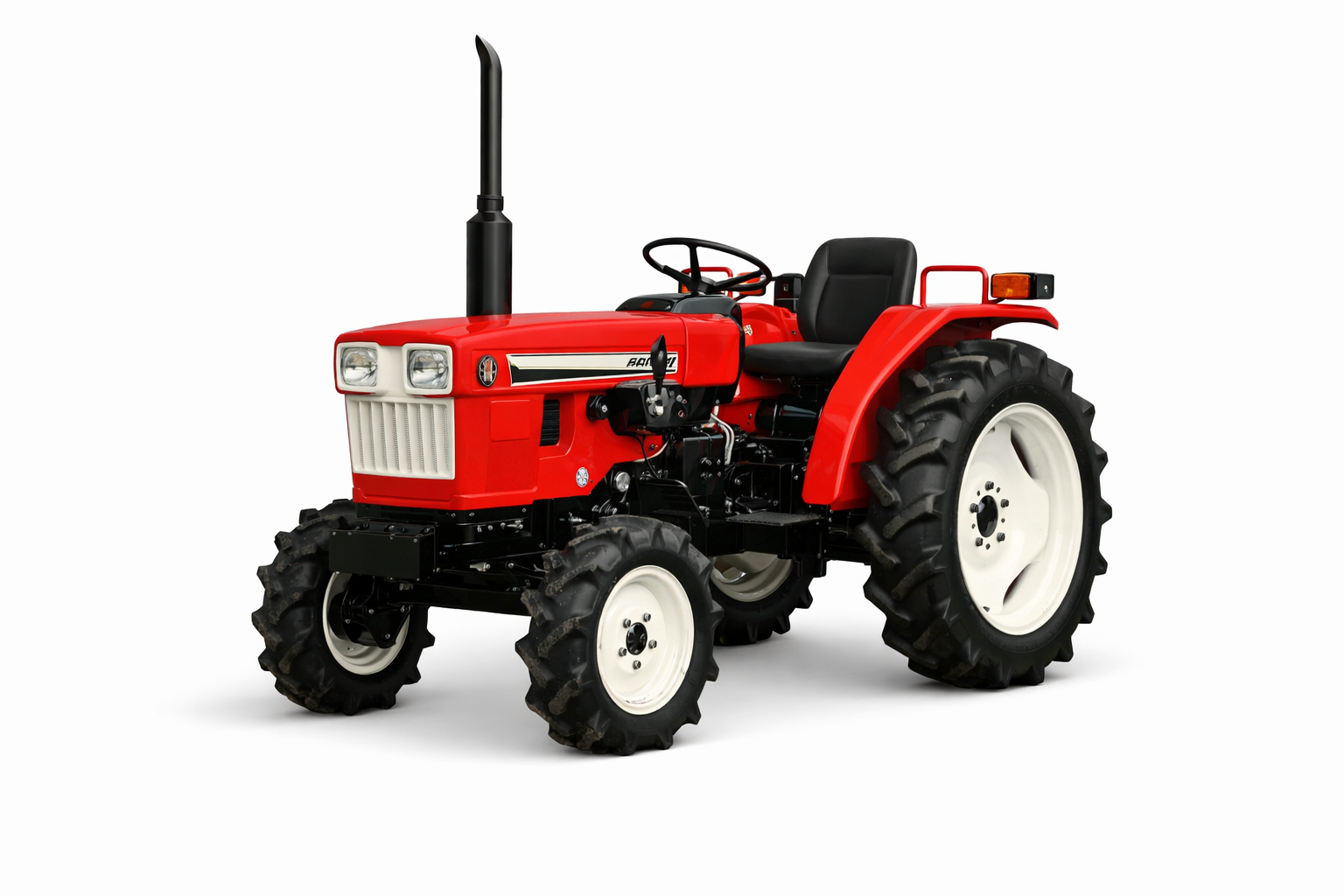

Photos
Photos may show the YM236 in both 2WD and 4WD configurations. Appearance varies depending on attachments, tires, and market specifications.
Why Choose the Yanmar YM236?
-
More powerful 23 HP Japanese diesel engine
-
Power shift transmission for easy operation
-
Live PTO for improved productivity
-
Strong hydraulics and Category I hitch
-
Proven durability for export markets worldwide
